• JP8 – Powers COM 1(A)
• JP10 – Powers COM 4(D)
• JP9 – Powers COM 3(C)
• JP3 – CMOS
Pin assignments: 1 & 2
This is used for powering up stand alone Customer Displays that do not have the
external power supply adapter.
Please note that a printer should not be hooked up with a COM Port that is powered up
PT 9000/9000m PT 9150

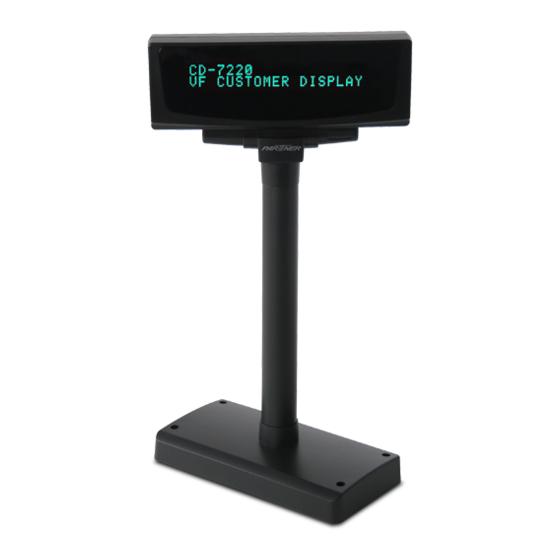

CD-7220 Power & Setup
12 Volts
3 & 4
Off (Default)
5 & 6
5 Volts
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Partner CD-7220
Summary of Contents for Partner CD-7220
- Page 1 PT 9000/9000m PT 9150 CD-7220 Power & Setup • JP8 – Powers COM 1(A) • JP10 – Powers COM 4(D) • JP9 – Powers COM 3(C) • JP3 – CMOS Pin assignments: 1 & 2 3 & 4 5 & 6 This is used for powering up stand alone Customer Displays that do not have the external power supply adapter.
- Page 2 CD-7220 Quick-Setup 1) Choose com port. 2) Baud Rate that is desired. CD-7220 has a default of 9600. 3) Select Parity. CD-7220 is set to N,8,1 4) Command Type that the pole display unit communicates with the software or Apps. UTC Standard is the standard for most Epson and other pole displays.
