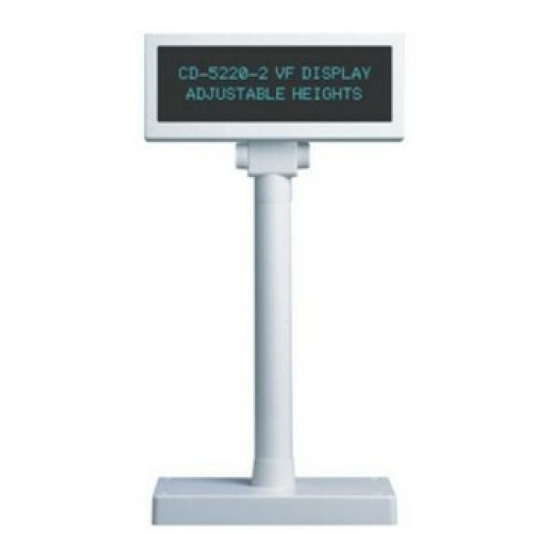

Vacuum fluorescent customer display
Hide thumbs Also See for CD-5220:

Advertisement

Quick Links

User's Manual
Models CD5220 / CD6220
Vacuum Fluorescent Customer Display

Advertisement

loading
Need help?

Need help?

Do you have a question about the CD-5220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Partner CD-5220

Summary of Contents for Partner CD-5220

  • Page 1 User’s Manual Models CD5220 / CD6220 Vacuum Fluorescent Customer Display...

  • Page 2: Table Of Contents

    INDEX FEATURES ... 3 TYPE CLASSIFICATION... 4 GENERAL SPECIFICATIONS... 5 INTERFACE SPECIFICATIONS ... 6 FUNCTION SELECTION ... 9 COMMAND... 10 CHARACTER SET ... 16 INSTALLATION GUIDE ... 21 CD5220 customer display...

  • Page 3: Features

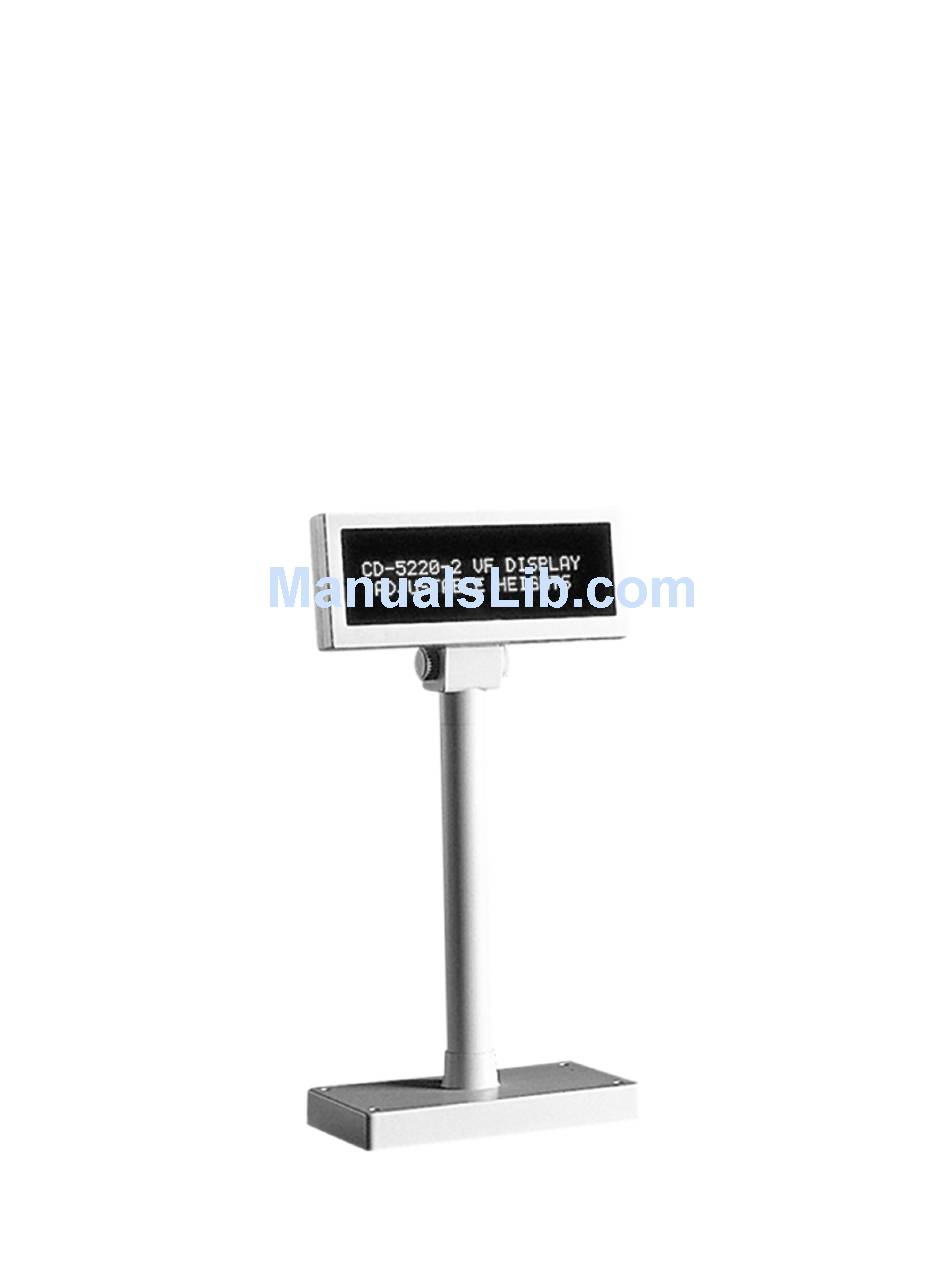

    CD5220 customer display 1. FEATURES 40 Characters (20 columns x 2 lines). Easy to read blue-green fluorescent color and large characters. Adjustable viewing angle of 8-35 and rotation angle of 270 . Two segment poles provide 4 adjustable heights. DIP switch selectable emulation modes: CD5220 AEDEX ADM787...

  • Page 4: Type Classification

    2. TYPE CLASSIFICATION CD5220 No Type name I Mode No. II Interface III Base section IV Power input V Power adapter IV Pass through function CD5220 customer display Type name Description CD5220 CD5220 display CD6220 CD6220 display Serial port (RS232C) Parallel port (Centronics) Rectangle base Circular base...

  • Page 5: General Specifications

    3. GENERAL SPECIFICATIONS ITEM 1 Display method 2 Number of character 3 Display color 4 Luminance 5 Character type 6 Character font 7 Character size 8 Character pitch 9 Power supply 10 Power consumption 11 MTBF-power on time Dimensions (mm) 13 Viewing angle 14 Rotation angle 15 Weight...

  • Page 6: Interface Specifications

    4. INTERFACE SPECIFICATIONS 4.1. Communication 4.1.1. Serial port (RS232C) communication (a) The interface specification are based on EIA RS232C baud rate 9600 or 4800 bps ( selectable by DIP switch, refer Table 4-7) 8 data bits, no parity, 1 or more stop bits (RS232C) ERIAL PORT COMMUNICATION FLOW...
  • Page 7 C. RS232C interface to printer cable Printer side connector pin assignment Connector type: D-sub 25 pin (Male) Signal direction RXD From printer to PC/Host Printer status data TXD From display to printer From printer to display From PC/Host to printer PC/Host ready signal DTR From PC/Host to printer PC/Host ready signal DSR From printer to display CD5220 customer display...
  • Page 8 4.2 Serial port interface for rectangle basic section A. Serial port interface connector position for rectangle basic section FRAME GND 5V or 12v RS232C to printer connector RS232C to PC/host connector Power input connector B. Power input Connector type: DC JACK (5.5/2.1) C.

  • Page 9: Function Selection

    5. FUNCTION SELECTION 5.1 Baud rate SW number SW1 Notes: SW1 is ignored when the baud rate is stored to the EEPROM. Baud rate will be referred to the EEPROM baud rate status. 5.2 International character set SW number SW2 SW3 SW4 SW5 International character OFF OFF OFF OFF U.S.A.

  • Page 10: Command

    6. COMMAND 6.1 PTC standard mode command list Command Code description(hex) Function description ESC DC1 1B 11 ESC DC2 1B 12 ESC DC3 1B 13 ESC Q A...CR 1B 51 41 [n ]x20 0D ESC Q B…...CR 1B 51 42 [n ]x20 0D ESC Q D...CR 1B 51 44 [n ]xm 0D m<40 ESC [ D...
  • Page 11 Set international font set (Table 6-2) n International font set international font set U.S.A. NORWAY GERMANY SWEDEN ITALY DENMARK I JAPAN DENMARK II U.K. SLAVONIC FRANCE RUSSIA SPAIN Reserved 6.2 UTC standard mode command list Command Code description (hex) Function description ESC d 1B 64 6.3 UTC enhanced mode command list...
  • Page 12 6.4 AEDEX mode command list Command Code description (hex) ! # 1 ...CR 21 23 31 [data x 40]0D upper line display ! # 2 ...CR 21 23 32 [data x 40]0D bottom line display ! # 4 ...CR 21 23 34 [data x 40]0D upper line message scroll ! # 5 ...CR 21 23 35 hh ‘:’...
  • Page 13 6.6 DSP-800 mode command list Command Code description (hex) Function descriptions EOT SOH I n ETB 04 01 49 n 17 EOT SOH P n ETB 04 01 50 n 17 n=31-58 EOT SOH C n m 04 01 43 n m 17 31<= n<=m<=58 EOT SOH S n ETB 04 01 53 n 17 n=31-35...
  • Page 14 6. 7 EPSON Esc/pos command list Command Code description(hex) Function description US LF 1F 0A US CR 1F 0D US B 1F 42 US $ x y 1F 24 x y x=1-20,y=01,02 US X n 1F 58 n 01<=n<=04 US E n 1F 45 n n=00-ff ESC @...
  • Page 15 CD5220 customer display Set international font set for ESC/pos n International font n International font U.S.A. SPAIN FRANCE JAPAN GERMANY NORWAY U.K. DENMARK II DENMARK I SLAVONIC SWEDEN RUSSIA ITALY Reserved Table 6-11 Select code table for ESC/pos n International font set (80H-FFH) Page 0,(PC437:U.S.A.,standard Europe) Page 1,(Katakana for Japan ) Page 2,(PC850:multilingual)

  • Page 16: Character Set

    7. CHARACTER SET A. Control code set U.S.A font set CD5220 customer display CODE CODE NULL BS,MD8 SLE1 RS,SLE2 US,SF2...
  • Page 17 International character selection (Indicated character selection by dip switch or command) International FRANCE GERMANY U.K. DENMARK I SWEDEN ITALY SPAIN JAPAN NORWAY DENMARK II SLAVONIC RUSSIA D. PC-437 Standard Europe international font set CD5220 customer display ASCII CODE 23 24 40 5B 5C 5D 5E 60 7B 7C 7D 7E...
  • Page 18 E. PC-850 Multilingual international font set F. PC-860 Portuguese international font set G. PC-863 Canadian French international font set CD5220 customer display...
  • Page 19 H. PC-865 NORDIC (international font set) SLAVONIC Font set RUSSIA font set CD5220 customer display...
  • Page 20 K. Katakana font set L. PC-858 M. WPC1252 CD5220 customer display...

  • Page 21: Installation Guide

    CD5220 customer display 8. INSTALLATION GUIDE...
