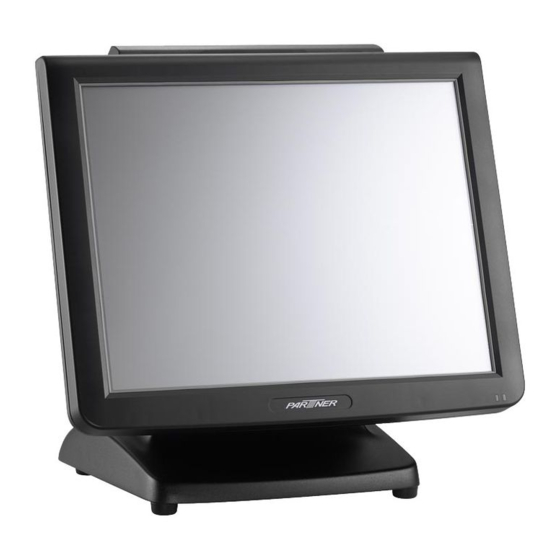

SP-800
Unpacking and Setup Instructions

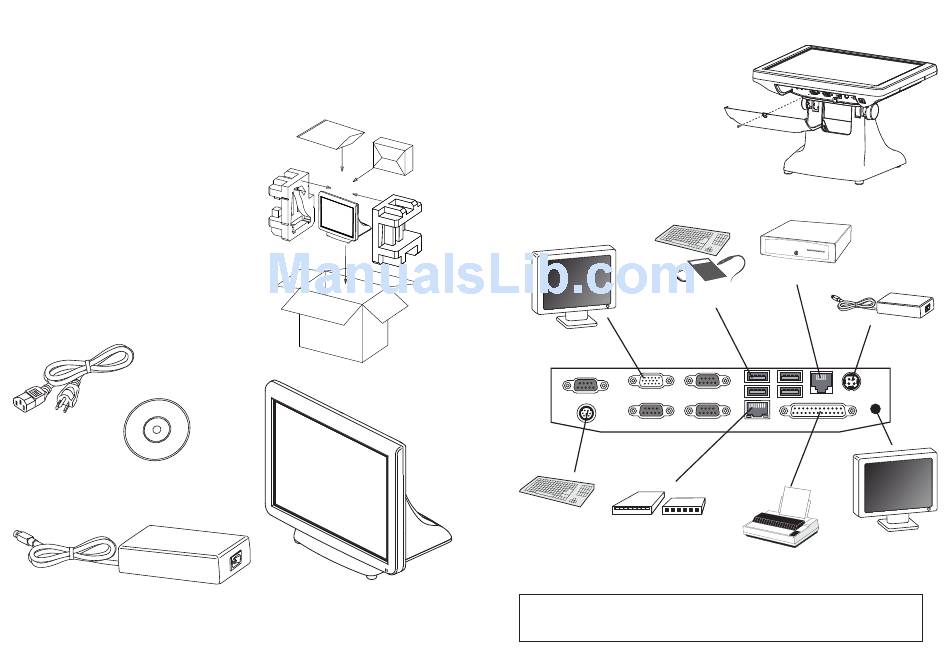

Step1: Unpack the box and check the contents.
The SP-800 and its accessories are packed
in a cardboard carton with foam padding
for protection during shipment. Carefully
unpack the system and keep the packing
materials for future use.
Verify that all of the items shown below
are included in the box. If an item is
missing or appears to be damaged, contact
your Partner Tech dealer immediately.
Power Cable
Driver CD with drivers and
the user manual PDF file.
Adapter
PE bag
Accessories box
EPE/R
EPE/L
Carton
SP-800
Step2: Connect the peripheral devices
Remove the screw from the IO
panel cover and remove the cover.
The IO panel is at the bottom of the
LCD panel.
Caution: Be sure to connect the
peripheral devices to the appropriate
ports, as shown below. A device
may not function correctly if it is
connected to the wrong port.
USB Compliant
devices
Monitor
Keyboard
MR HS AA CD
OH
SD RD TR
ADSL modem or router
Note: Drivers and utilities needed for SP-800 are included in the "User
Manual and Driver CD".
Cashdrawer
Adapter
Monitor Power
Printer
Advertisement
Table of Contents
Related Manuals for Partner SP-800
Summary of Contents for Partner SP-800
- Page 1 Driver CD with drivers and the user manual PDF file. Keyboard MR HS AA CD SD RD TR ADSL modem or router Monitor Power Printer SP-800 Adapter Note: Drivers and utilities needed for SP-800 are included in the “User Manual and Driver CD”.
- Page 2 Step 4: Power on the SP-800 A. Connect the power cable to the power socket located on the right side of Press the power button on the right underside of the SP-800. the SP-800 I/O panel. B. Plug the power cable into an electrical outlet.
