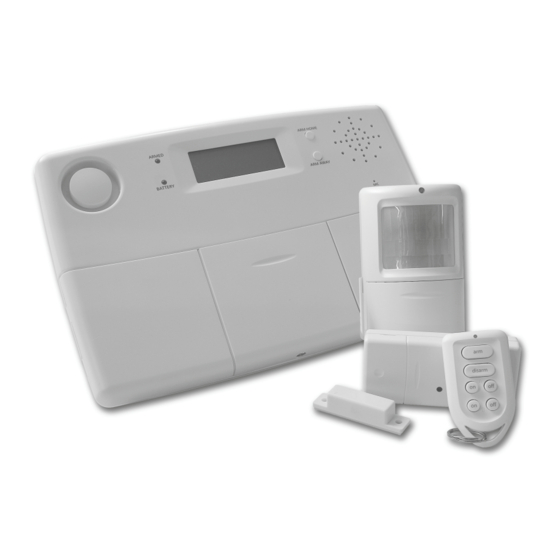

USERS' MANUAL
PROTECTOR+ SYSTEM AND BASE CONSOLE INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROTECTOR+ and is the answer not in the manual?

Questions and answers

Related Manuals for X10 PROTECTOR+

Summary of Contents for X10 PROTECTOR+

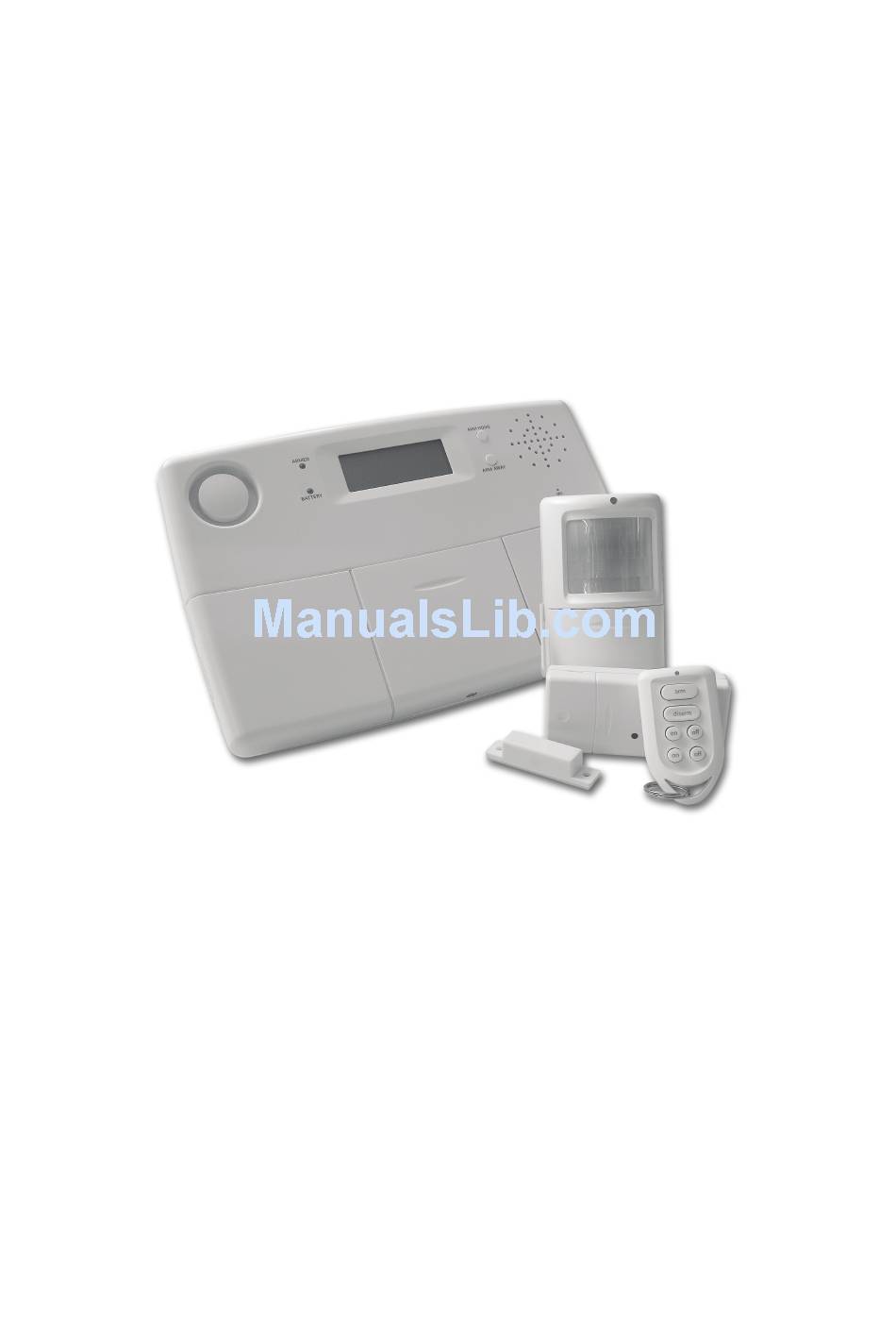

  • Page 1 USERS’ MANUAL PROTECTOR+ SYSTEM AND BASE CONSOLE INSTRUCTIONS...
  • Page 2 6.2 Panic alarm 6.3 What happens when the alarm is triggered 6.4 Disarming the system 6.5 Error messages 7. Prevention and Comfort with X10 Home Automation 7.1 Introduction 7.2 Addressing the modules 7.3 Installing Lamp/Dimmer and Appliances Modules (*optional) 7.4 Alarm functions of the Lamp/Dimmer and Appliances Modules 7.5 Comfort functions of the KR18 Key Chain Remote Control...
  • Page 3 10.1 Checking the status of the security system 10.2 Installing an extra siren (PH7208 / SH10) 10.3 Using an external universal siren 10.4 Transceiver function (RF to X10 PLC converter) 10.5 Home Automation functions at a glance 10.6 Basic Address for Home Automations functions 10.7 Thermostats, (remote) Temperature Control...
  • Page 4 Status/feedback functionality with both lamp and remote chime (multi-tone). • When triggered, zones 27-32 can give a programmable ON/OFF command to defined X10 addresses. • 7 days timer; create events to occur only selected week, weekly or random (14 timer points).
  • Page 5 Start DOWN? Used to initially enter the menu and to move down through the items. (17) ON - Switch on a X10 Module (see 7.7). (18) OFF - Switch off a X10 Module (see 7.7). (19) OK - Confirm setting.
  • Page 6 LCD Display 1. Zone numbers Every sensor represents a so-called zone in the system. There are 30 zones for wireless sensors (numbers 1-30 on the display) and 2 zones for wired sensors (numbers 31 and 32 on the display). Zone numbers on: Door or window is open. Zone number flashing slowly: There is a problem with the sensor (6.5).
  • Page 7 Mounting the console onto the wall The console can be mounted onto the wall using two screws. On the back of the console you will find two slot holes (heart to heart distance 96mm). Fitting screws are included with the set. Place the console on a flat surface If you choose not to mount the console, you can attach the rubber feet-caps (included) to the back of the console.
  • Page 8 5. NEW PIN Change your PIN code (8.3). 6. MEMORY CLEAR Clear all sensors, remote controls, thermostats, timers or settings (8.2). Sub-menu: CLEAR ALL SENSORS Remove a registered sensor. CLEAR ALL REMOTES Remove a registered remote control. CLEAR ALL TIMERS Remove all timer settings at once. CLEAR ALL THERMOSTATS Remove all timer settings at once.
  • Page 9 3. Installing remote controls 3.1 Key Chain Remote Control KR18 1. Control indicator Comes on when the remote control sends a radio signal when keys are pressed. When the indicator blinks only weakly, the batteries have to be replaced. 2. Arm Switches on the Security System in the Arm Away Mode.
  • Page 10 On the piece of paper behind the plastic cover of the text window, you can note which Home Automation Modules can be controlled with each key. 7. House Code Switch Used for setting the X10 system Address. 3.2.1 Using the Comfort Remote Control IMPORTANT: When inserting the batteries, the switch should not be in setting 2!
  • Page 11 If you have more than 2 remote controls installed, it will show e.g. RMOT 3 SET, RMOT 4 SET, … RMOT 16 SET . You can register up to 16 remote controls. 6. Repeat step 5 for every remote control you wish to register. 7.
  • Page 12 4.1.2 Using the Door/Window Sensor 1. Open the casing by taking the two parts apart.. 2. Insert batteries (2xAAA, alkaline) into the battery compartment. Observe polarity. 3. Set the switch for entry delay (5) to MIN when you have installed the sensor on a window and on MAX when the sensor is installed on a door.
  • Page 13 4.2 Motion Detector MS18 1. Control Indicator - Lights up when a signal is transmitted. 2. PIR 3. Tamper contact. 4. Battery compartment. 5. Sensitivity switch 1/2 - In setting 1 the sensor will instantly react to movement, in setting 2 the sensor is less sensitive and will only react after registering multiple movements.
  • Page 14 SC28 Base Console will send X10 Home Automation Messages on the power line to turn On or Off X10 modules connected to your heaters or boiler. Besides heating the Thermostat can be used for cooling as well.
  • Page 15 5. Setting up the Security Console (SC28) 5.1 Setting the clock 1. To access the menu, press either the menu UP ? o r DOWN ? b utton. The display now shows ENTER PIN . 2. Enter your 4-digit PIN code (factory setting 0000. See 8.3 for changing the PIN code). The display is cleared and shows a * for each number entered.
  • Page 16 4. Use the menu buttons UP/DOWN? to go to menu item 4. MESSAGE . Press OK to select this menu item. You can also go to this menu item directly by pressing a 4 on the number pad. 5. Press 1 for RECORD . 6.
  • Page 17 7. Prevention and comfort - ‘Home Automation’ 7.1 Introduction X10 Home Automation makes your home more comfortable, saves energy and offers security, both when you are at home and away. For some people Home Automation means setting the lights with the same remote control they use for the TV;...
  • Page 18 7.2 Addressing your modules An address can be set for every X10 module. This address consists of a HOUSE CODE (A-P) and a UNIT CODE (1-16). The HOUSE CODE of all your components needs to be set to the same letter code (Note: Check also 10.6 for more info before setting the addresses).
  • Page 19 7.7 Comfort functions of the security console You can also control the modules using the console. If you do not see a menu item, the console is in HOME CONTROL mode. The display shows HOME CONTROL . To control a module with Unit Code 1, press “1” followed by “ON” or “OFF”.
  • Page 20 7.9 Clearing the timer settings 1. To access the menu, press the menu UP or menu DOWN ? b utton. The display now shows ENTER PIN. 2. Enter your 4-digit PIN code (factory setting 0000. See 8.3 for changing the PIN code). The display is cleared and shows a * for each number entered.
  • Page 21 1. To access the menu, press the menu UP? or menu DOWN? button. The display now shows ENTER PIN . 2. Enter your 4-digit PIN code (factory setting 0000). For every digit entered, a * will appear. 3. When the PIN code has been entered correctly, the word INSTALL will show up on the display. 4.
  • Page 22 Zone number followed by ON or OFF the respective Zone number around the edge flashes to indicate it has been set to send a X10 Home Automation command which is either ON or OFF depending on the choice made. 9.7 Deregistering a Door/Window or Motion Sensor 1.
  • Page 23 When the system is disarmed, the module will also be switched off. Example: You can connect a table lamp to this X10 module. If the system is activated, this lamp is always turned on.
  • Page 24 When the Security Base Console is in "DISARM" or "ARM HOME" mode, it will turn On or Off the X10 module connected to the heater or boiler depending on the ambient temperature and the comfort set point set to the thermostat.
  • Page 25 Temperature levels and settings in a glance: LEVEL USED BY Ambient temperature Measured by individual thermostat always Thermostat Comfort level Set individually per thermostat normal mode Console Comfort level Set in console, per thermostat T1–T4 timed events only Console Economy level Set in console, applies for all Thermostats armed / timed / phone Console Frost level...
  • Page 26 3. If your PIN is correct, you will hear ‘PIN accepted’. If your PIN is incorrect, you will hear ‘Error’. 4. Press 4 *: The X10 module with Unit Code 4 will be switched on. You will hear ‘4 ON’ to confirm.
  • Page 27 Key Chain Remote Control KR18 – 2x CR2016 batteries A new KR18 contains fully charged batteries. If the indicator light on the KR18 is not very bright, the • batteries should be replaced. Open the remote control (back). Use CR2016, 3V lithium batteries (2x). •...
  • Page 28 Check whether the indicator of the remote control flashes when you press the button. If necessary replace the battery/ies. When using multiple phases in your house, you may need to couple these phases for X10 signals. What if you cannot register the SH600 Comfort Remote Control with the console? Remove the batteries from the remote control.
