1. The surveillance system

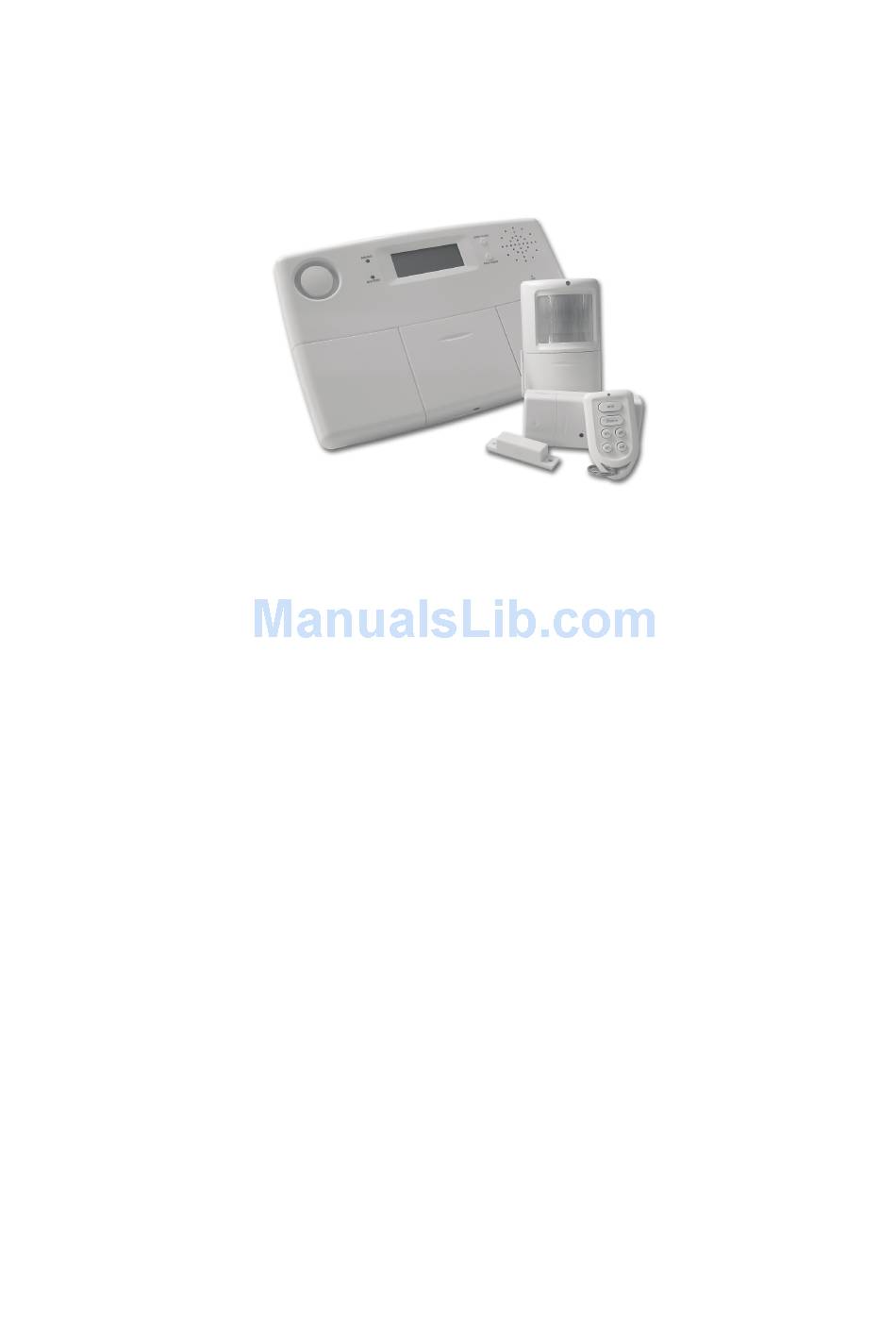

The contents of the Home Security Protector+ system:
This kit is an effective security system for your home. In this kit you can find the following components:
1. Security Base Console SC28
2. Motion Detector MS18
3. Door/Window Sensor DS18
4. Key Chain Remote Control KR18
5. Lamp/Dimmer Module LM12 or Appliance Module AM12
6. Comfort Remote Control SH600
7. AC power supply adapter PS18 for Security Base Console
8. Accessories: batteries, telephone wire, telephone plug
9. Optional accessories
Note: Refer to label for kit content. All components of the system are available separately and are compatible
with the complete system.
1.1 Important Properties and Features
Receive a telephone message in case of an emergency, wherever you are. The built-in telephone dialler
•
(Tone and Pulse) can dial up to six different telephone numbers.
The person called receives a spoken message indicating a burglary, emergency alarm or mains power
•
failure is in progress. 3 different alarm messages: custom recordable (burglary) message + fixed multi
lingual emergency and power failure message. Use the phone to listen to what is causing the alarm.
Intelligent sensor control: the console checks functions and battery status of it's sensors.
•
Multi lingual menu control makes installation and configuration easy.
•
Register up to 30 wireless sensors with the console. Includes 2 inputs for wired sensors (zone 31+32).
•
Selectable ALWAYS sensors for emergency purposes.
2 Arm Home Modes by pressing ARM HOME once or twice. ARM HOME once, only D/W sensors will be
•
armed. Second key press arms also Motion Sensors in zones 1-16.
Definable entrance delay on Motion Sensors registered to zones 15 and/or 16
•
Can register a mix of up to 16 wireless remote controls (KR18/KR28/SH600) and/or emergency sensors.
•
Silent alarm possible (no siren). Additional PH7208 siren and/or SH10 Remote Chime available.
•
Dial in: by calling the system, you can control the system remotely and check the status (speech
•
feedback). The Base Console also lets control Home Automation functions and Temperature settings.
Status/feedback functionality with both lamp and remote chime (multi-tone).
•
When triggered, zones 27-32 can give a programmable ON/OFF command to defined X10 addresses.
•
7 days timer; create events to occur only selected week, weekly or random (14 timer points).
•
Prevention with so called "LIVED IN LOOK": Your lights are switched ON and OFF in such a way that it
•
appears as if you are home, in respond to the 7 days timer.
Can use up to 4 Thermostats TS10. Temperature points to create e.g.: Comfort, Economy and Frost Level.
•
Energy saving: By pressing ARM AWAY once, Thermostat Comfort Settings remain, by pressing ARM
•
AWAY twice thermostats controls are set to Economy. Third press will activate Frost level control.
Dial-in and selecting Thermostat will give the option to set Thermostat 1 thru Thermostat 4 without
•
disarming the system.
Events log (latest 40 security events).
•
Rechargeable batteries in console.
•
