3. Installing remote controls

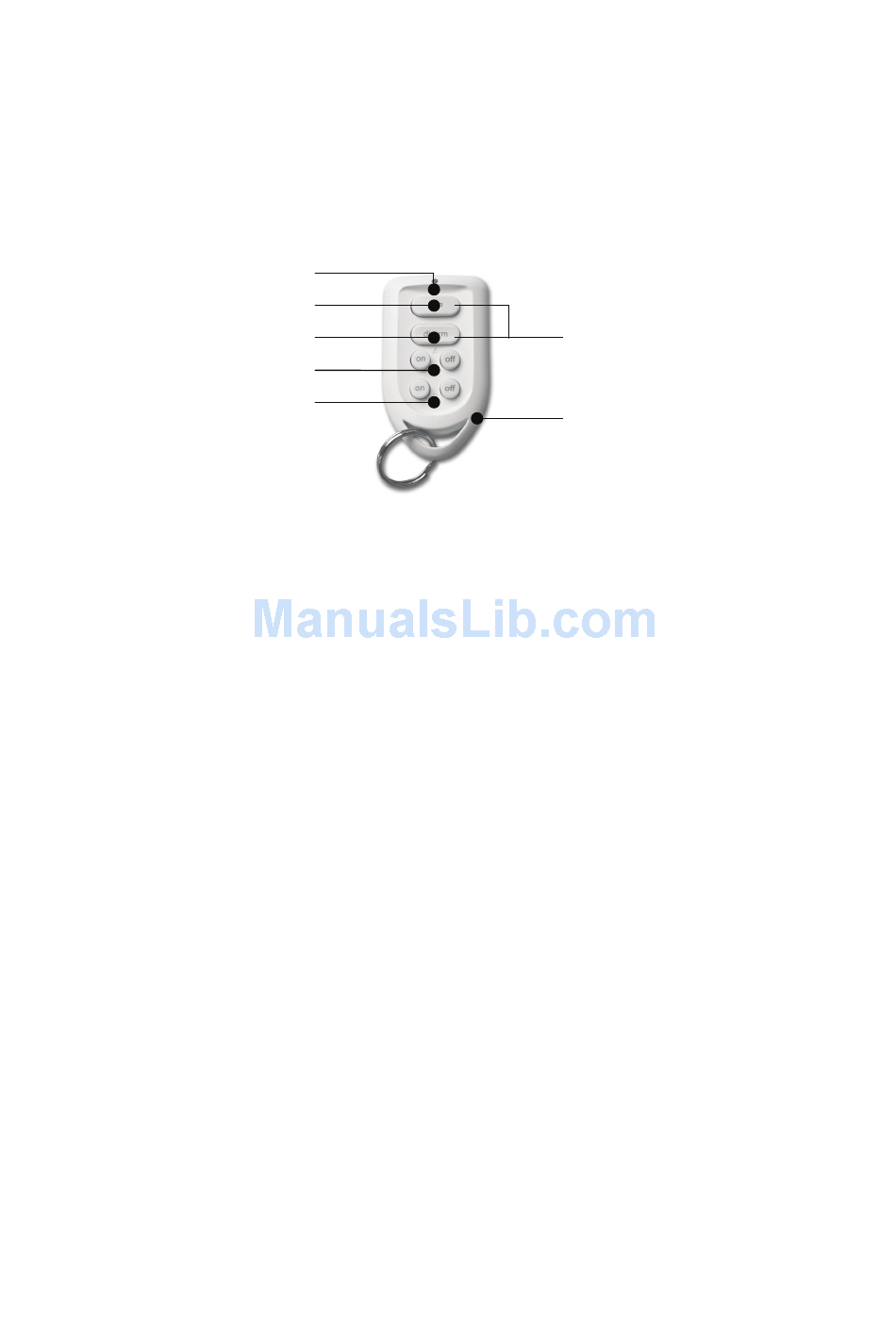

3.1 Key Chain Remote Control KR18
1. Control indicator
Comes on when the remote control sends a radio signal when keys are pressed. When the indicator blinks only
weakly, the batteries have to be replaced.
2. Arm
Switches on the Security System in the Arm Away Mode. All sensors are activated.
3. Disarm
Switches off the Security System.
4. A On / Off
Switches on / off the lights connected to the Lamp Module set to the Home Automation Base Address.
5. B On / Off
Switches on / off the lights connected to the Lamp Module set to the Home Automation Base Address +1.
6/7. Panic
When both keys ARM (2) and DISARM (3) are pressed simultaneously, an immediate alarm is initiated by the
Security System.
8. Battery holder
The back of the remote can easily be opened by taking the two parts apart. Use 2xCR2016, 3V lithium batteries.
3.1.1 Using the Key Chain Remote Control
1.) Batteries
A new KR18 contains batteries for default.
2.) Initializing the KR18
Press the ARM key for more than 3 seconds and release the button; the indicator blinks. Release the button.
The remote control has now chosen a unique code, which can be registered with your console.
When pressing the ARM button the LED should flash quickly a few times. When the LED lights up and stays lit,
you need to re-initialize the KR18
3.1.2 Registering the Key Chain Remote Control with the Console
1. To access the menu, press either the menu UP ? o r DOWN ? b utton. The display now shows ENTER PIN .
2. Enter your 4-digit PIN code (factory setting 0000. See 8.3 for changing the PIN code). The display is cleared
and shows a * for each number entered.
3. When the PIN code has been entered correctly, the word INSTALL will show up on the display.
4. Press OK. The display now reads INSTALL ZONE .
5. Press the ARM button on your key chain remote control. The console will beep to confirm. The display will
read RMOT 1 SET .
If you have more than 1 remote control installed, it will show e.g. RMOT 2 SET, RMOT 3 SET, ... RMOT 16 SET . You can
register up to 16 remote controls.
6. Repeat step 5 for every remote control you wish to register.
7. Press CLEAR to go back to the first menu item. . Press CLEAR again to quit the menu. To confirm your
choice, press 1 for Yes or 2 for No. If you choose Yes, you will quit the menu. If you choose No, you go back to
the first menu item. .? ?
You can also remove remote controls from the menu, e.g. when you have lost a remote control. This method is
described in 8.2.
