Connection Options - NewTek TriCaster 40 User Manual

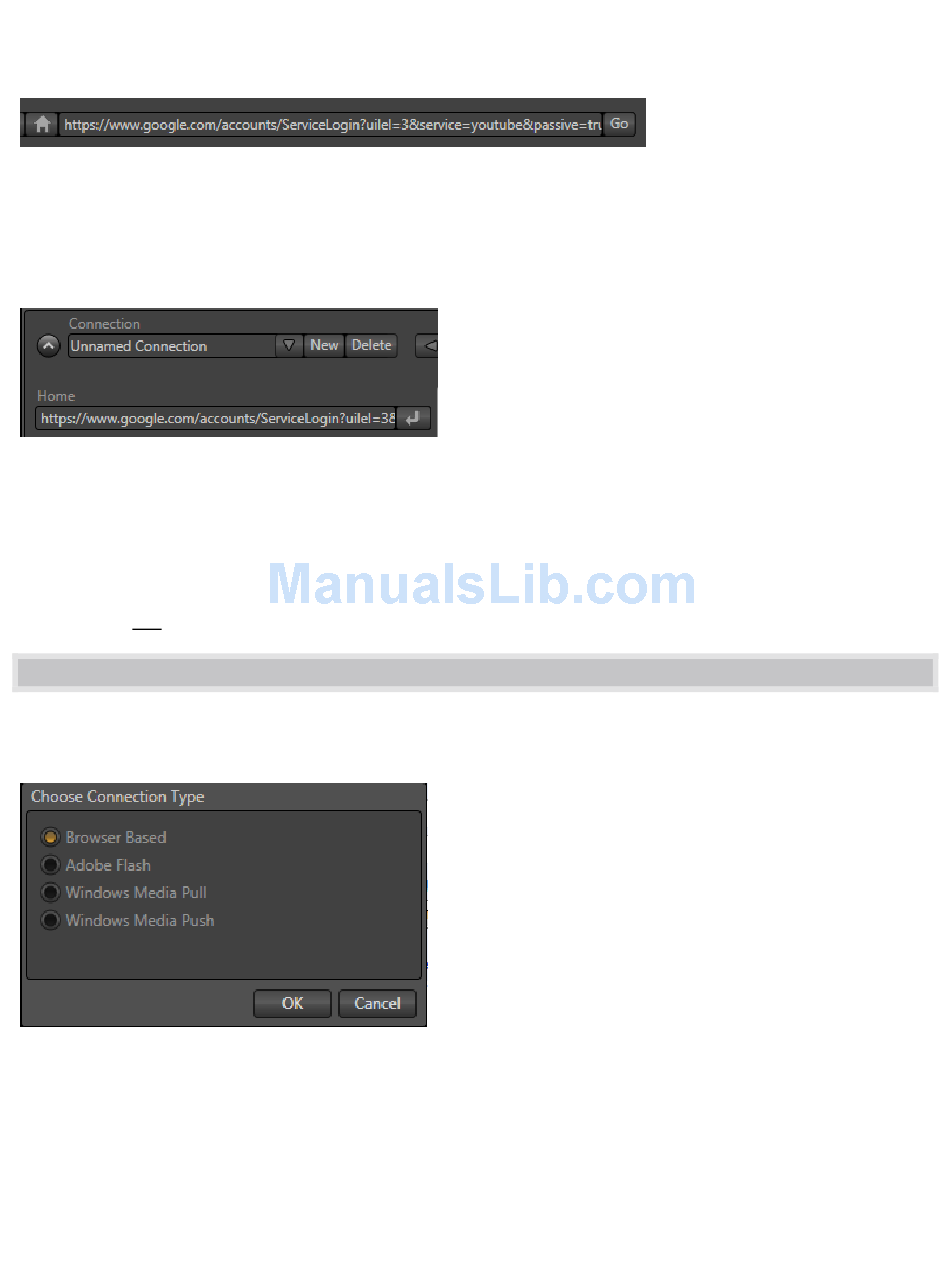

Figure 80
Recall that this is not a general-purpose web browser. It is here to let you access the main account page you use
for a specific Connection, rather than a 'landing page' for everyday browsing. The Home Page for one Connection
will often be different than that of another.
Figure 81
The URL field above the viewport always displays the current URL (web page address). A second URL field
(labeled Home) is located below. This is the Home Page for the current Connection. (To copy the address for the
currently displayed webpage into the Home field for the Connection, click the Return button at right of the Home
field – Figure 81). Afterward, clicking the Home button in the navigation control group at upper center will
return you to this location.
5.3

CONNECTION OPTIONS

The process of configuring a Connection (preset) begins with clicking New to create it. This opens a dialog
entitled Choose Configuration Type. The options available are as shown in Figure 82.
Figure 82
After selecting a Connection Type and clicking OK, the Name field in the main Configure Stream Connection panel
is highlighted, to encourage you to supply a descriptive name for the preset.
55
