NETWORK AUDIO
Some network video sources (notably 3Play output and Apple® AirPlay
sound. The Net 1 and Net 2 control groups in the External Audio tab (discussed a bit earlier in this section) let
you the settings for these audio sources.

2.3.3 CONFIGURE OUTPUT

We discussed video output connections back in Section 2.1.3 but, as for input sources,
TriCaster provides configuration controls for its outputs right in the Live Desktop.

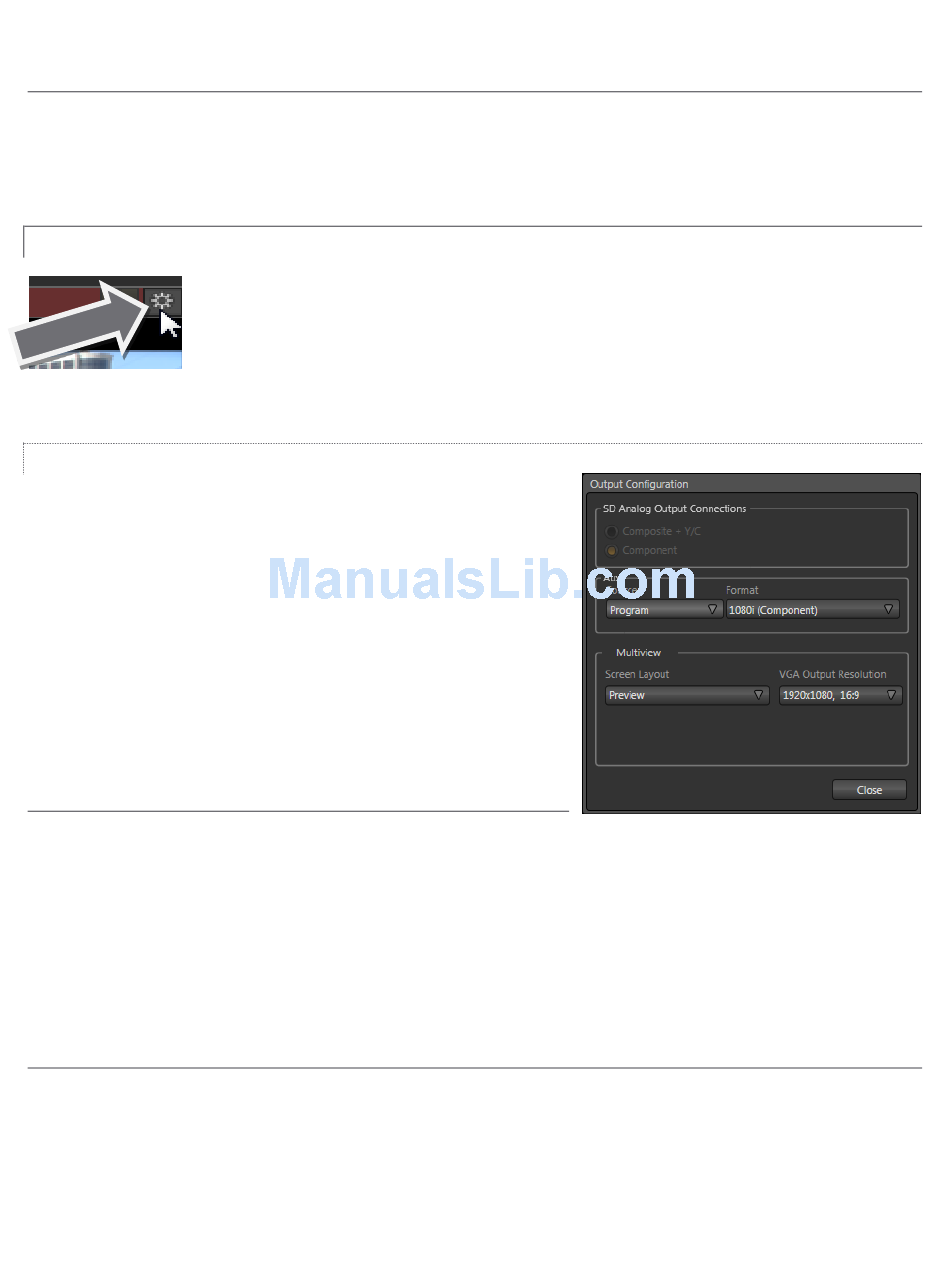

Figure 19
VIDEO
TriCaster provides several outputs downstream from the Switcher.
These are Program, Aux, and Multiview. The first two of these are
connected to BNC connectors in the VIDEO OUT group on
TriCaster's front plate. Multiview is a supplementary monitoring
option supplied by one of the monitor ports on the rear. (See
Section 2.1 for more detail on making connections.)
Configuration settings for all three outputs are located in the
Output Configuration panel accessed by clicking the gear icon at the
top right corner above the main Program monitor.
OUTPUT 1 (PROGRAM)
We mentioned earlier that the video standard (multi-standard model) and format supplied by the
Program output is determined by the session setting you decided on (see Section 2.3.1).
For an HD session, the only suitable connection is Component. However, SD sessions do support several
optional connection types. The SD Analog Connections control group in the Output tab allows you to choose
either Composite + Y/C (both can be active at one time, using the appropriately marked connectors in the VIDEO
OUT group) or, alternatively a single Component connection.
AUX
Toward the middle of the Output tab, you'll see controls that let you choose the source, screen aspect and
connection type for the Aux output (labeled Row 2 in the VIDEO OUT connector group on TriCaster's front
panel).
®
video clips) can include embedded
Figure 20
