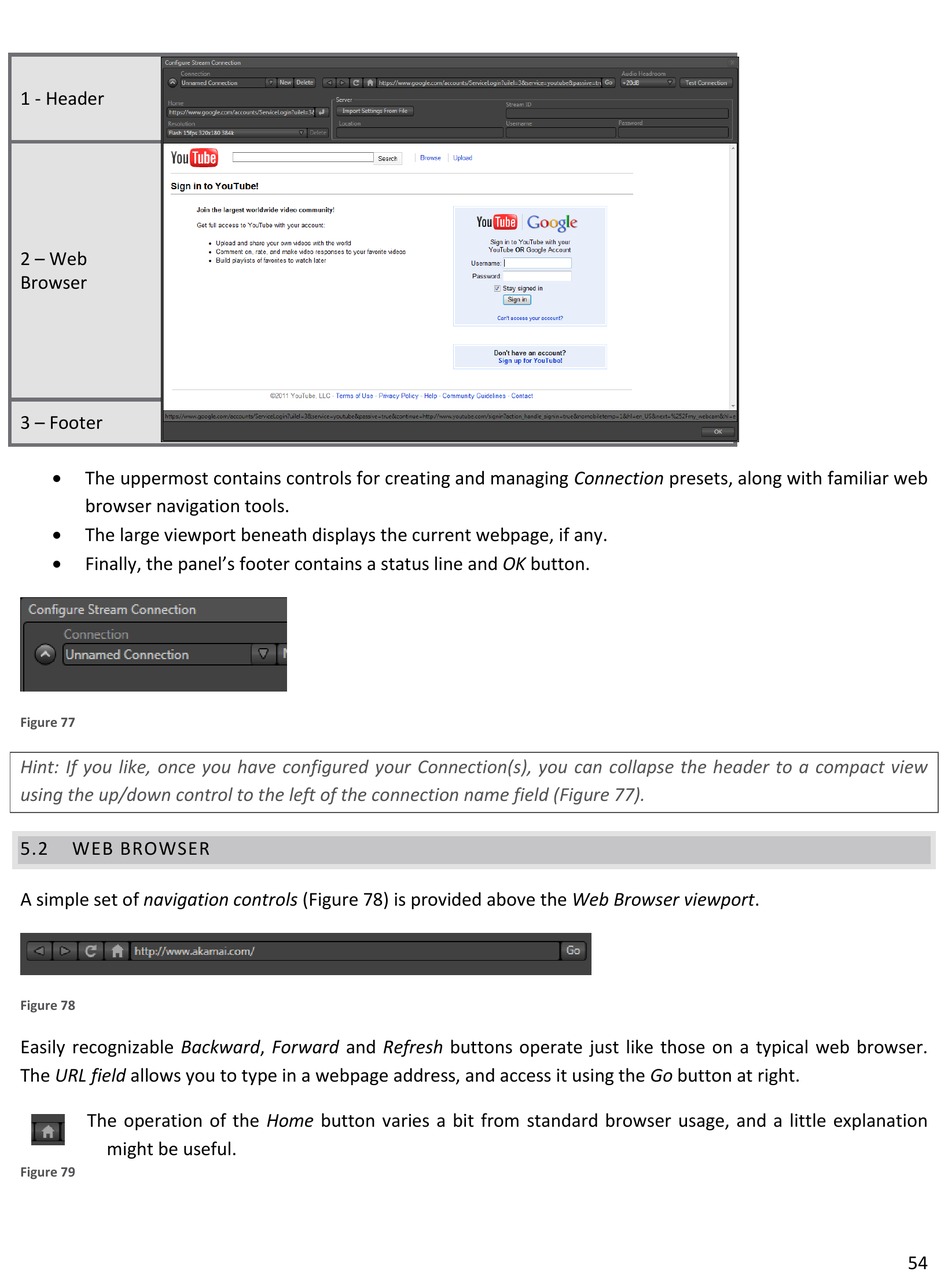

Web Browser - NewTek TriCaster 40 User Manual

1 - Header
2 – Web
Browser
3 – Footer

The uppermost contains controls for creating and managing Connection presets, along with familiar web
browser navigation tools.

The large viewport beneath displays the current webpage, if any.

Finally, the panel's footer contains a status line and OK button.
Figure 77
Hint: If you like, once you have configured your Connection(s), you can collapse the header to a compact view
using the up/down control to the left of the connection name field (Figure 77).
5.2

WEB BROWSER

A simple set of navigation controls (Figure 78) is provided above the Web Browser viewport.
Figure 78
Easily recognizable Backward, Forward and Refresh buttons operate just like those on a typical web browser.
The URL field allows you to type in a webpage address, and access it using the Go button at right.
The operation of the Home button varies a bit from standard browser usage, and a little explanation
might be useful.
Figure 79
54
