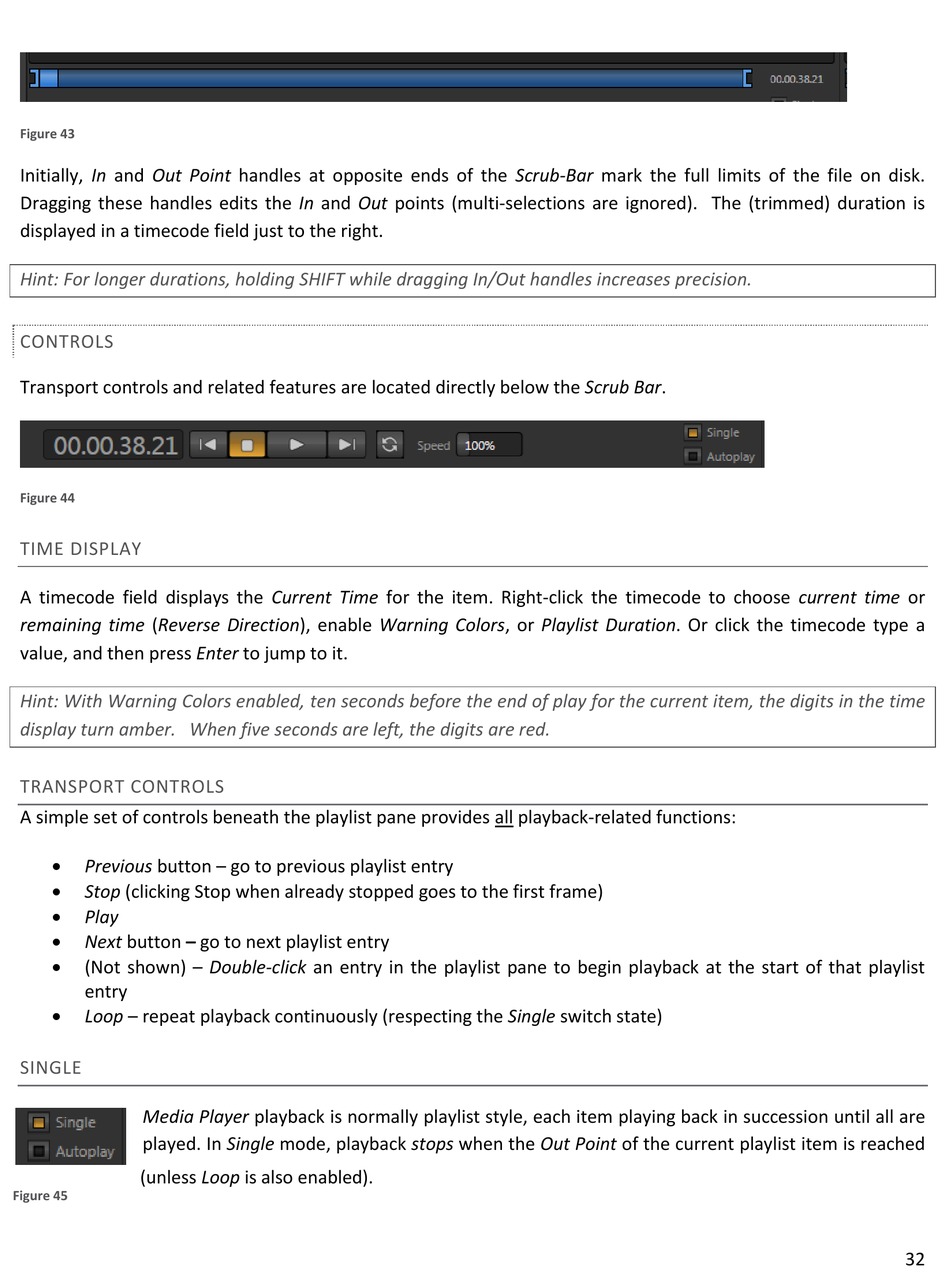

NewTek TriCaster 40 User Manual page 34

Figure 43
Initially, In and Out Point handles at opposite ends of the Scrub-Bar mark the full limits of the file on disk.
Dragging these handles edits the In and Out points (multi-selections are ignored). The (trimmed) duration is
displayed in a timecode field just to the right.
Hint: For longer durations, holding SHIFT while dragging In/Out handles increases precision.
CONTROLS
Transport controls and related features are located directly below the Scrub Bar.
Figure 44
TIME DISPLAY
A timecode field displays the Current Time for the item. Right-click the timecode to choose current time or
remaining time (Reverse Direction), enable Warning Colors, or Playlist Duration. Or click the timecode type a
value, and then press Enter to jump to it.
Hint: With Warning Colors enabled, ten seconds before the end of play for the current item, the digits in the time
display turn amber. When five seconds are left, the digits are red.
TRANSPORT CONTROLS
A simple set of controls beneath the playlist pane provides all playback-related functions:

Previous button – go to previous playlist entry

Stop (clicking Stop when already stopped goes to the first frame)

Play

Next button – go to next playlist entry

(Not shown) – Double-click an entry in the playlist pane to begin playback at the start of that playlist
entry

Loop – repeat playback continuously (respecting the Single switch state)
SINGLE
Media Player playback is normally playlist style, each item playing back in succession until all are
played. In Single mode, playback stops when the Out Point of the current playlist item is reached
(unless Loop is also enabled).
Figure 45
32
