FrontRow Juno Connect Configuration Manual page 5

3. What do you want to control? How do you want to control it?
Your Juno Connect can let teachers control or communicate with practically any device or person. Now is the time
to plan what you want to do.

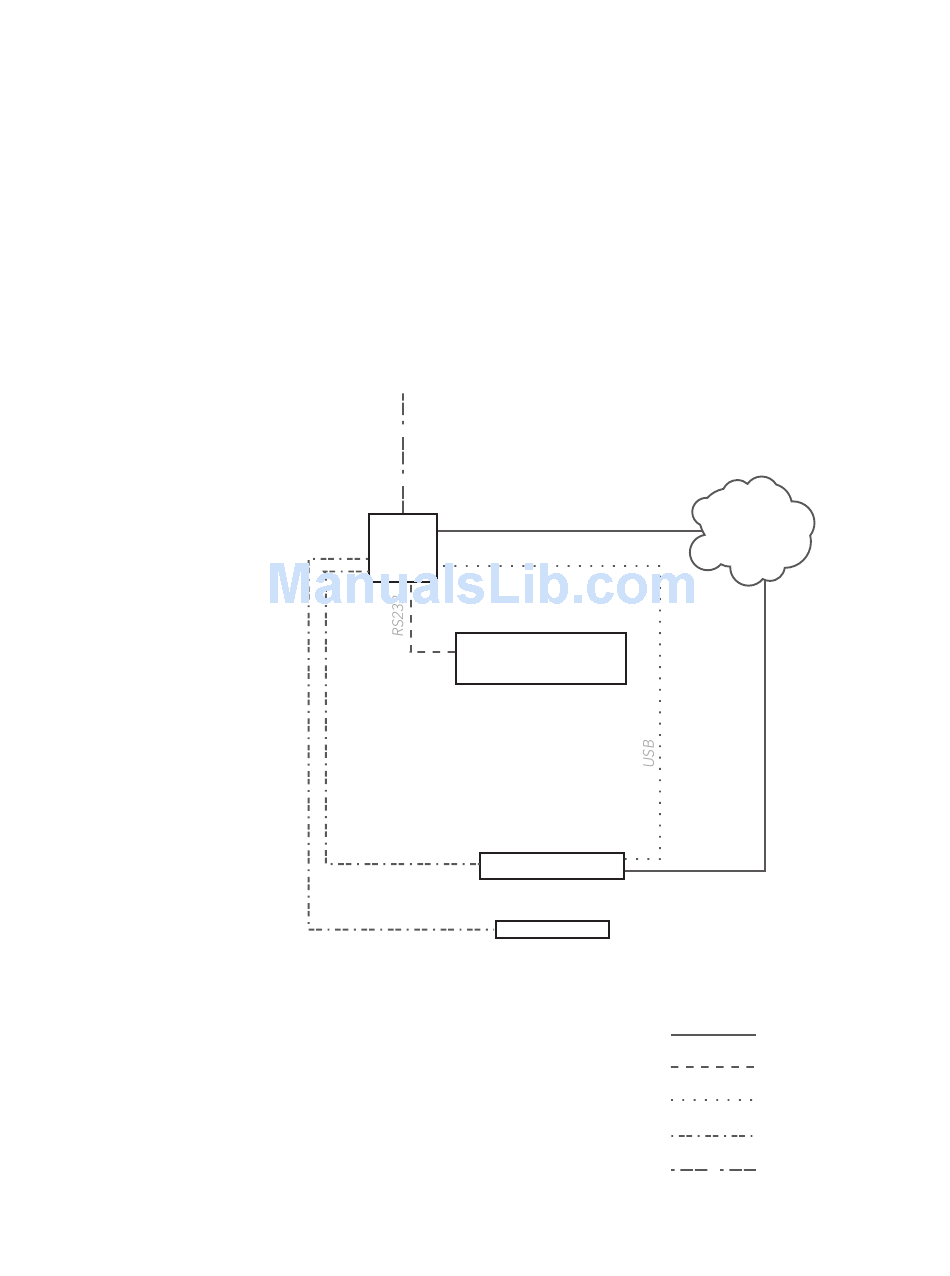

Example 1: Typical setup with projector
In this example, the Juno Connect works to turn a projector on and off, switch inputs or execute any command
the projector has in it's control library, If FrontRow Conductor™ is being used in the school, the Juno Connect can
also initiate intercom calls and trigger alerts. In combination with powerful tools like FrontRow Maestro™, this can
allow you to 'network' and manage projectors that are otherwise not online. Below are the basic connections for
controlling a projector serially.
Juno Connect Tower
NOTE: This is a schematic illustration
intended to clarify the relationship of
components to each other. The location
of jacks shown here may not reflect their
true position on specific devices.
Power
NETWORK
Projector
AUDIO
Computer
AUDIO
DVD
Player
2
LAN
Cat 5 cable
Serial cable
USB cable
Audio Cable
Power
