HawkEye 45T
Configuration Guide
Hardware Required
Item
Description
1

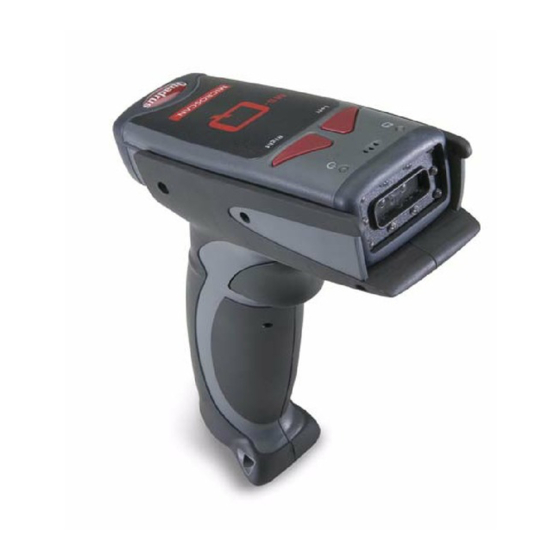

HawkEye 45T Reader
2
USB Cable (included with USB model)
3
Keyboard Wedge Cable, 6', coiled, PS/2
4
RS-232 Kit, including 8 ft. coiled cable, Power Supply
5
Power Supply (included in RS-232 Kit), 90-264 VAC, +5VDC, 1.5A, includes wall mount
6
USB Modem Kit
7
RS-232 Modem Kit
8
MS-Connect 210 Connectivity Box
9
Power Supply, 90-264 VAC, 24VDC USA/Euro Plug
10
Reader Cable, MS-Q to MS-Connect 210, 5 meters, coiled
11
Host Cable, user-stripped, RS-232, 9-pin
Configurations
USB
2
RS-232
7
Copyright ©2009 Microscan Systems, Inc.
PS/2
1
RS-232 with MS-Connect 210
5
1
Bluetooth (Wireless)
1
3
8
11
9
10
Part Number
FIS-HT45-XXXXG
60-000018-03
98-000074-XX
98-000076-10
98-000076-07, -08, -09
FIS-0210-XXXXG
97-100004-15
61-000066-02
61-000105-01
1
6
2
1
P/N 83-217006 Rev A
