Page 1: Quick Start Guide

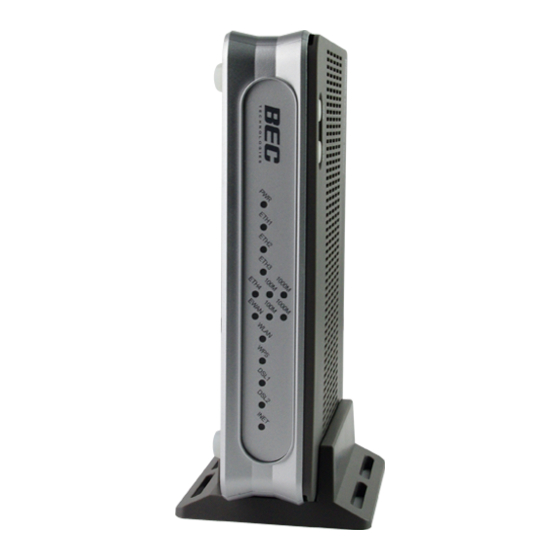

BEC 8920NE ® Ultimum The Ultimate Residential Gateway VDSL2/ADSL2+/Bonded/FTTH Quick Start Guide Version 1.0... -
Page 3: Package Contents
BEC 8920NE The Ultimate Residential Gateway PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON CD-ROM. -
Page 4: Front Panel Leds
Successfully registered and ready to be used. DSL1 / DSL2 Orange Phone is off-hook, in-use Green IP received and traffic is passing thru the device. Internet (INET) Blinking Data being transmitted / received BEC 8920NE is either in bridged mode or WAN/DSL connection is not ready. -
Page 5: Rear Panel Connectors
BEC 8920NE The Ultimate Residential Gateway Rear Panel Connectors PORT MEANING Antenna Screw the supplied Wi-Fi antennas onto the antenna connectors on both sides. Connect the device to an ADSL/VDSL telephone jack or splitter using a RJ-11 telephone cable Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable... -
Page 6: Hardware Connection
Quick Start Guide Hardware Connection xDSL Connection – Single Pair xDSL Connection – Bonding... -
Page 7: Hardware Installation
BEC 8920NE The Ultimate Residential Gateway FTTH / Broadband Connection Hardware Installation Power Connection Plug in the supplied power adapter to the wall jack, the other side to the 8920NE then power ON the 8920NE by pressing the Power On/Off button. - Page 8 Quick Start Guide 3. WAN Connection 3.1 xDSL Interface For single line xDSL, please connect a RJ-11 to the DSL port , and the other side to the phone jack on the wall. For bonded xDSL, please connect the supplied Y-cable to the DSL port, and the other two ends to the phone jacks on the wall.
- Page 9 BEC 8920NE The Ultimate Residential Gateway 4. USB Connection FTP or Samba Server attached to the USB port. Simply plug in an external USB HD and do a setup in the GUI. <Please refer to User Manual for detailed instruction.>...
-
Page 10: Connecting To The Router
Quick Start Guide Connecting to the Router The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the attached PC to this router is in the same subnet and has an IP address in the range between 192.168.1.1 ~ 192.168.1.253. -
Page 11: Troubleshooting
BEC 8920NE The Ultimate Residential Gateway Step 5: Setup Wireless Connection Setup the SSIDs and change the Security Passphrase to secure your wireless network. Wireless Service: select Enable SSID: Assign an unique name Network Authentication: select a mode - WPA-PSK...
