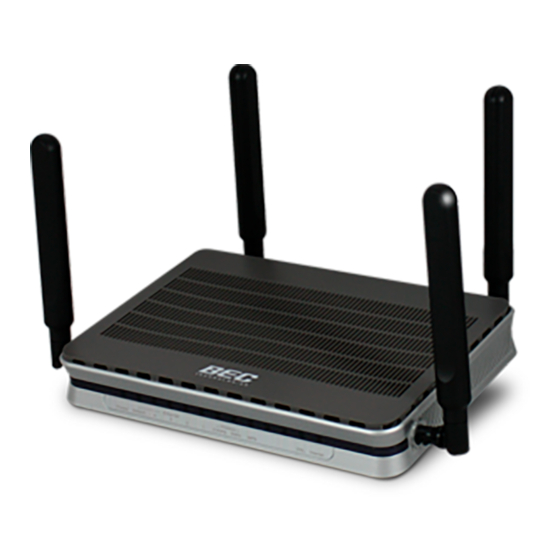

BEC 8900AX ® Ultimum Triple WAN Gateway with 2400Mbps Wireless-AC VDSL2 / ADSL2+ / FTTH Quick Start Guide...
Page 3
IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE ONLINE USER MANUAL. Package Contents ✓ BEC 8900AX The Triple WAN Gateway (including 4 antennas and a stand) * 1 ✓ This Quick Installation Guide * 1 ✓ RJ-45 STP Ethernet Cable * 1 ✓...
Quick Start Guide Front Panel LEDs PORT MEANING Wi-Fi Antennas There is a total of 4 fixed dual-band Wi-Fi antennas, 2 in front and 2 in the back. STATUS DESCRIPTION System failure or in emergency mode Green System is up and ready (Power) Device has no power.
BEC 8900AX Triple WAN Gateway with 2400Mbps Wireless-AC Rear Panel Connectors PORT MEANING 1. Wi-Fi There is a total of 4 fixed dual-band Wi-Fi antennas Antennas 2. Power ON/OFF Power ON/OFF switch 3. PWR (Power) Connect the supplied Power Adapter to this port.
The Ethernet 5 is an interchangeable LAN/WAN port. Refer to the User Manual to change this port to EWAN interface to connect with your Fiber, Cable, or xDSL modem. Mobile USB Internet Connection Compatible with specific USB mobile modems. Please consult with BEC Support for more information.
Page 7
BEC 8900AX Triple WAN Gateway with 2400Mbps Wireless-AC Automatic WAN Failover The automatic failover, between two (2) WAN interfaces, ensures uninterrupted operation and 24/7 Internet availability. When Primary WAN connection fails, the Secondary connection will back up the Internet connection seamlessly. Available WAN interfaces are ADSL/VDSL /...
Page 8
Quick Start Guide Hardware Installation 1. Attach the Stand to the 8900AX In case the horizontal stand is detached from the 8900AX, place the 8900AX on a level surface then push the stand to attach to the wall anchors on the button of the casing. 2.
Page 9
BEC 8900AX Triple WAN Gateway with 2400Mbps Wireless-AC 3. Power Connection Plug in the supplied power adapter to the wall jack, the other side to the 8900AX then power ON the 8900AX by pressing the Power On/Off button. 4. LAN Connection Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the other side to the PC’s Ethernet interface.
Page 10
Quick Start Guide 4. (Optional) USB Connection (For Print Sever & Storage) FTP server, samba server and DLNA media server are supported. 5. WAN Connection A. xDSL Interface Connect the supplied RJ-11 phone cable to the DSL port and the other side to the phone jack on the wall.
Page 11
BEC 8900AX Triple WAN Gateway with 2400Mbps Wireless-AC B. EWAN Interface Connect RJ-45 Ethernet cable to the EWAN port, and connect the other side to another alternative broadband device, such as Cable Modem, VDSL, Fiber Modem or PON optic lines. <Please refer to User Manual for detailed instruction.>...
Quick Setup Your Router Use the Quick Start for fast connection setup. Before start configuring your BEC 8900AX, make sure you have the WAN port connected to phone jacks or with your Internet box or fiber line. Step 1: WAN Connection Setup Select the primary network interface for your Internet connection, xDSL / EWAN / USB 3G_4G LTE mode.
BEC 8900AX Triple WAN Gateway with 2400Mbps Wireless-AC Step 5: Setup Wireless Connection Setup the SSIDs and change the Security Passphrase to secure your wireless network. Wireless Service: select Enable SSID: Assign a unique name Network Authentication: select a mode...
Quick Start Guide Product Support and Contact Information Most problems can be solved by referring to the Troubleshooting section in the User Manual. If you have other inquiries or need further technical support, please contact with your Internet Service Provider or visit us at www.bectechnologies.net. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
