Summary of Contents for BEC 8920AC

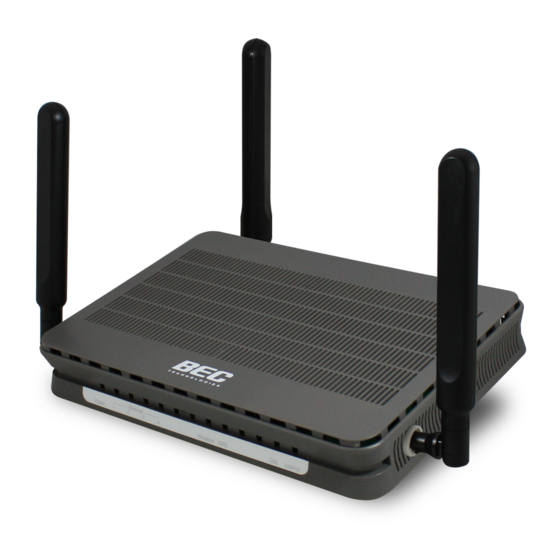

- Page 1 BEC 8920AC ® Ultimum The Ultimate Residential Gateway with 802.11ac VDSL2/ADSL2+/Bonded/FTTH Quick Start Guide...
-
Page 3: Vertical Stand
IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON CD-ROM. Package Contents BEC 8920AC The Residential Gateway with 802.11ac * 1 This Quick Installation Guide * 1 CD containing User Manual * 1 ... -
Page 4: Front Panel Leds
IP received and traffic is passing thru the device. Blinking Data being transmitted / received INET BEC 8920AC is unable to get a public (WAN) IP address (Internet) BEC 8920AC is either in bridged mode or WAN (DSL) connection is not ready... -
Page 5: Rear Panel Connectors
BEC 8920AC The Ultimate Residential Gateway w/ 802.11ac Rear Panel Connectors PORT MEANING 1. Power ON/OFF Power ON/OFF switch 2. PWR (Power) Connect the supplied Power Adapter to this port. By controlling the pressing time, users can achieve two different effects: (1) WPS : Press &hold the button for less than 6 seconds to... -
Page 6: Hardware Connection
Quick Start Guide Hardware Connection xDSL Connection – Single Pair xDSL Connection – Bonding... - Page 7 BEC 8920AC The Ultimate Residential Gateway w/ 802.11ac FTTH / Broadband Connection Automatic WAN Failover The Ethernet 5 is an interchangeable The automatic failover ensures uninterrupted LAN/WAN port. Refer to the User Manual operation and 24/7 Internet availability. When to change this port to EWAN interface to...
-
Page 8: Hardware Installation
LED) facing upward then slide it into the stand by attaching the wider side of the vertical stand to the top casing (BEC Logo) and shorter side on the back of the 8920AC 2. Power Connection Plug in the supplied power adapter to the wall jack, the other side to the 8920AC then power 8920AC pressing... - Page 9 BEC 8920AC The Ultimate Residential Gateway w/ 802.11ac 3. LAN Connection Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the other side to the PC’s Ethernet interface. 4. WAN Connection A. xDSL Interface For single line xDSL, please connect the supplied Y-Cable or a regular RJ-11 phone cable to...
- Page 10 Quick Start Guide For bonded xDSL, please connect the supplied Y-cable to the DSL port, and the other two ends (both pairs) to the phone jacks on the wall. B. EWAN Interface Connect RJ-45 Ethernet cable to the EWAN port, and connect the other side to another alternative broadband device, such as Cable Modem, VDSL, Fiber Modem or PON optic lines.
-
Page 11: Quick Setup
Quick Setup Your Router Use the Quick Start for fast connection setup. Before start configuring your BEC 8920AC, make sure you have the WAN port connected to phone jacks or with your Internet box or fiber line. Step 1: WAN Connection Setup Select the primary network interface for your Internet connection, xDSL/FTTH/3G_4G LTE mode. -
Page 12: Troubleshooting
Quick Start Guide Step 5: Setup Wireless Connection Setup the SSIDs and change the Security Passphrase to secure your wireless network. Wireless Service: select Enable SSID: Assign an unique name Network Authentication: select a mode - WPA-PSK - WPA2-PSK (Most secure one) - Mixed WPA2 / WPA-PSK (Auto detect WPA mode with wireless clients) -
Page 13: Product Support And Contact Information
BEC 8920AC The Ultimate Residential Gateway w/ 802.11ac Product Support and Contact Information Most problems can be solved by referring to the Troubleshooting section in the User Manual. If you have other inquiries or need further technical support, please contact with your Internet Service Provider or visit us at www.bectechnologies.net.
