Summary of Contents for BEC 8920M

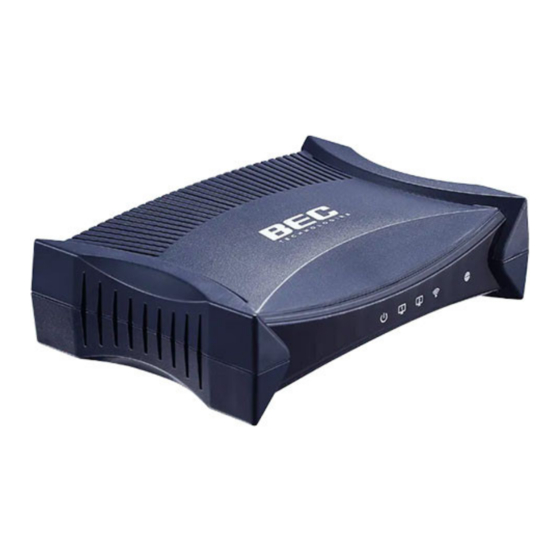

- Page 1 BEC 8920M Single Port Bonded VDSL2 Gateway Quick Start Guide...
- Page 3 IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE ONLINE USER MANUAL. Package Contents ✓ BEC 8920M The Single Port Bonded VDSL2 Gateway * 1 ✓ This Quick Installation Guide * 1 ✓ RJ-45 STP Ethernet Cable * 1 ✓...
-
Page 4: Front Panel Leds
Obtained an IP address; traffic is passing thru the device Blinking Data being transmitted / received 8920M is unable to get a public (WAN) IP address Internet 8920M is either in bridged mode or WAN (DSL) connection is not ready... -
Page 5: Rear Panel Connectors
BEC 8920M Single Port Bonded VDSL2 Gateway Rear Panel Connectors PORT MEANING Connect the supplied Power Adapter to this port. DC IN (Power) Push and hold the reset button for five (5) seconds to restore to its factory default RESET settings (this is used when you cannot login to the router, e.g. -
Page 6: Hardware Connection
Quick Start Guide Hardware Connection Hardware Installation 1. Power Connection Power up the 8920M by plugging in the supplied power adapter to the wall jack, the other side to the 8920M. - Page 7 BEC 8920M Single Port Bonded VDSL2 Gateway 2. LAN Connection Connect the supplied RJ-45 cable the Ethernet port, and the other side to the PC’s Ethernet interface. 3. WAN Connection Connect the supplied RJ-11 phone cable to the DSL port and the other side to the phone jack on the wall.
-
Page 8: Connecting To The Router
Quick Setup Your Router Use the Quick Start for fast connection setup. Before start configuring your BEC 8920M, make sure you have the WAN port connected to phone jacks or with your Internet box or fiber line. Step 1: WAN Interface Setup Select a Layer 2 Interface, ATM (ADSL setup) or PTM (VDSL setup) of your WAN service. -
Page 9: Troubleshooting
BEC 8920M Single Port Bonded VDSL2 Gateway Troubleshooting 1. None of the LEDs are on when you turn on the router. Check the connection between the adapter and the router. If the error persists, you may have a hardware problem. In this case you should contact technical support.
