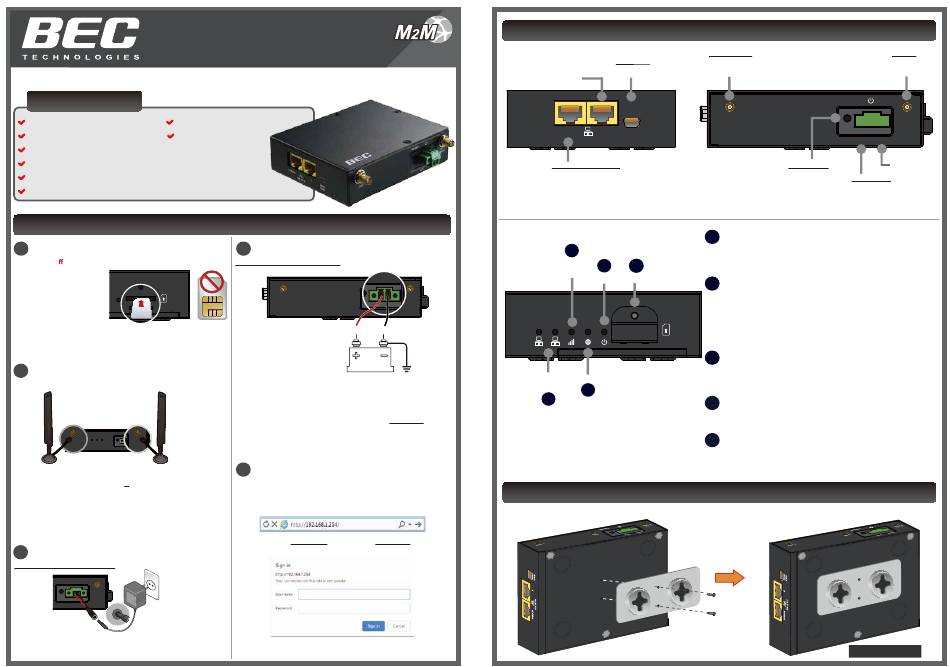

BEC MX-240 Quick Install Manual

WHAT'S IN THE BOX
1 x BEC MX-240
1 x This Quick Install Guide
1 x Ethernet (RJ-45) Cable
1 x DC Power Adapter, 12V 1.2A
1 x Power Terminal Block 2-Pin 3.5mm
1 x Power Converter with 2-Pin Terminal Block
SETTING UP THE ROUTER
1 Insert the SIM Card
Note: Power o the MX-240 before inserting or removing the SIM
Remove the SIM cover
then insert the SIM card
(2FF) with the mental
contacts (gold plate)
2 1 WAN INTERNET POWER SIM
2 1 WAN INTERNET POWER SIM
facing down to the SIM
Gb ETH SIM
Gb ETH SIM
slot then push it all the
way in until you hear the clicking sound.
Replace the metal SIM cover after inserting the SIM.
2 Attach the SX-CBRS Antennas
Note: Antenna images shown are for illustration purpose only.
RESET POWER RESET POWER
RESET POWER
WAN WAN
WAN ANT 1 AUX GPS ANT 0 MAIN
AUX (MAIN)
Screw the male SMA SX-CBRS antennas tight to the female
connectors. You can use up to 4 antennas with the MX-240.
Connect to the ANT1(MAIN) port, the primary antenna port to
transmit and receive cellular signal, if decide to use a single
antenna.
Do not over-torque the antenna on the connector.
3
Connect to Power Source
Use the DC Power Adapter
RESET POWER
AN GPS ANT 0
UX (MAIN)
Power
Attach the power converter with 2-pin terminal block to the
MX-240 and plug in the supplied power adapter, 12VDC
1.2A.
Model: MX-240
Quick Install Guide
1 x DIN Rail Mounting Kit
1 x Wall Mounting Kit
4 x SX-CBRS Antennas
(Sold Separately)
3 Connect to Power Source (Cont.)
Use External Power Supply
ANT 1
VCC
VCC(on the left) - Red Wire
GND(on the right) - Black Wire
Attach the power terminal block (TB) to the MX-240 and
connect wire leads from a power supply to the terminal block
(TB) plug.
RED Wire (Left Connector): VCC/V+. Connect to the positive
supply voltage. Input voltage range is from 9V to 56V.
BLACK Wire (Right Connector): Ground (GND) / V-. Connect
to the negative supply voltage.
WAN
MAIN
Access to the MX-240
4
Connect the supplied Ethernet cable to your notebook or PC.
Acecess to the MX-240 Web interface by entering
http://192.168.1.254 in the address bar of the web browser.
Default Login: Username (admin) and Password (admin or
a unique12-digit password can be found on the device label).
The Quick Start Wizard provides key steps to connect the
MX-240 to the Internet.
Gigabit LAN
RESET POWER
RESET POWER
ANT 0
(MAIN)
GND
2
Ethernet
Attach and fasten the wall bracket to the back of the MX-240 using two (2) clip mounting screws included in the mounting
kit.

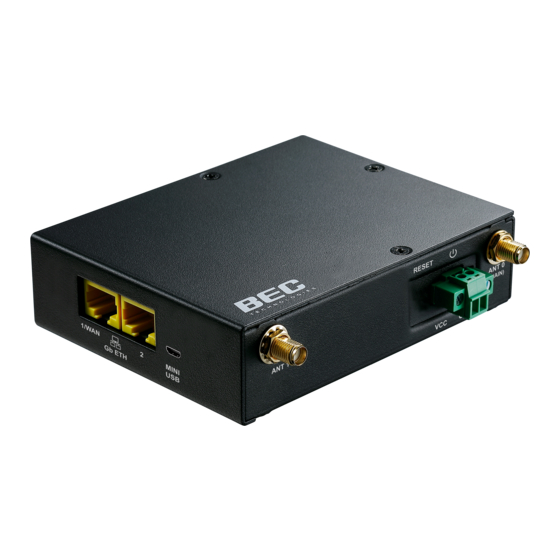

DEVICE OVERVIEW & LEDS
ANT 1 / 2 / 3
MINI USB
(Auxiliary Antenna)
Connect to the Module
SMA Female Connector
1/WAN 2 MINI
USB
Gb ETH
Gigabit LAN / WAN
Ethernet LAN: Connect to an Ethernet device.
Ethernet WAN: Software configurable in the GUI.
Connect to a broadband connection device such as
ADSL / VDSL / Cable / FTTH modem.
1
2
LTE Signal
4 5
Strength
Power SIM Slot
2
1
SIM
3
Internet
LAN
3
1
4
5
WALL MOUNT KIT INSTALLATION
ANT 0
(Main Antenna)
SMA Female Connector
RESET
ANT 1 ANT 0
(MAIN)
VCC GND
Ground (V-)
Hard Reset
Hold for 6 seconds to
Power (V+)
restore its factory settings
1. Use an external power supply
Input power 9-56V DC range.
2. Use supplied Power adapter
GIGABIT ETHERNET (Gb ETH) (LAN #1 & #2)
Green: Transmission speed is at Gigabit speed (1000Mbps)
Orange: Transmission speed is at 10/100Mbps
Blinking: Data being transmitted/received
WAN (Cellular Signal Strength Indicator)
Green: RSSI > -69 dBm. Excellent signal
Green / Fast Flashing: -69 > RSSI > -81dBm. Good signal
Red / Fast Flashing: -81 > RSSI > -99dBm. Fair signal
Red / Slow Flashing: -99dBm > RSSI. Poor signal
Red: No signal and the 4G LTE module is in service
Off: No LTE module or LTE failure
INTERNET
Green: IP traffic via WAN
Red: WAN IP request failed
Off: No WAN Connection or in Bridge Mode
POWER
Green: System ready
Red: Boot failure
SIM Card Slot
Insert mini SIM card (2FF) with the gold contact facing down.
Push mini SIM card (2FF) inwards to eject it
* Power off the MXConnect router before inserting or removing the SIM card
Assembled
