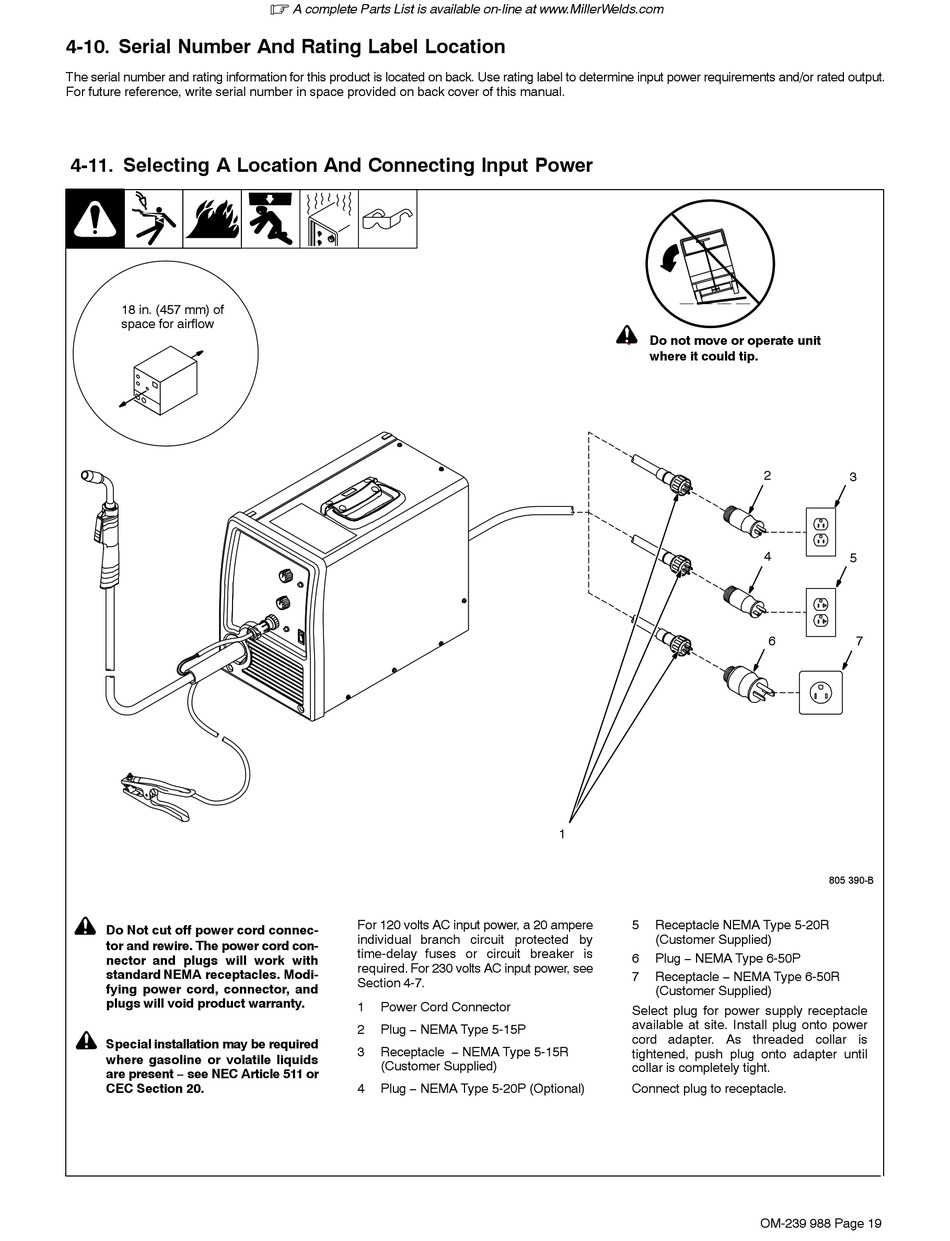

4-10. Serial Number And Rating Label Location

The serial number and rating information for this product is located on back. Use rating label to determine input power requirements and/or rated output.
For future reference, write serial number in space provided on back cover of this manual.

4-11. Selecting A Location And Connecting Input Power

18 in. (457 mm) of
space for airflow
!
Do Not cut off power cord connec-
tor and rewire. The power cord con-
nector and plugs will work with
standard NEMA receptacles. Modi-
fying power cord, connector, and
plugs will void product warranty.
!
Special installation may be required
where gasoline or volatile liquids
are present − see NEC Article 511 or
CEC Section 20.
.
A complete Parts List is available on-line at www.MillerWelds.com
For 120 volts AC input power, a 20 ampere
individual branch circuit protected by
time-delay fuses or circuit breaker is
required. For 230 volts AC input power, see
Section 4-7.
1 Power Cord Connector
2 Plug − NEMA Type 5-15P
3 Receptacle − NEMA Type 5-15R
(Customer Supplied)
4 Plug − NEMA Type 5-20P (Optional)
!
Do not move or operate unit
where it could tip.
1
5 Receptacle NEMA Type 5-20R
(Customer Supplied)
6 Plug − NEMA Type 6-50P
7 Receptacle − NEMA Type 6-50R
(Customer Supplied)
Select plug for power supply receptacle
available at site. Install plug onto power
cord adapter. As threaded collar is
tightened, push plug onto adapter until
collar is completely tight.
Connect plug to receptacle.
2
3
4
5
6 7
805 390-B
OM-239 988 Page 19
