Operator's Manual
Operator's Manual

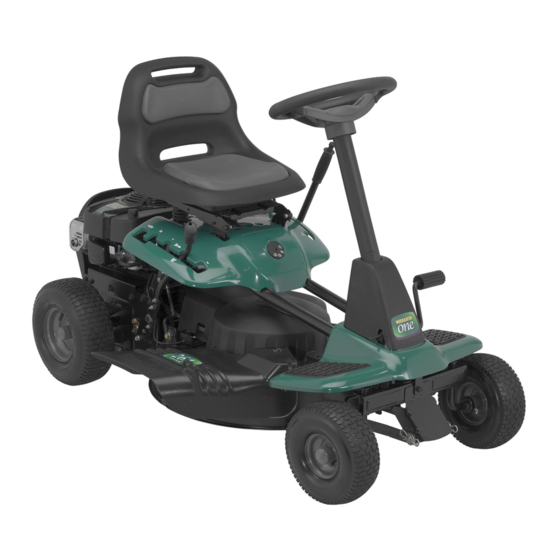

26" RIDING MOWER
SIDE DISCHARGE
ELECTRIC START
Catalog No.
WELRV1
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine. The
use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
532 44 20-89 Rev. 3
IMPORTANT:
Read and follow all Safety
Rules and Instructions before
op er at ing this equipment.
Patents Pending
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Weed Eater One WELRV1
Summary of Contents for Weed Eater One WELRV1

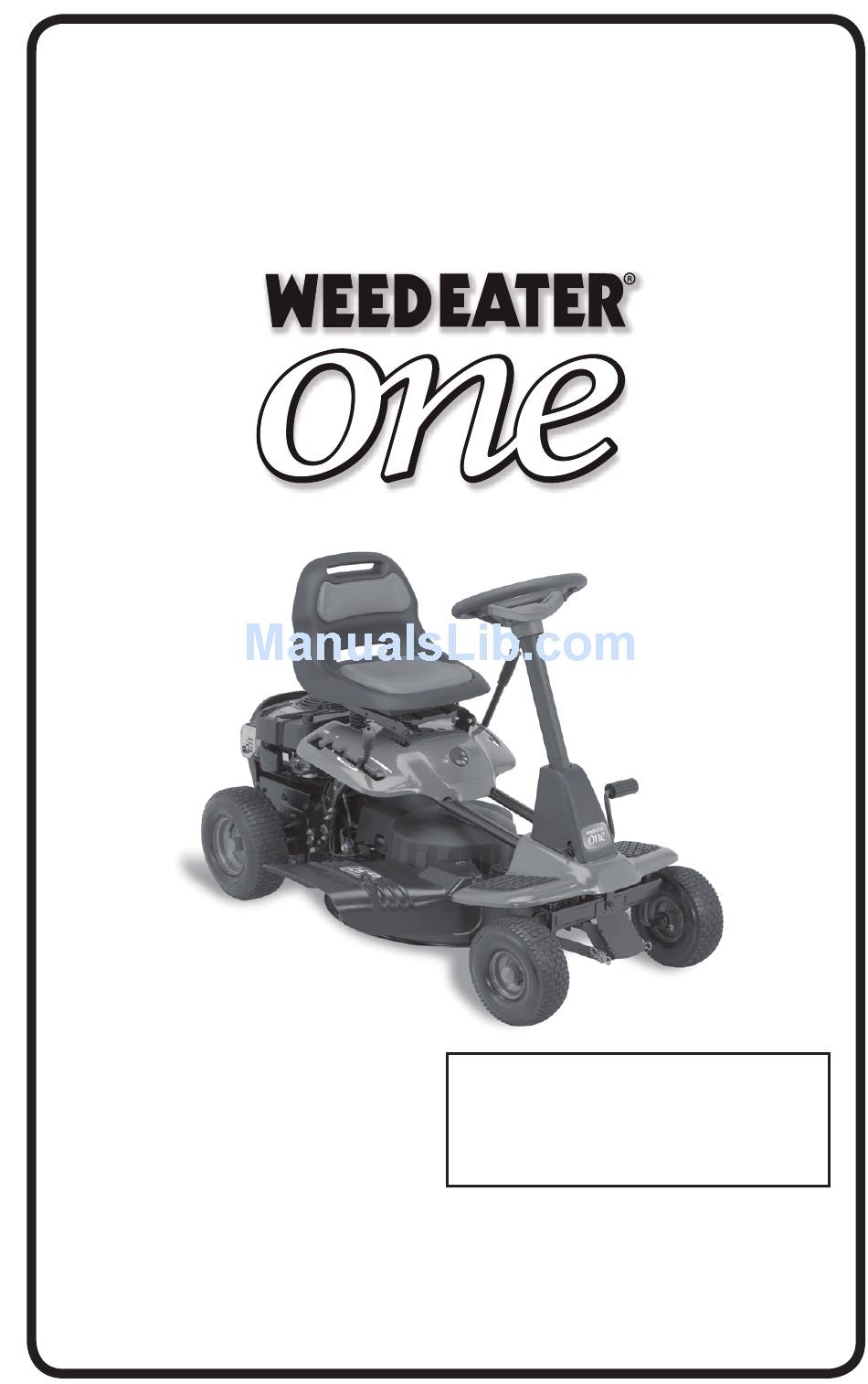

- Page 1 Operator’s Manual 26" RIDING MOWER SIDE DISCHARGE ELECTRIC START Catalog No. IMPORTANT: Read and follow all Safety WELRV1 Rules and Instructions before op er at ing this equipment. Patents Pending Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine. The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
-
Page 2: Ignition Switch
RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) SCHEMATIC SCH21 BATTERY FUSE-5A BLACK STARTER FUSE-40A WHITE TO IGN. SWITCH ‘A1’ VIOLET BLACK VIOLET VIOLET CLUTCH / BRAKE ATTACHMENT CLUTCH (PEDAL UP) (CLUTCH OFF) SAFETY START MODULE BLACK/WHITE BLACK/WHITE SEAT SWITCH (NOT OCCUPIED) GREEN BLACK BLACK... - Page 3 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) ELECTRICAL LRV1...
- Page 4 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) ELECTRICAL KEY PART NO. NO. DESCRIPTION 532 43 70-70 BATTERY 532 42 54-16 FOAM, POLYURETHANE 532 19 33-50 SWITCH, IGN, DLTA, P-IN, ROS 532 41 19-33 KEY/CHAIN 532 43 33-30 FUSE, 5A 532 42 59-37 FUSE, 40A 532 16 07-84 SWITCH, PLUNGER, NO, OLIVE...
- Page 5 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) CHASSIS LRV-A _Chassis_3...
- Page 6 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) CHASSIS KEY PART NO. NO. DESCRIPTION 532 42 80-48 WELDMENT, CHASSIS 532 42 82-47 SUPPORT, AXEL LH 532 42 82-44 SUPPORT, AXEL RH 532 42 83-46 SHIELD, TRANSAXLE FRONT 532 42 81-10 BRACE, AXLE CROSS 532 42 81-09 COVER, FRICTION DRIVE 532 42 80-40...
- Page 7 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) DRIVE LRV-A_Drive_3...
- Page 8 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) DRIVE KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 810 04 04-00 WASHER, LOCK 532 43 61-44 SERVICE KIT, TRANSAXLE 819 09 12-10 WASHER FLAT 532 43 64-98 WHEEL ASM (REAR) 532 16 60-02 WASHER, SERRATED 532 12 17-48...
- Page 9 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) STEERING LRV-A_Steering_1_r4...
- Page 10 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) STEERING KEY PART NO. NO. DESCRIPTION 532 43 65-00 WHEEL ASM (FRONT) 812 00 00-01 E-CLIP 532 18 89-67 WASHER, HARDENED 532 12 17-49 WASHER, 1/4 X 3/4 532 43 53-24 SPINDLE, RH 532 12 49-31 WASHER, HARDENED THRUST 532 12 49-37...
-
Page 11: Mower Deck
RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) MOWER DECK LRV-A_Deck_8... - Page 12 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) MOWER DECK KEY PART NO. NO. DESCRIPTION 532 42 81-93 DECK, 26" 532 19 28-70 MANDREL ASM 532 43 25-20 KEEPER, BELT 532 43 25-94 PULLEY, MANDREL 532 42 85-78 BELT 532 42 82-42 COVER, MANDREL 532 42 93-95 LIFT ASM, DECK...
- Page 13 RIDING MOWER - -CATALOG NO. WELRV1 (96026000201) DECALS KEY PART NO. NO. DESCRIPTION 532 43 05-88 DECAL, STEERING WHEEL 532 43 35-96 DECAL, V-BELT SCH 30" 532 42 51-13 DECAL, WARN. DEFLECT/CTFGR 532 44 07-79 DECAL, DECK/DEFLECTOR 532 43 67-55 DECAL 532 43 24-79 DECAL, BYPASS...
