VRinsight
Multi Switch Panel

Assignment keys/commands to the Multi Switch Panel

Introduction

Calibrating the Multi Switch panel is essential for correct operation with Microsoft Windows
Operating Systems. Once this calibration is completed, assigning keys and/or commands to
the various pushbuttons, knobs, sliders and switches on the Multi Switch panel is essential to
get it "customized" with the simulator. This section deals with some examples of how to assign
keys/commands to the panel. Because the panel is recognized as an ordinary joystick, the
assignment procedure is not different than other hardware. Although the assignment
procedure is not much different compared to other joysticks, find in this section a Microsoft
Flight Simulator X (or FS2004), Laminar Research X-Plane 9.x and Falcon 4.0 examples.

Flight Simulator X (or FS2004)

Step 1
Copyright © 2010 VRinsight | SimWare Simulations
- If not yet done, connect the Multi Switch Panel USB
cable to a USB 2.0 receptacle.

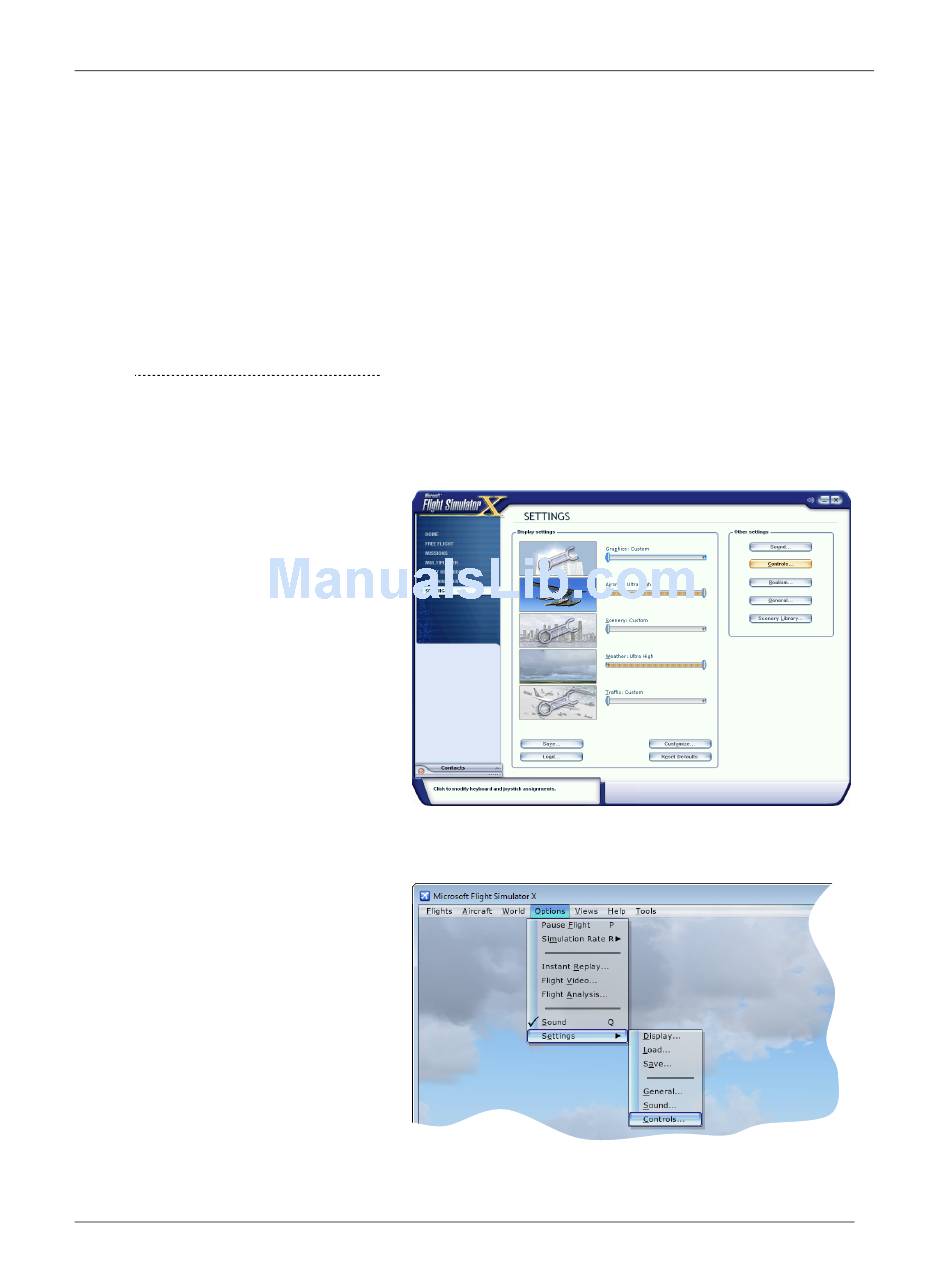

- Start FSX. Either FSX starts up with a default flight or
you will get the FSX startup window.
- When FSX comes up with the startup window, select
on the left side Settings, followed by Controls.
- When FSX comes up with a default flight, select from
the menu Options – Settings - Controls.
Assignment Procedures
Version: 1.00 | November 8, 2010
