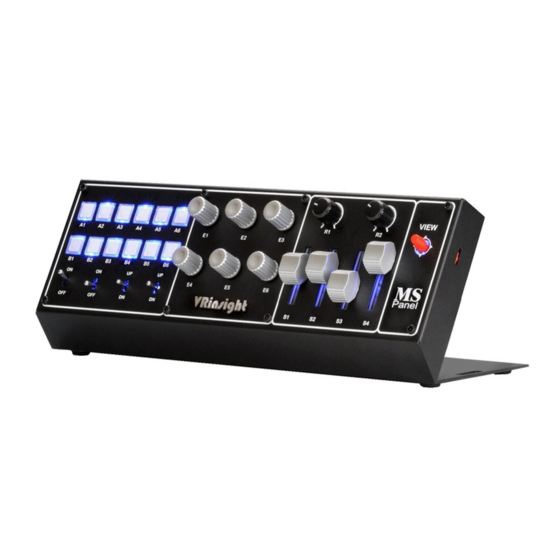

VRinsight MS Panel Manual

Hide thumbs Also See for MS Panel:

Advertisement

Quick Links

Download this manual
Thank you for purchasing Multi Switch panel. Please read through this guide before use and contact
info@vrinsight.com, if you have any problem.
This guide consists of four sections :

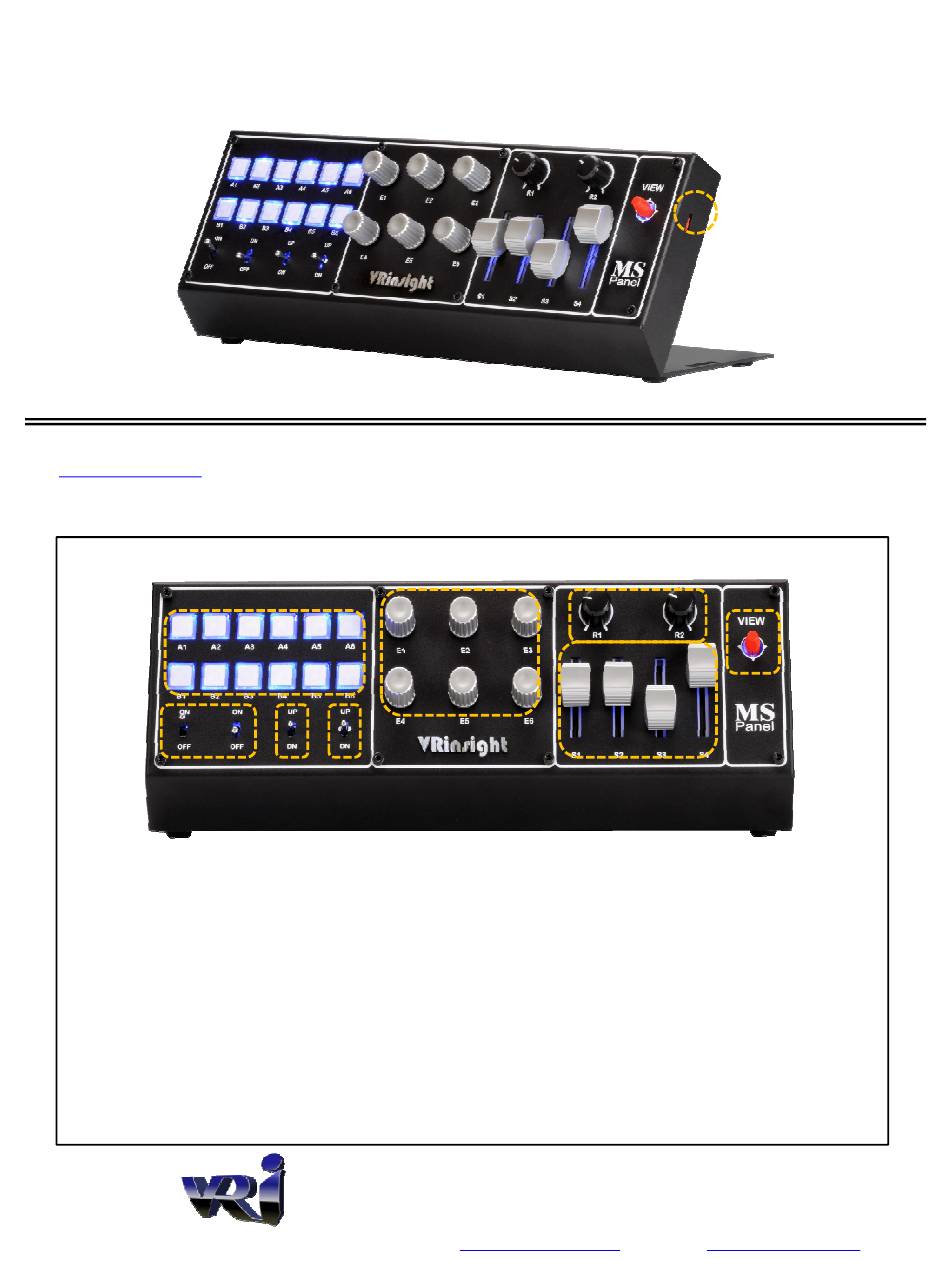

FEATURES
B
1. Standard gaming device with USB 2.0 connection
2. Fully compatible with most flight & fighter software
3. Full metal case
4. Backlit blue LED
5. Many buttons and switches :
12 x buttons (A), 2 x two positions ON/OFF toggle switches (B), 1 x return toggle switch (C),
1 x three positions ON/OFF toggle switch (D), 6 x encoder switches (E), 2 x potentiometers (F),
4 x Sliders (G), 1 x four positions view button (H)
6. "Fast Rotate and Hold" feature for rotary encoders (I)
7. Size : 30.5cm (L) x 12.5cm (W) x 11cm (H) / 12 inch (L) x 4.9inch (W) x 4.3 inch (H)
8. Weight : 1.5kg
www.vrinsight.com
MS
FEATURES, INSTALLATION, CALIBRATION
A
A
C
D
Tel : +82-31-284-7090~91 Fax : +82-31-284-7092
E-mail :
(Multi Switch) Panel by
Guide-MS panel(Sept2010)
F
E
E
G
tech@vrinsight.com
Web site :
VRinsight
I
and
APPLICATION.
H
H
www.vrinsight.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS Panel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VRinsight MS Panel

Summary of Contents for VRinsight MS Panel

  • Page 1 VRinsight (Multi Switch) Panel by Guide-MS panel(Sept2010) Thank you for purchasing Multi Switch panel. Please read through this guide before use and contact info@vrinsight.com, if you have any problem. This guide consists of four sections : FEATURES, INSTALLATION, CALIBRATION APPLICATION.

  • Page 2: Installation

    NOTE : NOTE : Since MS panel is recognized as a joystick, it must be calibrated before use. Since MS panel is recognized as a joystick, it must be calibrated before use. Calibration part is explained based on Windows VISTA.
  • Page 3 6. Move S1 slider up and down. 7. Click “Next” till you see “Axis Calibration for X Rotation”. (S2 slider is recognized as X Rotation) 8. Move S2 slider up and down. Tel : +82-31-284-7090~91 Fax : +82-31-284-7092 E-mail : tech@vrinsight.com Web site : www.vrinsight.com www.vrinsight.com...
  • Page 4 12. Move S4 slider up and down. 13. Click next and finish the calibration wizard. 14. Calibration is done. Go to “Test” and see if all controls are properly assigned for MS panel. Tel : +82-31-284-7090~91 Fax : +82-31-284-7092 E-mail : tech@vrinsight.com...
  • Page 5 15. Refer to the below tables and check each control on MS panel is assigned by OS default. Game Controller’s X axis Y axis Z axis X Rotation Rudder Throttle Axis Assignments panel Potentiometers & Sliders Game Controller’s Button Assignments...
  • Page 6 Connect the USB cable of MS panel to your computer. Run MSFSX and go to SETTINGS -> Controls. Check MS panel is recognized as USB pad 3. Go to “BUTTONS / KEYS” and select any pre-defined key assignment, And click “New Assignment”.
  • Page 7 4. Choose button / Toggle switch / Rotary knob / Encoder / Slider or View key and click “OK”. 5. Apply it for all buttons / Toggle switches / rotary knobs / Encoders / Sliders and View key. Tel : +82-31-284-7090~91 Fax : +82-31-284-7092 E-mail : tech@vrinsight.com Web site : www.vrinsight.com www.vrinsight.com...
  • Page 8 Application part is explained based on FALCON 4.0 Allied Force. Falcon4AF_patch_1.0.13 should be done before use. 1. Connect the USB cable of MS panel to your computer. 2. Run Falcon and go to SETUP -> KEYS. 3. Assign function for A1 ~ B6, T1 ~ T4, E1 ~ E4.
  • Page 9 1. Since “AppData\Roaming” is hidden file, you need to type all directory paths. 2. You should put your user name at ”your_name” EX) C:\Users\steve\AppData\Roaming\Microsoft\FSX\Controls 2. Open “Standard.XML” with NOTEPAD. (see below) Tel : +82-31-284-7090~91 Fax : +82-31-284-7092 E-mail : tech@vrinsight.com Web site : www.vrinsight.com www.vrinsight.com...
  • Page 10 3. Go to EDIT -> FIND. Type “usb pad” and click “Find Text”. 4. Then you will find below. Tel : +82-31-284-7090~91 Fax : +82-31-284-7092 E-mail : tech@vrinsight.com Web site : www.vrinsight.com www.vrinsight.com...
  • Page 11 5. Select from <Entry> <Index>5</Index> <Down>AP_MASTER</Down> </Entry> < <Entry> <Index>29</Index> <Down>VOR1_OBI_DEC</Down> <DownRpt>2</DownRpt> </Entry> 6. Delete the selected texts. Tel : +82-31-284-7090~91 Fax : +82-31-284-7092 E-mail : tech@vrinsight.com Web site : www.vrinsight.com www.vrinsight.com...
  • Page 12 7. Insert your DVD. Find “Standard.XML” file and open it with NOTEPAD. < 8. Copy from <Entry> <Index>5</Index> <Down>AP_MASTER</Down> </Entry> <Entry> <Entry> <Index>29</Index> <Down>VOR1_OBI_DEC</Down> <DownRpt>2</DownRpt> </Entry> Tel : +82-31-284-7090~91 Fax : +82-31-284-7092 E-mail : tech@vrinsight.com Web site : www.vrinsight.com www.vrinsight.com...
  • Page 13 NOTE : 1. When you delete the original text from C:\Users\your_name\AppData\Roaming\Microsoft\FSX\ Controls and paste the modified texts for MS panel to standard.XML file, be aware that deleting & pasting wrong texts may cause malfunction of other USB pads or Joysticks.
  • Page 14 Key assignments as of provided example for MSFSX are; MS panel MSFSX AP_MASTER AP_N1_HOLD AP_AIRSPEED_HOLD AP_HDG_HOLD AP_LOC_HOLD AP_APR_HOLD T1 (ON/OFF) T2 (ON/OFF) T3 (UP) T3 (DOWN) T4 (UP) AP_ALT_HOLD AP_ALT_HOLD AUTO_THROTTLE_ARM AUTO_THROTTLE_ARM TOGGLE_FLIGHT_DIRECTOR TOGGLE_FLIGHT_DIRECTOR FLAPS_INCR FLAPS_INCR FLAPS_DECR FLAPS_DECR GEAR_DOWN GEAR_DOWN...
  • Page 15 Microsoft’s flight Simulator Controls in name order ABORT ANTI_ICE_SET_ENG1 ADD_FUEL_QUANTITY ANTI_ICE_SET_ENG2 ADD_FUEL_QUANTITY ANTI_ICE_SET_ENG3 ANTI_ICE_SET_ENG4 ADF1_RADIO_TENTHS_DEC ANTI_ICE_TOGGLE ADF1_RADIO_TENTHS_INC ANTI_ICE_TOGGLE_ENG1 ADF1_WHOLE_DEC ANTI_ICE_TOGGLE_ENG2 ADF1_WHOLE_INC ANTI_ICE_TOGGLE_ENG3 ADF2_100_DEC ANTI_ICE_TOGGLE_ENG4 ADF2_100_INC AP_AIRSPEED_HOLD ADF2_10_DEC AP_AIRSPEED_OFF ADF2_10_INC AP_AIRSPEED_ON ADF2_1_DEC AP_AIRSPEED_SET ADF2_1_INC AP_ALT_HOLD ADF2_COMPLETE_SET AP_ALT_HOLD_OFF ADF2_FRACT_DEC_CARRY AP_ALT_HOLD_ON ADF2_FRACT_INC_CARRY AP_ALT_VAR_DEC ADF2_RADIO_TENTHS_DEC AP_ALT_VAR_INC ADF2_RADIO_TENTHS_INC...
  • Page 16 Microsoft’s flight Simulator Controls in name order (cont’d) AP_NAV1_HOLD_ON ATC_MENU_3 AP_NAV_SELECT_SET ATC_MENU_4 AP_PANEL_ALTITUDE_HOLD ATC_MENU_5 AP_PANEL_ALTITUDE_OFF ATC_MENU_6 AP_PANEL_ALTITUDE_ON ATC_MENU_7 AP_PANEL_ALTITUDE_SET ATC_MENU_8 AP_PANEL_CRUISE_SPEED_TOGGLE ATC_MENU_9 AP_PANEL_HEADING_HOLD ATTITUDE_BARS_POSITION_DOWN AP_PANEL_HEADING_OFF ATTITUDE_BARS_POSITION_UP AP_PANEL_HEADING_ON ATTITUDE_CAGE_BUTTON AP_PANEL_HEADING_SET AUTO_THROTTLE_ARM AP_PANEL_MACH_HOLD AUTO_THROTTLE_TO_GA AP_PANEL_MACH_HOLD_TOGGLE AUTOCOORD_OFF AP_PANEL_MACH_OFF AUTOCOORD_ON AP_PANEL_MACH_ON AUTOCOORD_SET AP_PANEL_MACH_SET AUTOCOORD_TOGGLE AP_PANEL_MAX_SPEED_TOGGLE AUTOPILOT_OFF AP_PANEL_SPEED_ACQ_TOGGLE...
  • Page 17 Microsoft’s flight Simulator Controls in name order (cont’d) AXIS_THROTTLE3_SET COM_STBY_RADIO_SWAP AXIS_THROTTLE4_SET COM_STBY_RADIO_WHOLE_DECREASE AXIS_THROTTLE_SET COM_STBY_RADIO_WHOLE_INCREASE BAROMETRIC COWLFLAP1_SET BRAKES COWLFLAP2_SET BRAKES_LEFT COWLFLAP3_SET BRAKES_RIGHT COWLFLAP4_SET CENTER_AILER_RUDDER CROSS_FEED_LEFT_TO_RIGHT CENTER_NT361_CHECK CROSS_FEED_OFF CENTERING_AILERON_SET CROSS_FEED_OPEN CENTERING_ELEVATOR_SET CROSS_FEED_RIGHT_TO_LEFT CENTERING_RUDDER_SET CROSS_FEED_TOGGLE CHASE_VIEW_TOGGLE DEC_COWL_FLAPS CHVPP_AP_ALT_WING DEC_COWL_FLAPS1 CHVPP_LEFT_HAT_DOWN DEC_COWL_FLAPS2 CHVPP_LEFT_HAT_UP DEC_COWL_FLAPS3 CLOCK_HOURS_DEC DEC_COWL_FLAPS4 CLOCK_HOURS_INC...
  • Page 18 Microsoft’s flight Simulator Controls in name order (cont’d) ELEV_UP FUEL_SELECTOR_4_RIGHT_AUX ELEVATOR_SET FUEL_SELECTOR_4_SET ELEVATOR_TRIM_SET FUEL_SELECTOR_ALL ENGINE FUEL_SELECTOR_CENTER ENGINE_AUTO_SHUTDOWN FUEL_SELECTOR_LEFT ENGINE_AUTO_START FUEL_SELECTOR_LEFT_AUX ENGINE_PRIMER FUEL_SELECTOR_OFF EXIT FUEL_SELECTOR_RIGHT EYEPOINT_BACK FUEL_SELECTOR_RIGHT_AUX EYEPOINT_DOWN FUEL_SELECTOR_SET EYEPOINT_FORWARD FULL_WINDOW_TOGGLE EYEPOINT_LEFT GEAR_DOWN EYEPOINT_RESET GEAR_PUMP EYEPOINT_RIGHT GEAR_SET EYEPOINT_UP GEAR_TOGGLE FLAPS_1 GEAR_UP FLAPS_2 GPS_ACTIVATE_BUTTON FLAPS_3...
  • Page 19 Microsoft’s flight Simulator Controls in name order (cont’d) GYRO_DRIFT_INC MAGNETO1_RIGHT GYRO_DRIFT_SET MAGNETO1_SET HEADING_BUG_DEC MAGNETO1_START HEADING_BUG_INC MAGNETO2_BOTH HEADING_BUG_SELECT MAGNETO2_DECR HEADING_BUG_SET MAGNETO2_INCR HEADING_GYRO_SET MAGNETO2_LEFT HUD_COLOR MAGNETO2_OFF INC_COWL_FLAPS MAGNETO2_RIGHT INC_COWL_FLAPS1 MAGNETO2_SET INC_COWL_FLAPS2 MAGNETO2_START INC_COWL_FLAPS3 MAGNETO3_BOTH INC_COWL_FLAPS4 MAGNETO3_DECR INCREASE_AUTOBRAKE_CONTROL MAGNETO3_INCR INCREASE_CONCORDE_NOSE_VISOR MAGNETO3_LEFT INCREASE_CONCORDE_NOSE_VISOR_FULLY MAGNETO3_OFF INCREASE_DECISION_HEIGHT MAGNETO3_RIGHT INCREASE_HELO_GOV_BEEP...
  • Page 20 Microsoft’s flight Simulator Controls in name order (cont’d) MIXTURE2_DECR NAV2_RADIO_SWAP MIXTURE2_DECR_SMALL NAV2_RADIO_WHOLE_DEC MIXTURE2_INCR NAV2_RADIO_WHOLE_INC MIXTURE2_INCR_SMALL NAV2_STBY_SET MIXTURE2_LEAN NAV_RADIO MIXTURE2_RICH NEW_MAP MIXTURE2_SET NEW_VIEW MIXTURE3_DECR NEXT_VIEW MIXTURE3_DECR_SMALL PAN_DOWN MIXTURE3_INCR PAN_LEFT MIXTURE3_INCR_SMALL PAN_LEFT_DOWN MIXTURE3_LEAN PAN_LEFT_UP MIXTURE3_RICH PAN_RESET MIXTURE3_SET PAN_RESET_COCKPIT MIXTURE4_DECR PAN_RIGHT MIXTURE4_DECR_SMALL PAN_RIGHT_DOWN MIXTURE4_INCR PAN_RIGHT_UP MIXTURE4_INCR_SMALL...
  • Page 21 Microsoft’s flight Simulator Controls in name order (cont’d) PLUS RADIO_DME1_IDENT_SET PLUS_SHIFT RADIO_DME1_IDENT_TOGGLE PREV_VIEW RADIO_DME2_IDENT_DISABLE PROP_PITCH1_DECR RADIO_DME2_IDENT_ENABLE PROP_PITCH1_DECR_SMALL RADIO_DME2_IDENT_SET PROP_PITCH1_HI RADIO_DME2_IDENT_TOGGLE PROP_PITCH1_INCR RADIO_VOR1_IDENT_DISABLE PROP_PITCH1_INCR_SMALL RADIO_VOR1_IDENT_ENABLE PROP_PITCH1_LO RADIO_VOR1_IDENT_SET PROP_PITCH1_SET RADIO_VOR1_IDENT_TOGGLE PROP_PITCH2_DECR RADIO_VOR2_IDENT_DISABLE PROP_PITCH2_DECR_SMALL RADIO_VOR2_IDENT_ENABLE PROP_PITCH2_HI RADIO_VOR2_IDENT_SET PROP_PITCH2_INCR RADIO_VOR2_IDENT_TOGGLE PROP_PITCH2_INCR_SMALL READOUTS_FLIGHT PROP_PITCH2_LO READOUTS_SLEW PROP_PITCH2_SET REFRESH_SCENERY PROP_PITCH3_DECR...
  • Page 22 Microsoft’s flight Simulator Controls in name order (cont’d) SET_FUEL_TRANSFER_AFT SOUND_TOGGLE SET_FUEL_TRANSFER_AUTO SPOILERS_ARM_OFF SET_FUEL_TRANSFER_FORWARD SPOILERS_ARM_ON SET_FUEL_TRANSFER_OFF SPOILERS_ARM_SET SIM_RATE SPOILERS_ARM_TOGGLE SIM_RATE_DECR SPOILERS_OFF SIM_RATE_INCR SPOILERS_ON SIM_RATE_SET SPOILERS_SET SIM_RESET SPOILERS_TOGGLE SITUATION_RESET STROBES_OFF SITUATION_SAVE STROBES_ON SLEW_AHEAD_MINUS STROBES_SET SLEW_AHEAD_PLUS STROBES_TOGGLE SLEW_ALTIT_DN_FAST SYNC_FLIGHT_DIRECTOR_PITCH SLEW_ALTIT_DN_SLOW THROTTLE1_CUT SLEW_ALTIT_FREEZE THROTTLE1_DECR SLEW_ALTIT_MINUS THROTTLE1_DECR_SMALL SLEW_ALTIT_PLUS...
  • Page 23 Microsoft’s flight Simulator Controls in name order (cont’d) THROTTLE_70 TOGGLE_FUEL_VALVE_ENG3 THROTTLE_80 TOGGLE_FUEL_VALVE_ENG4 THROTTLE_90 TOGGLE_GPS_DRIVES_NAV1 THROTTLE_CUT TOGGLE_HYDRAULIC_FAILURE THROTTLE_DECR TOGGLE_LEFT_BRAKE_FAILURE THROTTLE_DECR_SMALL TOGGLE_LOGO_LIGHTS THROTTLE_FULL TOGGLE_MASTER_ALTERNATOR THROTTLE_INCR TOGGLE_MASTER_BATTERY THROTTLE_INCR_SMALL TOGGLE_MASTER_BATTERY_ALTERNATOR THROTTLE_SET TOGGLE_MASTER_IGNITION_SWITCH TOGGLE_AFTERBURNER TOGGLE_NAV_LIGHTS TOGGLE_AFTERBURNER1 TOGGLE_PITOT_BLOCKAGE TOGGLE_AFTERBURNER2 TOGGLE_PRIMER TOGGLE_AFTERBURNER3 TOGGLE_PRIMER1 TOGGLE_AFTERBURNER4 TOGGLE_PRIMER2 TOGGLE_AIRCRAFT_EXIT TOGGLE_PRIMER3 TOGGLE_AIRCRAFT_LABELS TOGGLE_PRIMER4 TOGGLE_ALL_STARTERS...
