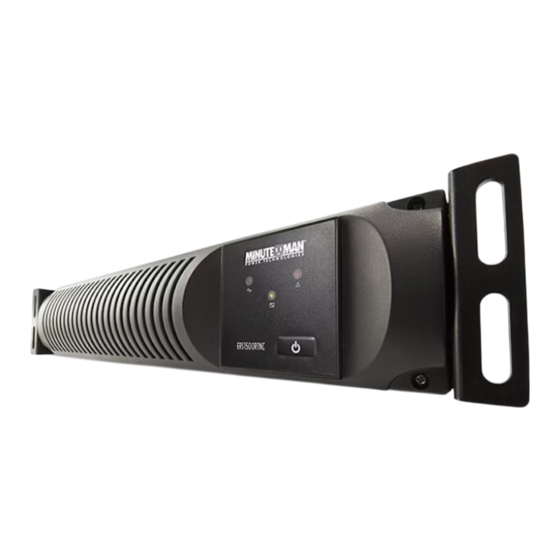

- Page 1 ERS1500RTNC Series UPS User's Manual Para Systems, Inc. 1455 LeMay Dr. Carrollton, TX 75007 Phone: 1-972-446-7363 Fax: 1-972-446-9011 Internet: minutemanups.com UPS Sizing: sizemyups.com PN - 34000438 R2...
- Page 2 Introduction Controls and Indicators Installation Operation Troubleshooting Replacing the Battery Obtaining Service Specifications Limited Product Warranty A1. Declaration of Conformity...
- Page 3 To reduce the risk of electrical shock with the installation of this UPS equipment and the connected equipment, the user must ensure that the Please read this manual before installing your UPS, model ERS1500RTNC as combined sum of the AC leakage current does not exceed 3.5mA.
- Page 4 ON / OFF / TEST BUTTON: To turn the UPS on: press and hold the On/Off/ Test Button until the alarm sounds one beep and then release. The UPS will perform a five second self-test. Once the UPS has passed its self-test the UPS will provide an output and the load will be powered.
- Page 5 Model # Input Power Plug Output Power Receptacles NEMA 5-15P 6-NEMA 5-15R Battery Backup & Surge ERS1500RTNC W/10 ft cord 2-NEMA 5-15R Surge Only INSTALLATION PLACEMENT 1. AC normal and Boost/Buck mode LED (Green): Illuminates when the UPS is in the AC normal mode and flashs when the UPS is in the Boost or the Buck mode.
- Page 6 RACKMOUNT CONFIGURATION INSTALLATION This UPS comes with mounting brackets for the standard 19" (46.5cm) rack. Be sure to read the installation placement and all the cautions before installing The mounting brackets to fit a 23" (59.2cm) standard rack are also available. the UPS.
- Page 7 4. Use the template to mark the screw hole position on the wall. CAUTION, 2. The LED face plate can be rotated to read in the upright position. Remove you should always were protective gear for your hands and eyes when the front panel from the UPS.
- Page 8 CONNECTING THE UPS TO AN AC SOURCE CAUTION - To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit over-current protection in accordance with the National Electric Code, ANSI/NFPA 70. Plug the UPS into a two pole, three wire, grounded receptacle only.
- Page 9 SNMP CARD TEST BUTTON included SNMP Card is web based and is used for monitoring and control- To perform a ten-second user invoked battery test: With the UPS in the AC normal ling the UPS. See the SNMP Card's Manual for configuring and setting up the mode, press and hold the On/Off/Test Button until the alarm sounds four beeps, and SNMP Card.
- Page 10 REPLACING THE BATTERY What To Do Possible Cause Symptom (QUALIFIED SERVICE PERSONNEL ONLY) Press, hold and then release UPS will not turn on On/Off/Test button not Please read all of the WARNINGS and CAUTIONS before attempting to service the On/Off button to start UPS pressed the batteries.
- Page 11 7. Lay the front panel on top of the UPS. installed in the UPS. These batteries have pressure operated vents. These UPSs contain sealed non-spillable maintenance-free lead FIG. 2 acid batteries. ERS1500RTNC Model # Battery Module Part # BM0057 BATTERY REPLACEMENT PROCEDURE...
- Page 12 5. Mark the RMA # on the outside of all packages. The factory cannot accept any package without the RMA # marked on the outside. 6. Return the unit by insured, prepaid carrier to: Para Systems Inc. MINUTEMAN UPS 1809 W. Frankford Road, Suite 150 Carrollton, TX 75007 ATTN: RMA # _______...
- Page 13 Typical Recharge Time (at SYSTEM SPECIFICATIONS From Full load discharge: 4-hours to 80%, 8-hours to 90% 25°C ambient temperature) Battery Module Part # BM0057 Model Number ERS1500RTNC Runtime: Half Load (at 25°C 13 - minutes ambient temperature) Topology Line-Interactive, Simulated Sine Wave Runtime: Full Load (at 25°C...
- Page 14 For equipment sites within the United States and Canada, this warranty covers depot repair or replacement of defective equipment at the Manufacturer’s Name: Para Systems, Inc. (MINUTEMAN UPS) discretion of Para Systems. Depot repair will be from the nearest authorized service cen- ter.
- Page 15 Notes: Notes:...
