INSTALLATION MANUAL
NOVA-EXT
Versatile Projector Mount
Model: NOVA-EXT
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
AUSTRALIA, NEW ZEALAND, OCEANIA
(DISTRIBUTOR)
P.O. Box 295
Mordialloc Victoria 3195
Australia
Phone: 039586 6330
www.premiermounts.com.au
Advertisement
Table of Contents
Related Manuals for Premier Mounts Nova-EXT
Summary of Contents for Premier Mounts Nova-EXT
-
Page 1: Installation Manual
INSTALLATION MANUAL NOVA-EXT Versatile Projector Mount Model: NOVA-EXT AUSTRALIA, NEW ZEALAND, OCEANIA NORTH AMERICA EUROPE (DISTRIBUTOR) 3130 East Miraloma Avenue Swallow House, P.O. Box 295 Anaheim, CA 92806 USA Shilton Industrial Estate, Mordialloc Victoria 3195 USA and Canada – Shilton, Coventry, England CV79JY... -
Page 2: Table Of Contents

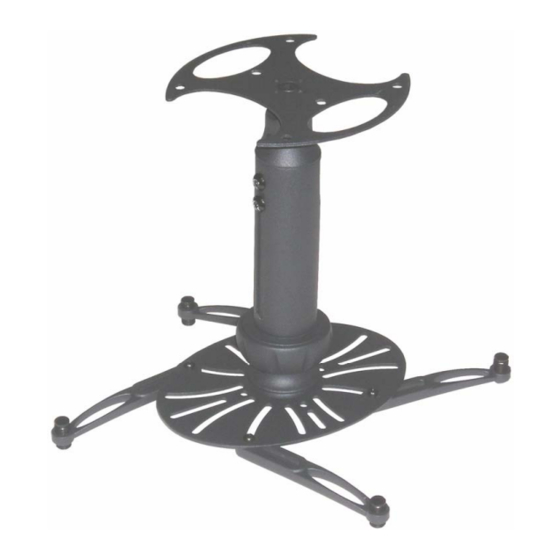

Congratulations on the purchase of your new Premier Mounts NOVA-EXT Versatile Projector Mount. The NOVA-EXT features our exclusive SpiroLock™ Technology, which provides the installer with quicker installation times and peace of mind. To truly appreciate the speed, style and versatility of the NOVA-EXT, please read this installation manual completely. -
Page 3: Parts List
Parts List NOTE: Please familiarize yourself with all components contained herein. NOTE: Please review all WARNING and CAUTION statements (see Page 2) before beginning the installation of the NOVA-EXT. M2.5 X 8mm Security Screw (Qty 4) NOVA-EXT Mount (Qty 1) -
Page 4: Installation Tools
NOVA-EXT Installation Tools Portable Drill Soft Material/ Blanket Pencil Tape Measure Ladder M5 Security Allen Wrench (Supplied) 1/8” Drill Bit (Wood Installation – Commercially Available) Masonry Bit (Concrete Installation – Commercially Available) Features Selecting the Proper Mounting Hardware Turn the projector over and locate the mounting points. -
Page 5: Attaching The Mount
Unpack the NOVA-EXT Mount and familiarize yourself with the components. Before proceeding, the SpiroLock™ must be separated (please refer to Disconnecting the SpiroLock™ Assembly, page 11). Please take time before you install the NOVA-EXT to determine the location of where the NOVA-EXT will be mounted. -
Page 6: Single Mounting Point Installation
NOVA-EXT Mounting Leg 6. Secure the legs to the projector plate by screwing M6 x 12mm security screws into the M6 square nut (do not overtighten) on the mounting legs. Tighten all security screws at this time. 7. Secure the legs to the projector plate by screwing M6 x 12mm security screws into the M6 square nut (do not overtighten) on the mounting legs. -
Page 7: Ceiling Installation
NOVA-EXT Ceiling Installation NOTE: During shipment, the NOVA-EXT comes assembled. Please refer to Page 11, “Disconnecting the SpiroLock™ Assembly” for instructions as to how the SpiroLock™ is disassembled. Wood studs: Where denoted with the letter ‘A’, mark these locations for wood stud installation. -
Page 8: Concrete Mounting
NOTE: The NOVA-EXT can be mounted to a ceiling with a minimum 6” thickness. Concrete wedge anchors must be used for concrete installation. It is recommended that ¼” wedge anchors be used. A masonry bit must be used to drill the pilot hole. -
Page 9: Adjusting The Projector
NOVA-EXT NOTE: order NOVA-EXT to connect, the four (4) notches that are located inside must be lined up. If they Mounting Notches are aligned properly, an audible “click” will be heard while the SpiroLock™ collar engages. 2. Push the two units together, until an audible ‘click’ will be heard (see NOTE), signifying that the SpiroLock™ assembly is together. -
Page 10: Safety Screw Installation
NOVA-EXT Safety Screw Installation M5 Allen Wrench 1. The M4 x 12mm safety screw (located on the SpiroLock™ collar) must be tightened securely before installation is complete. If the M4 x 12mm safety screw is not properly secured, there will be an increased risk of attachment failure, which could result in damage to the projector or personal injury. -
Page 11: Disconnecting The Spirolock™ Assembly
NOVA-EXT Disconnecting the SpiroLock™ Assembly 1. Place one hand under the projector (this hand will support the projector while it is being disconnected). 2. While holding the projector with one hand, grasp the SpiroLock™ collar and turn the collar counterclockwise. This will separate the two units. - Page 12 NOVA-EXT Once the SpiroLock™ Assembly is separated, place the projector on a soft flat surface. Page - 12 - Installation Manual...
-
Page 13: Height Adjustment
Height Adjustment M5 Allen Wrench To adjust the height of the NOVA-EXT, hold the weight of the projector and loosen the two (2) M8 x 12mm security screws. M5 Allen Wrench Slide the adjustable suspension neck into the desired position. -
Page 14: Optional Mounting Configurations
NOVA-EXT Optional Mounting Configurations You may use the NOVA-EXT with the following optional accessories. Please refer the Installation Instructions that come packaged with the following products. PP-FCTA PP-FCMA Page - 14 - Installation Manual... -
Page 15: Technical Specifications
NOVA-EXT Technical Specifications All measurements are inches (mm). Installation Manual Page - 15 -... -
Page 16: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
