CREATING POSITIVE CUSTOMER EXPERIENCES
INSTALLATION INSTRUCTIONS
SPI-EXT

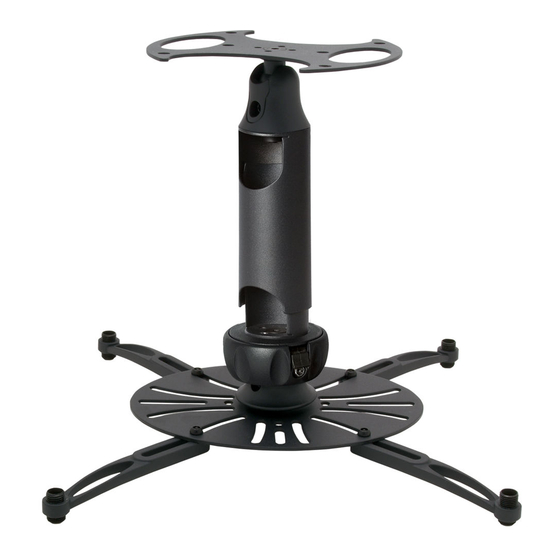

SpiroLock™ Universal Projector Mount With Extension
NORTH AMERICA
EUROPE
3130 East Miraloma Avenue
Swallow House,
Anaheim, CA 92806 USA
Shilton Industrial Estate,
USA and Canada
Shilton, Coventry, England CV79JY
Phone: 1.800.368.9700
Phone: +44 (0) 2476 614700
Fax: 1.800.832.4888
Fax: +44 (0) 2476 614710
Other Locations
Phone: (001).714.632.7100
Fax: (001).714.632.1044
9530-005-061-01
Advertisement
Table of Contents
Related Manuals for Premier Mounts SpiroLock SPI-EXT
Summary of Contents for Premier Mounts SpiroLock SPI-EXT
- Page 1 CREATING POSITIVE CUSTOMER EXPERIENCES INSTALLATION INSTRUCTIONS SPI-EXT SpiroLock™ Universal Projector Mount With Extension NORTH AMERICA EUROPE 3130 East Miraloma Avenue Swallow House, Anaheim, CA 92806 USA Shilton Industrial Estate, USA and Canada Shilton, Coventry, England CV79JY Phone: 1.800.368.9700 Phone: +44 (0) 2476 614700 Fax: 1.800.832.4888 Fax: +44 (0) 2476 614710 Other Locations...
-
Page 2: Table Of Contents
PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY... -
Page 3: Installation Tools
⅛˝ Wood Drill Bit Parts List Make sure your Premier Mounts product has the following hardware and components before beginning installation. If there are parts missing and/or damaged, stop the installation and call Premier Mounts at (800) 368-9700. SpiroLock™ With Extension Mount Hardware SpiroLock™... -
Page 4: Features
Combined with the numerous Adjustable Leveling Barrels projector plate mounting slots, the You can quickly level the mounting legs mounting legs allow for multiple without any specialized tools. mount configurations. Page 4 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com... -
Page 5: Installing The Spirolock™ With Extension Mount
Your SpiroLock™ mount may be secured to either a single ceiling stud or a solid surface ceiling, such as concrete. Please read these installation instructions once thoroughly before attempting to install your Premier Mounts product. Please take a minute to familiarize yourself with the contents of the package and make sure you have all the parts and tools you need to safely complete the installation. -
Page 6: Wood Stud Installation
‘wedging’ to take place, thereby reducing the likelihood of the material being split. It also reduces the possibility of the screw head getting sheared off by torque. Page 6 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com... -
Page 7: Solid Ceiling Installation
Both wedge anchors and masonry drill bits are not supplied. Continue on page 8. Example Wedge Anchors and Masonry Bit Not included Installation Instructions Page 7 Visit the Premier Mounts website at http://www.mounts.com... - Page 8 Do not tighten any of the wedge anchor nuts (and any washers) until all nuts and washers are threaded onto the shafts. Do not overtighten the wedge anchor nuts. Proceed to the “Attaching the Projector Plate” section. Page 8 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com...
-
Page 9: Attaching The Projector Plate
The number and placement of mounting points on projectors varies between projector manufacturers. Refer to you projector’s technical specifications for the number and location of the mounting points on your specific projector. Installation Instructions Page 9 Visit the Premier Mounts website at http://www.mounts.com... - Page 10 Place the SpiroLock™ Projector Plate on top of the mounting legs with the center of the plate as close as possible to the projector’s center of gravity. Front-to-Back Center of Gravity Page 10 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com...
- Page 11 Do not overtighten the M6 x 12mm screw. ® Insert one (1) Barrel Cap into the end of each leveling barrel. Proceed to the “Attaching the Projector to the Mount” section on page 12. Installation Instructions Page 11 Visit the Premier Mounts website at http://www.mounts.com...
-
Page 12: Single Mounting Point Installation
You will see the SpiroLock™ collar assembly rotate and there will be an audible “click”. Proceed to Step 3 If Yes, proceed to Step 3 Projector not shown for clarity. Page 12 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com... -
Page 13: Alignment & Fine-Tuning
Do not overtighten the M6 x 25mm Lock-It™ screw. Proceed to the “Disconnecting the Projector” section. M6 x 25mm Lock-It™ Screw M6 x 25mm Extension not shown Lock-It™ Screw M10 x 10mm Set Screw Installation Instructions Page 13 Visit the Premier Mounts website at http://www.mounts.com... -
Page 14: Removing The Projector
Use both hands to rotate the projector plate as shown to separate it from the SpiroLock™ collar assembly. ± Place the projector on a soft, flat surface and disassemble the mounting legs from the projector, if neccessary. Page 14 Installation Instructions Visit the Premier Mounts website at http://www.mounts.com... -
Page 15: Installing The Lock-It™ Security Barrel
Optional security configurations (not supplied) include: - PCB-CSL1 Clockwise - Padlock (Combination or Keyed) Technical Specifications All measurements are in inches. 4.50 Ø .328 14.75 4.50 17.25 15.11 11.07 Installation Instructions Page 15 Visit the Premier Mounts website at http://www.mounts.com... -
Page 16: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
