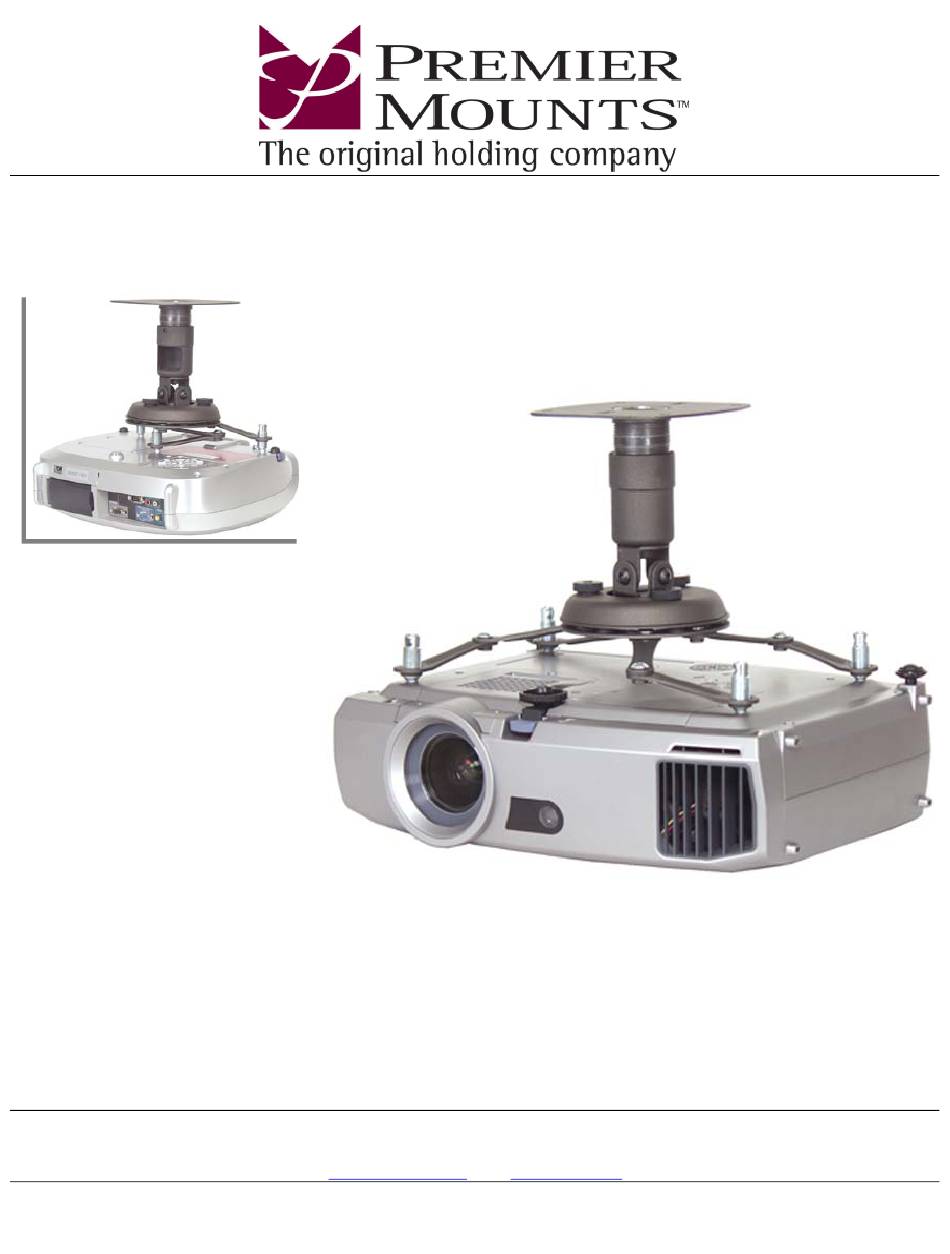

- Page 1 INSTALLATION MANUAL PBC-UMS Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com Rev. 01...
- Page 2 PBL-110 Projector Mount Page 2 Installation Manual...
-
Page 3: Table Of Contents
Securing the Projector to the Upper Assembly ........................13 Final Adjustments ..................................14 Plastic Cap Installation ................................15 Troubleshooting Procedures ..............................16 Technical Specifications ................................17 Warranty ...................................... 18 Contact Premier Mounts ................................18 Notes ......................................19 Installation Manual Page 3... -
Page 4: Warning Statements
PBC-UMS Warning Statements THE CEILING STRUCTURE MUST BE CAPABLE OF SUPPORTING 25 LBS. IF NOT, THE WARNING: CEILING MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH. -
Page 5: Parts List
This mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700. Upper Universal ®... - Page 6 PBC-UMS Single Wooden Stud Mounts Option 1 Solid Structure Mounting Points M3 Allen Wrench Allen Wrench 1.5” Nipple (NTP) Tension Knobs Safety Knob Security Screws Leveling Screws Universal Mounting bracket Leg Assembly Projector (not included) Tri-Lock Opening NOTE: The four (two-piece)
-
Page 7: Features
PBC-UMS Features Congratulations on your recent purchase of the your PBC-UMS universal projector ceiling mount kit. This unit is designed for projectors weighing 25lbs. (13kg) or less. The mount is easy to install and is loaded with additional installation features built into the mount. These features allow you to optimize the projector’s position to the screen for the best projector performance and picture quality. -
Page 8: Projector Preparation
PBC-UMS Projector Preparation CAUTION: THE PROJECTOR IS FRAGILE; HANDLE WITH CARE AT ALL TIMES. NOTE: Review the projector manufacturers operation manual and refer to the ceiling mount installation section. Important information concerning the installation dimensions (i.e. distance from the screen to the lens of the projector, top of the lens placement to the top screen, etc.) will be found in this section. - Page 9 PBC-UMS Upper Assembly Tension Knobs Safety Knob Rotate 180° To unlock Tri-Lock Opening Figure 2. Mount Preparation Installation Manual Page 9...
-
Page 10: Bracket Installation
PBC-UMS Bracket Installation NOTE: The two-piece mounting kegs are designed to allow for the positioning of each leg around projector air vents located on the base of the projector. Where applicable, each leg mount may be shortened by removing the locking screw. This will allow for a better bracket fit, overall. -
Page 11: Leveling The Mounting Bracket
PBC-UMS Leveling the Mounting Bracket CAUTION: Secure but do not over tighten the mounting hardware. Failure to do so will result in damaging the threads in the projector. Rotate the leveling barrels to level the mounting bracket. Position the mounting bracket so that it avoids most, if not all, ventilation points (including lamp and filter access doors). -
Page 12: Securing The Upper Assembly Ceiling Plate
PBC-UMS Securing the Upper Assembly Ceiling Plate Review your projector’s owner’s manual to determine what distance is recommended from the front of the lens to the edge of the screen for best picture ratio. NOTE: However in most home theater and office ceiling mount installations this is not practical as the projector would be to low within the room. -
Page 13: Securing The Projector To The Upper Assembly
PBC-UMS Securing the Projector to the Upper Assembly Make sure the three-knurl knobs are loosened to fully expose to the “tri-lock” mounting plate in the base of the upper assembly. Carefully lift the projector and insert the mounting bracket mating special tri-lock cutout into the mating portion of the upper assembly. -
Page 14: Final Adjustments
PBC-UMS Final Adjustments With the projector secured in the mount and power on and signal supplied to the projector you can now proceed with the final height, tilt, roll and yaw to optimize the projected image. Wooden Stud The height can be adjusted by rotating... -
Page 15: Plastic Cap Installation
PBC-UMS Plastic Cap Installation Once all the final adjustments have been finished, install the plastic caps on the leveling barrels (Figure 8). Figure 8. Plastic Cap Installation Installation Manual Page 15... -
Page 16: Troubleshooting Procedures
PBC-UMS Troubleshooting Procedures QUESTION: My projector mount must be set at an angle to be viewed properly on the wall, but the projector will not hold at this position. Why is this? ANSWER: The angle adjustments are not tight; they must be tightened. -
Page 17: Technical Specifications
PBC-UMS Technical Specifications Figure 9. Technical Dimensions Installation Manual Page 17... -
Page 18: Warranty
Limited Lifetime Warranty All products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury. Contact Premier Mounts In the event of missing and/or damage equipment, or technical questions, the following information can help in the completion of the installation. -
Page 19: Notes
PBC-UMS Notes LISTED E176225 Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com Rev. 01 Installation Manual Page 19...
