M5 x 12mm Phillips
Head Screws with
Integrated Split and
Flat Washers (Qty 4)
Left and Right Lateral Shift
Adapter Plates
NOTE:
To attach the PDS-LAT to a projector bracket, please refer to the PSD Series Installation Instructions.
NOTE:
To use the security features, please refer to the LOCK-IT™ Security System Installation Instructions.
NOTE:
Before beginning the installation, place each nylon sleeve over each one of the M5 x 12mm Phillips Head screws or
security screws.
1.
Insert the four (4) M5 x 12mm Phillips Head screws (A) through the slide slot on the PDS Projector Mount (2 screws per
side). Do not overtighten.
2.
Insert the four (4) M6 x 12mm Phillips Head screws (B). These four screws will attach the lateral shift adapters (D) to the
PDS Projector Mount (E) - (1 bracket per side; 2 screws per side). Do not overtighten.
3.
Insert the two (2) M6 Knurl Knobs (C). These two knurl knobs will be inserted on the inside of the Lateral Shift Adapter.
There will be one M6 x 23mm Knurl Knob per side. Finger tighten only. Do not remove them once installed.
4.
To adjust the lateral shift adapters, loosen the four (4) M5 x 12mm Phillips Head screws (A). Do not remove them.
5.
Slide the projector unit either left or right. Once the desired lateral position has been determined, tighten the M5 x 12mm
Phillips Head screws (A).
6.
Once all roll and tilt adjustments have been made, tighten all hardware.
9530-000-002-00
Installation Instructions
INSTALLATION INSTRUCTIONS

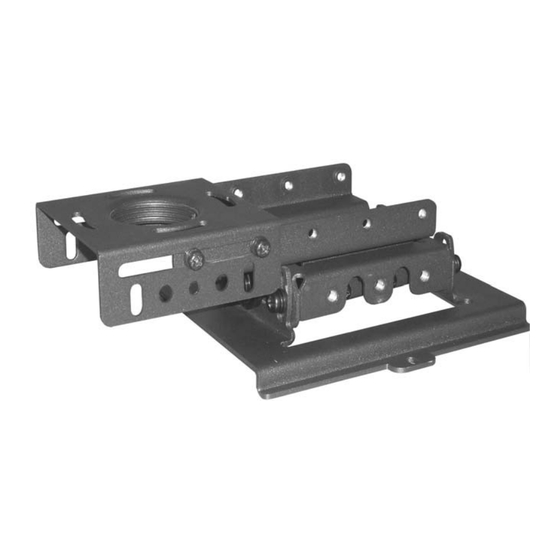

Lateral Shift Adapter
Model: PDS-LAT
Parts List
M6 x 12m Phillips
Head Screws (Qty 4)-
These come with the
PDS Base Box
M6 x 23mm Knurl
Knobs (Qty 2)
Lateral Shift Adapter
Nylon
Sleeves
(Qty 4)
M5
x
12mm
Security Screws
(Qty 4)
Page 1
Advertisement
Table of Contents
Related Manuals for Premier Mounts PDS-LAT
Summary of Contents for Premier Mounts PDS-LAT
- Page 1 Security Screws Adapter Plates (Qty 4) NOTE: To attach the PDS-LAT to a projector bracket, please refer to the PSD Series Installation Instructions. NOTE: To use the security features, please refer to the LOCK-IT™ Security System Installation Instructions. NOTE: Before beginning the installation, place each nylon sleeve over each one of the M5 x 12mm Phillips Head screws or security screws.
- Page 2 Lateral Shift Adapter NOTE: To determine which lateral shift adapter plate is right and left, there will be a letter stamped inside each plate: ‘R’ for Right ‘L’ for Left Standard Installation LOCK-IT™ Security System A. M5x12mm Phillips Head Screw with Integrated Split and Flat Washers A.
