Removal Of Dn-Board; Removal Of Pb-Board; Removal Of H5-Board - Panasonic TH-103PF10WK Service Manual

HX-Board, and then remove HX-Board.
7.8.

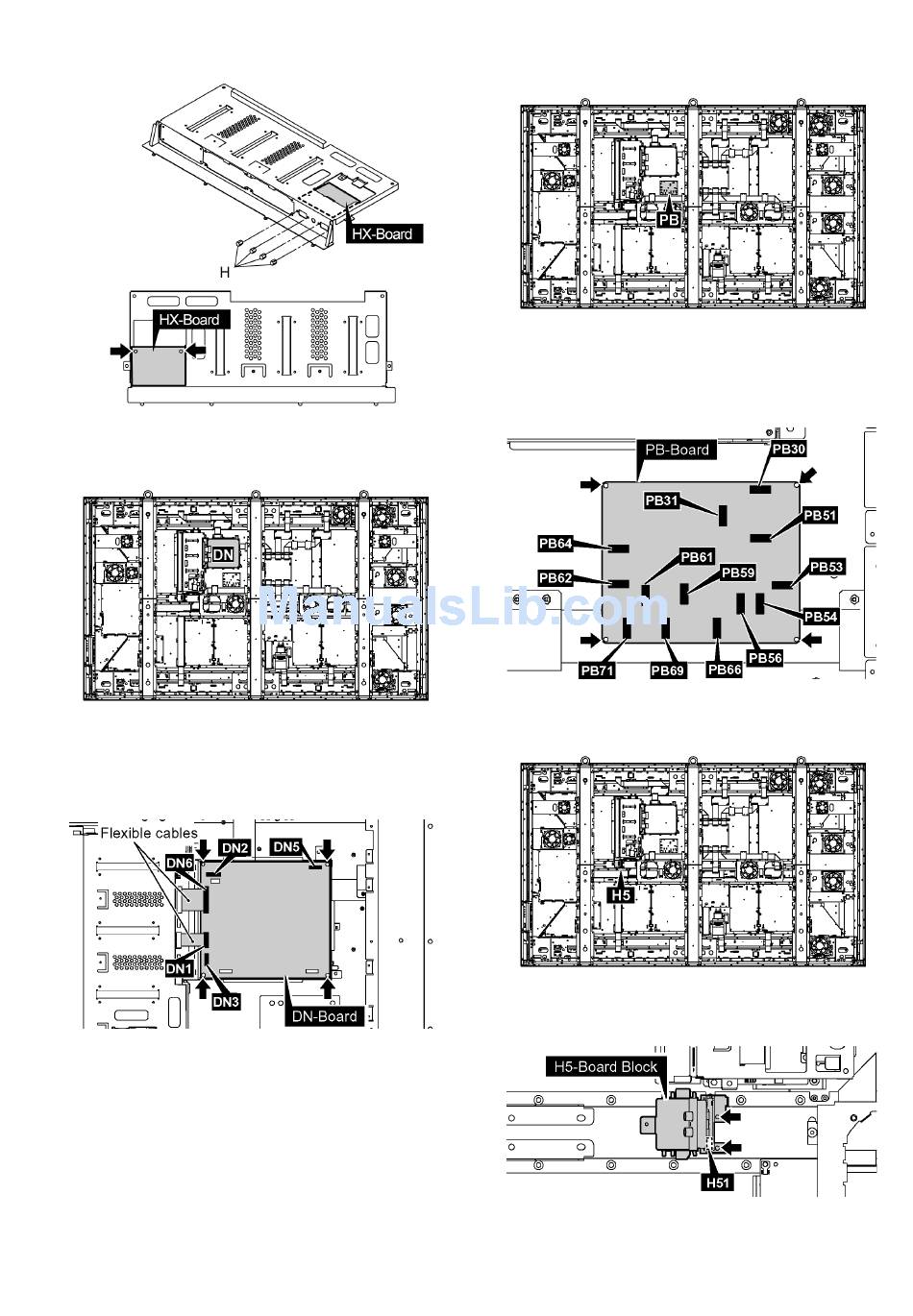

Removal of DN-Board

1. Remove the flexible cables from the connectors (DN1,
DN6).
2. Disconnect the connectors (DN2, DN3, DN5).
3. Remove 4 screws and then remove DN-Board.
7.9.

Removal of PB-Board

1. Disconnect the connectors (PB30, PB31, PB51, PB53,
PB54, PB56, PB59, PB61, PB62, PB64, PB66, PB69,
PB71).
2. Remove 4 screws and then remove PB-Board.

7.10. Removal of H5-Board

1. Disconnect a connector (H51).
2. Remove 2 screws and then remove H5-Board Block.
29
TH-103PF10WK/TK/RK
