7.42. Removal of CD-Board

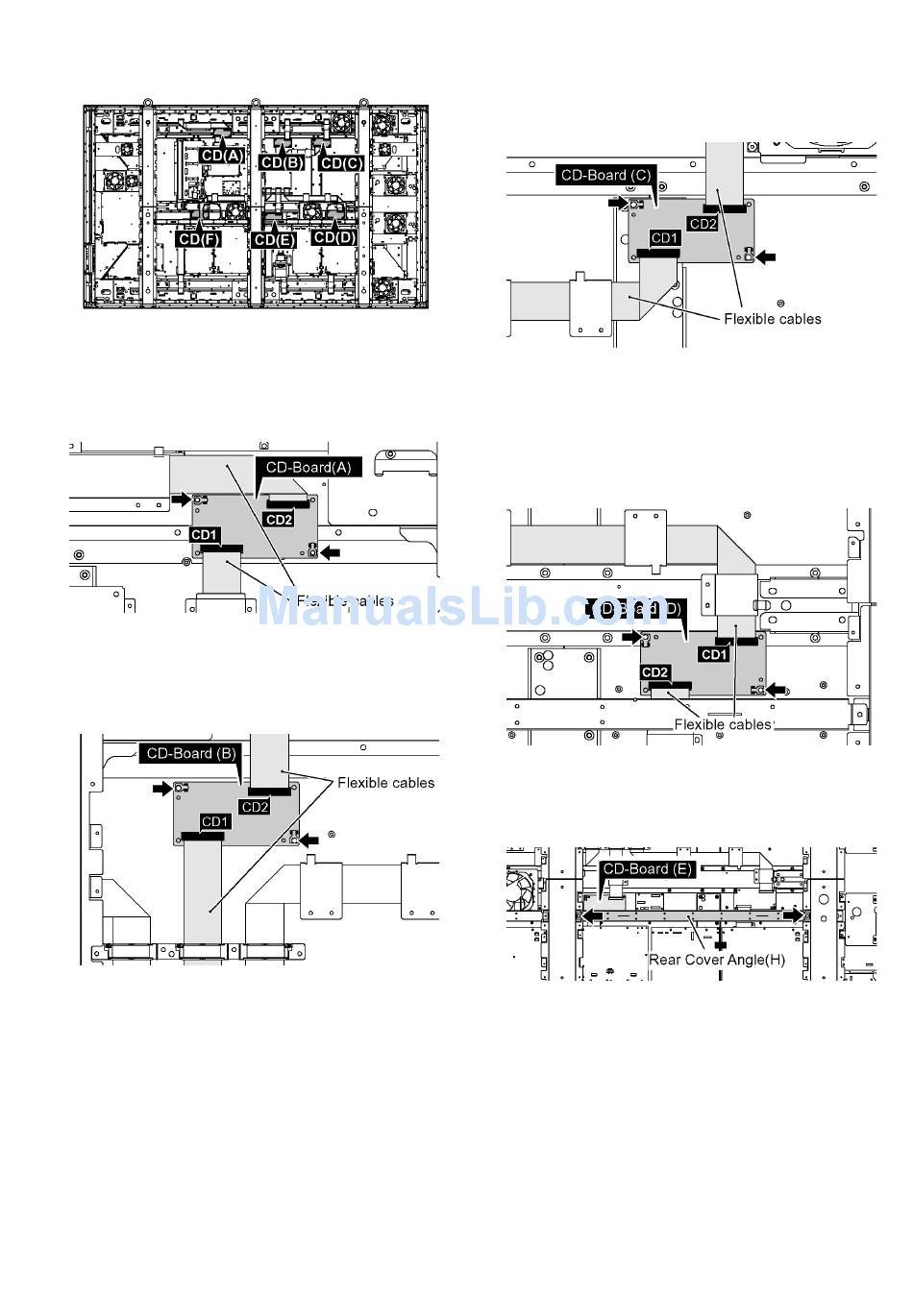

7.42.1. Removal of CD-Board (A)
1. Remove the flexible cables from the connectors (CD1,
CD2).
2. Remove 2 screws and then remove CD-Board (A).
7.42.2. Removal of CD-Board (B)
1. Remove the flexible cables from the connectors (CD1,
CD2).
2. Remove 2 screws and then remove CD-Board (B).
7.42.3. Removal of CD-Board (C)
1. Remove the flexible cables from the connectors (CD1,
CD2).
2. Remove 2 screws and then remove CD-Board (C).
7.42.4. Removal of CD-Board (D)
1. Remove the Fan Block (H).
(Refer to Removal of the Fan)
2. Remove the flexible cables from the connectors (CD1,
CD2).
3. Remove 2 screws and then remove CD-Board (D).
7.42.5. Removal of CD-Board (E)
1. Remove 2 screws and then remove the Rear Cover Angle
(H).
