3) Place the hob in the installation opening and push it down so that the hob is
resting firmly on the cabinet, as show in the illustration. The side springs will hold
it in place.

Installation options

On base cabinet with door

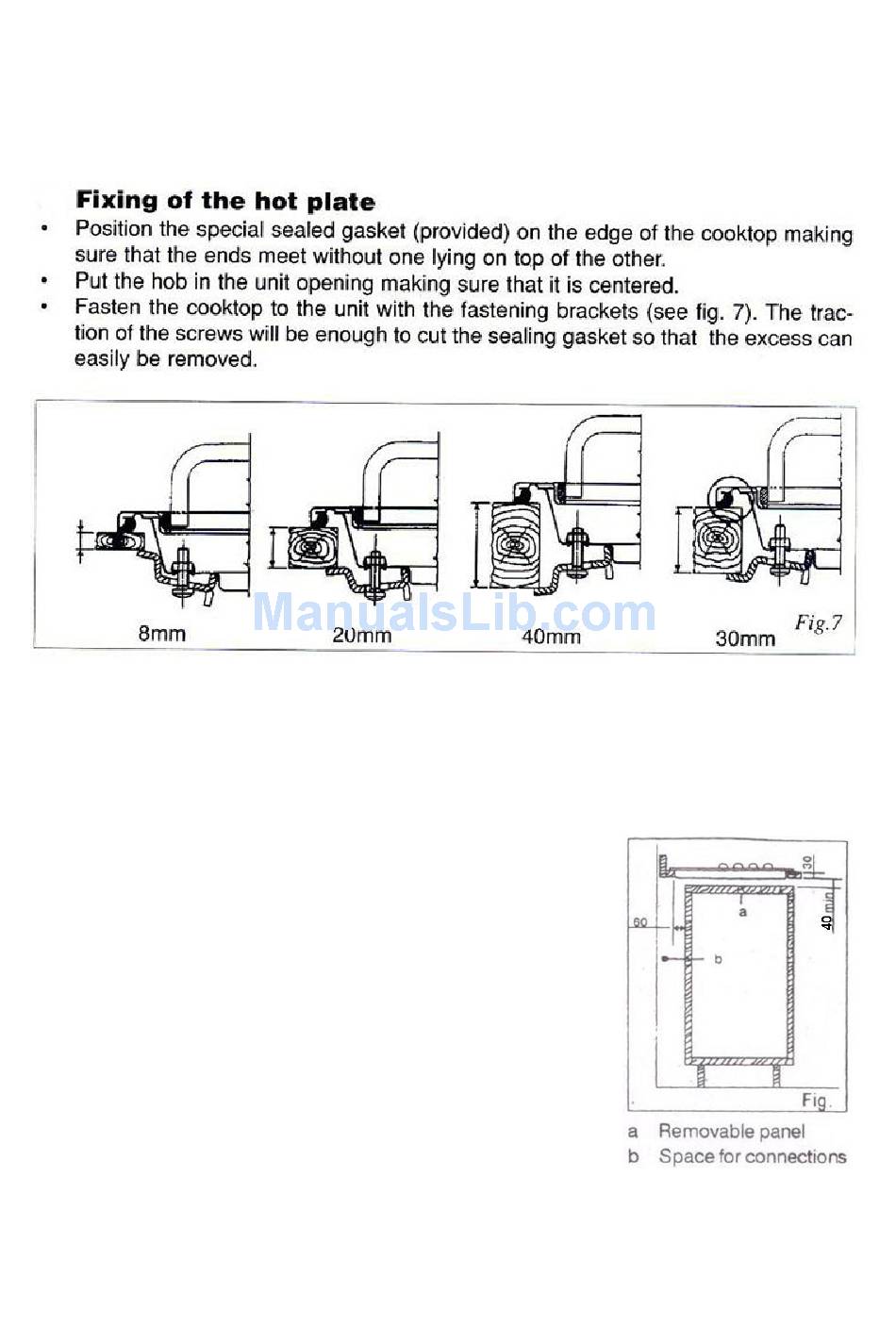

When constructing the cabinet, suitable precautions must
be taken to prevent contact with the casing of the hob,
which becomes
recommended method for overcoming this problem is
illustrated in fig.1
The panel underneath the hob must be easily removable to
allow the hob to be locked in position and released in case
of servicing work

On base cabinet with oven

very hot during operation. The
15
