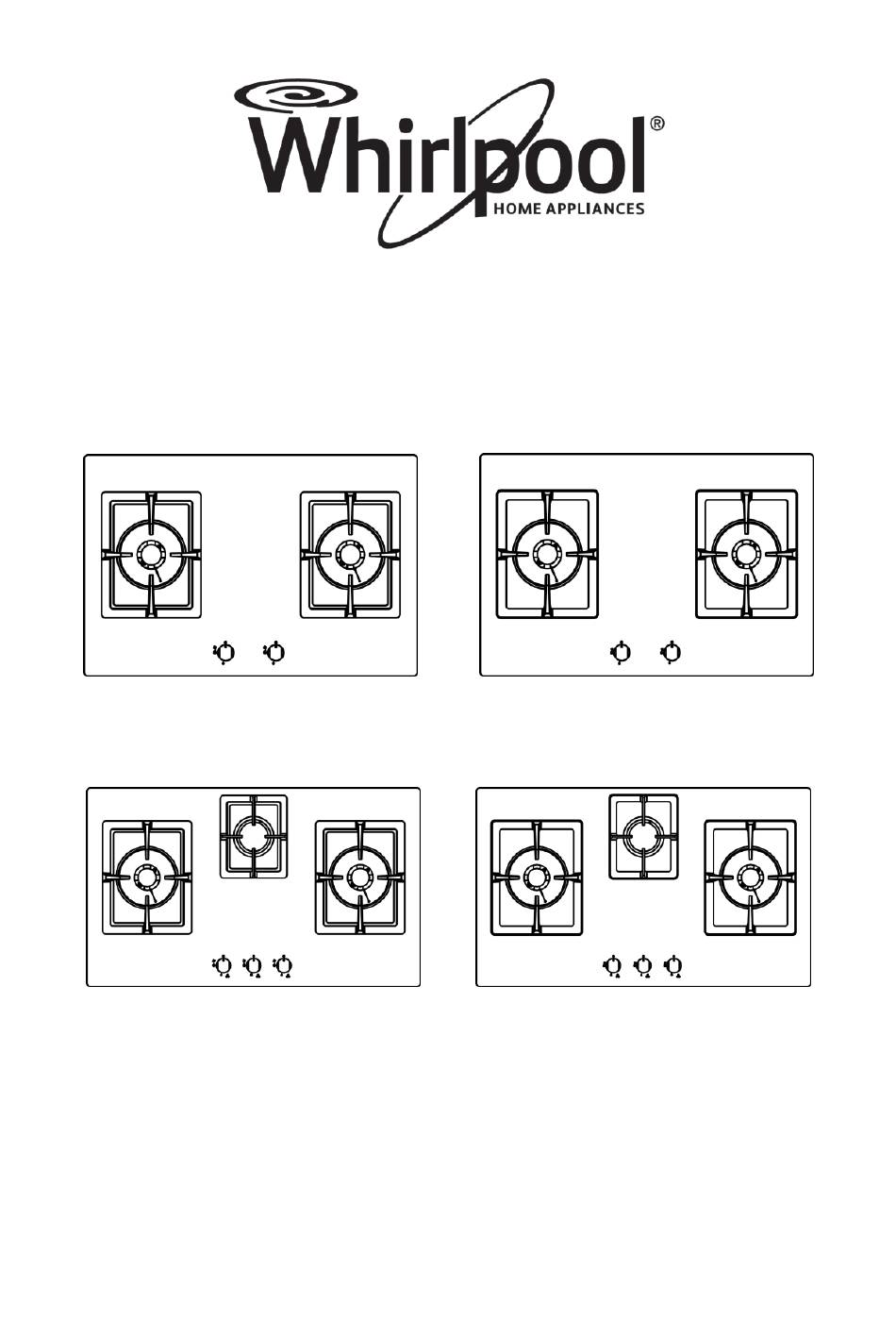

- Page 1 Instruction for use AKC7250 C/BL AKC7250 C/IX AKC9350 C/BL AKC9350 C/IX...
- Page 2 These instructions have been drawn up for your safety and that of others. You are therefore requested to read them carefully before installing and using the appliance. Keep this instruction manual for future reference as necessary. If the appliance is sold or moved, make sure that the manual is handed over to the new user .
- Page 3 “The adjustment conditions fir this appliance are stated on the label ( or data plate)”, “This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation”. If, in order to comply with this requirement, a new plate or label is required.
- Page 4 part should be fitted when young children are likely to be present.” The reference number of the part and information on how to obtain it shall be given in the instructions. If a glass shut-down lid, according to the requirements in 5.2.8.1, carries the symbol described in Annex F, this is symbol shall be reproduced in the instructions for use and maintenance together with an explanation of its meaning.
- Page 5 · If you use an electrical socket close to this appliance, take care that the cables of the appliances you are using are far away from the hot parts of this appliance. Children’s safety · This appliance must only be used by adults. Make sure that children do not touch the controls or play with the appliance.
- Page 6 Contents For the User For your safety………………………………………………………………… 2 Description of the hob………………………………………………………… 7 Instructions for use …………………………………………………………… 7 Cleaning and maintenance……………………………………………………… 9 For the Installation Technician Technical data………………………………………………………………… 11 Instructions for the installation technician…………………………………… 11 Adapting to the different types of gas………………………………………… 14 Building into fitted kitchen units………………………………………………...
- Page 7 Description of the hob 1. Hob 2. Semi-rapid burner* 3. High power burner 4. Burner control knobs * Applicable to AKC9350 C/IX & AKC9350 C/BL only. Fig. 1 A: Enameled inner cap B: High power burner inner copper coil C: Enameled outer cap D: High power burner outer copper coil E: High power burner aluminum cover F: Thermocouple...
- Page 8 Lighting the burners To obtain a flame more easily, light the burner before placing a cooking utensil on the pan stand To light a burner, proceed as follow: for version with lighting integrated in the control knob push the knob of the burner fully down and turn it anticlockwise to the “maximum flow”...
- Page 9 Cleaning and maintenance Before each operation, disconnect the appliance from the electrical mains and allow it to cool down. General cleaning Wash the flame caps and burner caps often with boiling water and detergent, taking care to remove all deposits. The hob pan stands can also be washed in a dishwasher.
- Page 10 are correctly positioned. Fig. 3 Routine maintenance Have the condition and efficiency of the gas pipe and the pressure regulator (if installed) checked periodically. If anomalies are found, do not repairs but have the faulty part replaced. To ensure good performance and safety, the gas regulator taps must be greased periodically.
- Page 11 If necessary, you may find your nearest Centre by consulting the” Warranty conditions –Service centers”. Technical Data Dimensions in mm: Installation opening (W x H) AKC7250 C/IX or AKC7250 C/BL: (680-750) x (420-490) mm AKC9350 C/IX or AKC9350 C/BL: (770-840) x (420-490) mm G110 OUTPUT OUTPUT...
- Page 12 Before any procedure, it is important to check that the appliance is DISCONNECTED from the electrical mains. The manufacturer declines all responsibility for any damage arising from installation in breach of the regulations in force or from failure to comply with the accident prevention regulations.
- Page 13 Connection to the gas supply The gas connection must be made in accordance with the local standards. When installing, fit a safety tap at the end of the pipeline. The appliance leaves the factory tested and set for the type of gas indicated on the plate inside the bottom guard close to the gas connection pipe.
- Page 14 Adapting to the different types of gas Changing the nozzles 1) Remove the pan standee. 2) Remove the burner caps and flame caps from the burners. 3) Use a size 7 socket wrench to unscrew and remove the nozzles, replacing them with those corresponding to the type of gas to be used (see the table ).
- Page 15 Building into fitted kitchen units AKC7250 C/BL AKC7250 C/IX AKC9350 C/BL AKC9350 C/IX...
- Page 16 These hobs are designed for installation in fitted kitchen units up to 600mm deep with suitable characteristics. Any cabinet side panels taller than the height of the hob itself must be at least 150mm away from the opening into which the hob is inserted. The dimensions of the hob and the installation opening are shown in the illustration.
- Page 17 Installation options On base cabinet with door When constructing the cabinet, suitable precautions must be taken to prevent contact with the casing of the hob, which becomes very hot during operation. The recommended method for overcoming this problem is illustrated in fig.1. The panel underneath the hob must be easily removable to allow the hob to be locked in position and released in case of servicing work.
- Page 18 connections of the hob and oven must be made separately both for electrical reasons and to simplify removal of the oven through the front of the cabinet. Wall cabinets or extractor hoods must be at least 650 mm above the hob.
