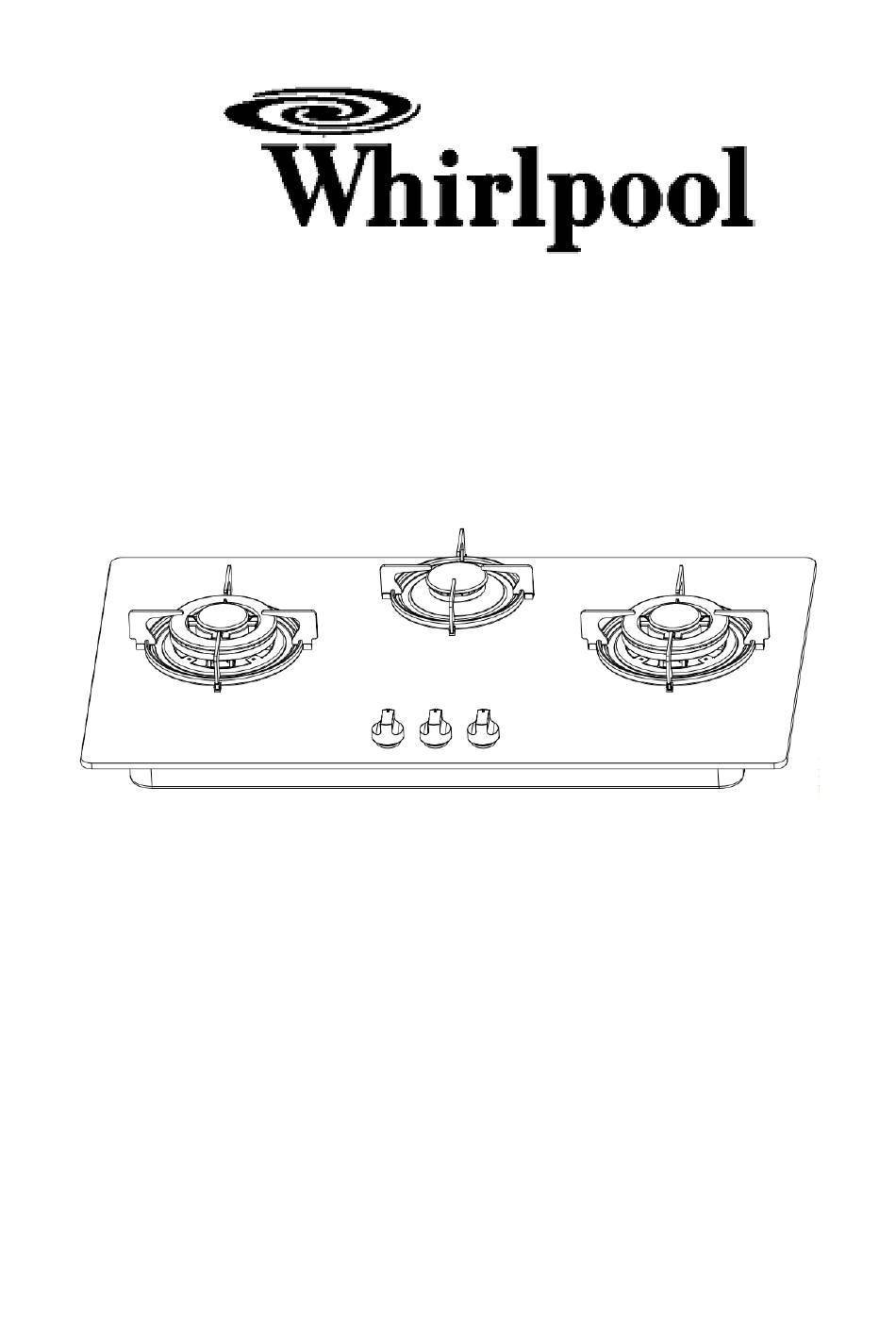

- Page 1 SERVICE MANUAL 90 cm 3 burners, glass hob AKC 930C/BL Model AKC 930C/BL Version 8904123064487 Page Technical Data Exploded view Spare parts list Wiring diagram...
- Page 2 Technical Data Dimensions in mm. OUTPUT OUTPUT 20mbar 30mbar BURNER TYPE Cons Cons Nozzle Nozzle (mm) (mm) Medium Semi-rapid 1.75 0.65 0.97 0.167 0.65 Burner Triple flame burner 3.80 1.35 0.362 0.98 Gas intake connection G1/2″ Electricity supply 220-240v~50/60Hz...
- Page 3 Exploded view...
- Page 4 Spare parts list Parts Code Description 32247025 2 PCS ENAMEL PAN SUPPORTS 32210001 2 PCS 328 INTERNAL LID FOR TRIPLE RING BURNER 32211003 2 PCS 328 EXTERNAL LID FOR TRIPLE RING BURNER 32220005 2 PCS FLAME SPREADER FOR TRIPPLE RING BURNER 32233019 2 PCS WATER PROOF PLATE FOR TRIPPLE RING BURNER 32101002 2 PCS...
- Page 5 32312005 1 PCS 403A THERMOCOUPLE 32300015 2 PCS SPARK PIN 32300006 1 PCS 403A SPARK PIN 32243002 1 PCS INLET ELBOW 32258016 2 PCS RUBBER WASHER 32160087 1 PCS INLET PIPE 32011002 1 PCS METAL COVER OF THE WIRE BOX 33305002 1 PCS CONNECTOR 32307004 1 PCS...
