- Page 1 User Guide Guide de l'Utilisateur Manual do Usuário EFFECTS BOOSTED LINE SELECTOR BL-1...
- Page 2 Product Overwiew Thank you for choosing an Onerr product. The ONERR Boosted Line Selector BL-1 was designed to give musicians three very useful options: A/B box: Connect either two instruments to a single amplifier (with control of Level and Treble of one of the instruments) or one instrument to two amplifiers.
-
Page 3: Panel Descriptions

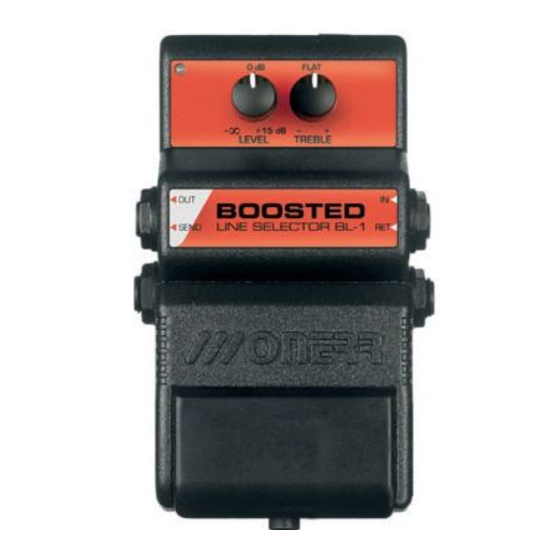

Panel Descriptions AC adaptor jack J1 AC adaptor jack J2 Led indicator on/off Level knob Treble knob Input jack Output jack Send jack Return jack Pedal switch Thumbscrew... - Page 4 Pedal Descriptions AC adaptor Jack (J1): Accepts connection of an Pedal: Depress to turn on/off the pedal. external AC adaptor. Level: Adjusts the level of the RETURN jack. The center AC adaptor Jack (J2): Used to distribute the voltage position is set to 0 dB. Turning it to the left decreases to your pedal chain.
-
Page 5: Power Supply Specifications
When using an AC adaptor is sure to use a compatible DC output jack. model for your unit, otherwise irreparable damage may be caused. DC input Jack. Optional Onerr AC adaptor: Onerr PA-21 or PA-23. Connect your AC adaptor here. Power supply specifications Output voltage: 9VDC Current capacity: 100ma (minimum) - Page 6 Using as an A/B Box (1) AC adaptor Onerr model PA 21 or PA 23 Guitar 1 Guitar 2 Amplifier...
- Page 7 Using as an A/B Box (2) Adaptor AC/DC Onerr PA-21 / PA-23 Guitar Amp 1 Amp 2...
- Page 8 Using as a Booster Adaptor AC/DC Onerr PA-21 / PA-23 Guitar Amplifier...
- Page 9 Using as a Boosted effect loop Adaptor AC/DC Onerr PA-21 / PA-23 Guitar 1 Amplifier External Loop Effect...
- Page 10 Notes: - Only use reliable cords to connect your pedals. This is to be sure you won´t get troubles while playing. - Before powering your pedals, make all necessary linking connections. In case of you need to change any connection, do not forget to turn the power off in order to not cause any damage to your units.
- Page 11 Before using this product be sure to read Use only reliable AC adaptors with proper and check all instructions of this Owner's line voltage. Non-reliable AC adaptors manual. with different polarity or voltage may cause damage or malfunction and void the warranty.
-
Page 12: Warranty
Warranty Microtronix Eletrônica Ltda warrants this unit to be free from defects in materials and workmanship for a period of 1 (one) year from date of first purchase. This warranty does not include any kind of damage resulting from accidents, misuse, abusie, alteration to the internal circuitry or vital parts and damages caused by non-reliable AC adaptors. -
Page 13: Specifications
Specifications* Power supply: AC adaptor (Onerr model PA-21 or PA-23) Current draw: 25 mA Controls: Level and Treble Switch: Turn on/off effect Indicators: Indicator on/off led Jacks: input, output, send, return, J1 and J2 AC Input impedance: 470 kOhm (minimum)
