  • Page 1 User Guide Guide de l'Utilisateur Manual do Usuário EFFECTS HYDROGEN FLANGER HF-1...
  • Page 2 Product Overwiew Thank you for choosing an Onerr product. Hydrogen Flanger HF-1 effect is produced by combining the original signal of your instrument with an electronically processed delayed signal. Using just three knob controls, the HF-1 gives you the ability to create a variety of sounds from dynamic jet-plane effects to short delay, chorus and vibrato styles.
  • Page 3: Panel Descriptions

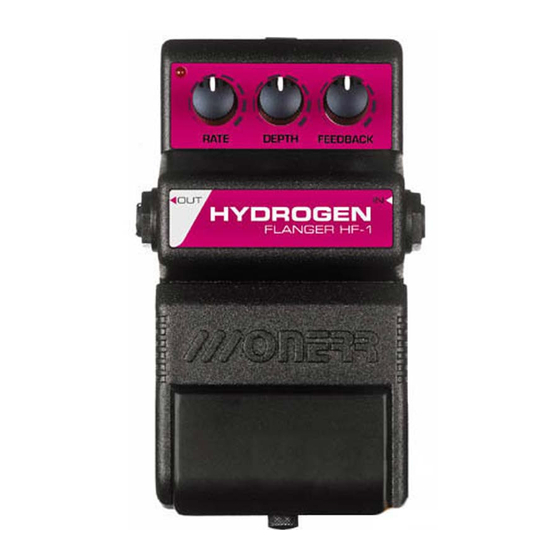

    Panel Descriptions AC adaptor jack Led indicator on/off Rate knob Feedback knob Depth knob Output jack Input jack Pedal switch Thumbscrew...
  • Page 4 Pedal Descriptions AC adaptor jack: Accepts connection of an external Depth: Gives you control of the depth of flanger effect. AC adaptor. By using an AC adaptor you can play without At minimum the effect close to zero. Effect increases as being concerned about the battery life.
  • Page 5 Connect the snap cord to the battery, observing the proper Thumbscrew polarity. When the pedal is not in use ONERR highly suggests removing the battery from its compartment to prevent possibility of leaking and damage to this unit. Battery...
  • Page 6: Power Supply Specifications

    Warning: When using an AC adaptor is sure to use a compatible model for your unit, otherwise irreparable damage may be caused. Optional Onerr AC adaptor: Onerr PA-21 or PA-23. AC input jack Power supply specifications: Output voltage: 9 VDC Current capacity: 100 mA (minimum) Output plug: 2.1 x 5.5 mm (negative center)
  • Page 7: Making The Connections

    Making the Connections Keyboard Onerr Guitar AC adaptor PA-21 / PA-23 Bass Amplifier...
  • Page 8 Notes: - Only use reliable cords to connect your pedals. This is to be sure you won´t get troubles while playing. - Before powering your pedals, make all necessary linking connections. In case of you need to change any connection, do not forget to turn the power off in order to not cause any damage to your units.
  • Page 9 Before using this product be sure to read Use only reliable AC adaptors with proper and check all instructions of this Owner's line voltage. Non-reliable AC adaptors manual. with different polarity or voltage may cause damage or malfunction and void the warranty.
  • Page 10: Warranty

    Warranty Microtronix Eletrônica Ltda warrants this unit to be free from defects in materials and workmanship for a period of 1 (one) year from date of first purchase. This warranty does not include any kind of damage resulting from accidents, misuse, abusie, alteration to the internal circuitry or vital parts and damages caused by non-reliable AC adaptors.
  • Page 11: Specifications

    Specifications* Power supply: DC 9v alkaline or AC adaptor (Onerr model PA-21 or PA -23) Current draw: 20 mA Controls: Rate, Depth and Feedback Switch: turn on/off effect Indicators: indicator on/off led Jacks: input, output and AC adaptor Input impedance: >470 kOhm Frequency response: 20 to 20K Hz Modulation speed: 300ms to 35sec.
