1995
WCF23RC
F04
F05
F06
F07
F14
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCF23RC 1995 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winnebago WCF23RC 1995

Summary of Contents for Winnebago WCF23RC 1995

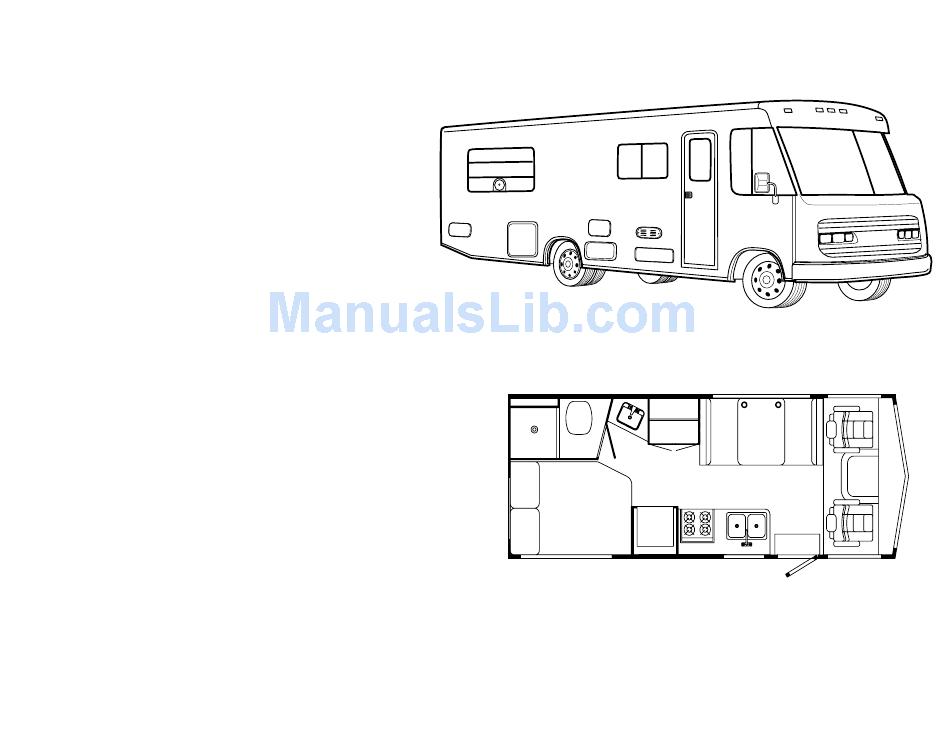

  • Page 1 1995 WCF23RC COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 2: Accessories Group

    EA SPEAKER - 4" X 6", OVAL - MAGNADYNE F46XB-12 110470-01-01A EA GRILLE-SPEAKER, OVAL - 4" X 6" - BLACK - MAGNADYNE G46WI CB ANTENNA KEY PART NUMBER U/M DESCRIPTION 105248-01-000 EA ANTENNA-CB, ADVANCE 8604 104498-01-000 EA BRACKET-ANTENNA MOUNT, STEEL COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 3 EA PLATE-CEILING, WINEGARD# 3200608 076319-01-704 EA BEARING-NYLON, 1.25" OD - WINEGARD# 3200657 076319-01-713 EA PLATE-BASE, STEEL - WINEGARD# 3100523 076319-01-703 EA BEARING-NYLON, 5" OD - WINEGARD# 3200656 076319-01-714 EA HOUSING-ROTATING GEAR - WINEGARD# 2200049 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 4: Bath Group

    EA COVER-SCREW, #8 - PLASTIC - OFF WHITE 075452-02-000 EA HOLDER-TOILET TISSUE, BRASS 100357-01-000 EA ROD-TOWEL, BRASS W/ENDS BENT FOR BACK OF BATH DOOR 075454-02-000 EA RING-TOWEL, W/MOUNTING HARDWARE - BRASS M87868-05-E07 EA DOOR-BATH 094485-03-01A EA KNOB-DOOR,BRASS - THUNADER L132PB COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 5: Bedroom Group

    EA CABINET-OVERHEAD, W/O DOORS OR HARDWARE M04169-02-C05 EA DOUBLE BED TOP M04169-03-C05 EA DOUBLE BED TOP P02963-01-E07 EA CABINET-DOUBLE BED W/O TOPS 089076-08-000 EA SUPPORT-BED, H-CHANNEL - 1.96" X 72.7" - ALUMINUM - OFF WHITE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 6: Chassis Group

    EA PIN-HITCH, 3/16 WIRE 034512-01-000 EA PIN-LOCKING-DRAWBAR 107707-01-000 EA HITCH ASM W/O DRAWBAR 103099-01-02A EA BUMPER-REAR, OFF WHITE 102945-04-000 EA BRACKET ASM-BUMPER, REAR 113589-02-000 EA CONNECTOR-SOCKET, TRAILER - GENERAL 433601 113589-01-000 EA CONNECTOR-PLUG, TRAILER - GENERAL 433501 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 7: Patio Entertainment Center

    EA COMPARTMENT-EXTERIOR SHOWER, OFF WHITE - PLASTIC 017516-01-000 EA FLAP-MUD, 14" X 18" - BLACK 020167-04-000 EA GUARD-DIRT 056748-01-000 EA PLUG-CAP, 1.5" DIAMETER - BLACK 115361-01-01A EA PLUG-PLASTIC, .55" DIAMETER HOLE - CAPLUG# W-5 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 8 EA BRACKET-LOWER PASSENGER SIDE 107433-02-C82 EA DOOR ASM-LP, W/HINGE, LATCH, CRADLE, SPRINGS, BOLTS & SEAL 097207-03-02A EA HINGE-CONTINUOUS, LP DOOR, BLACK 097207-03-01A EA HINGE-CONTINUOUS, LP DOOR, UNPAINTED 107421-01-000 EA PLATE-STRIKE, LP DOOR - BLACK COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 9: Exhaust System

    EA CLAMP-EXHAUST, 3" - GUILLOTINE STYLE 117048-01-000 EA PIPE-EXHAUST, TAIL - 3" ID X 74.4" 114678-01-02B EA HANGER-EXHAUST, Z - STEEL - EUROPEAN DIESEL OPTION 095190-01-000 EA HANGER-EXHAUST, 4" X 1.4" 096054-04-000 EA HANGER-EXHAUST, 5" X .8" COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 10 16" CHEVY WHEEL COVERS KEY PART NUMBER U/M DESCRIPTION 109443-05-000 EA WHEEL COVER - 4/SET, 16" SS - DICOR SHFM16 109443-05-700 EA COVER-WHEEL, 16" - SHFM16-CVR 109443-05-701 EA LUG NUT COVER-ABS, (PLATED) - SP-FM-LNC COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 11: Curtain & Cushion Group

    YD FABRIC-UPHOLSTERY, PATTERN VELOUR - 54" WIDE (F05) THE WINDOW. 108446-57-000 YD FABRIC-UPHOLSTERY, PATTERN WOVEN - 54" WIDE (F06) 108446-D6-000 YD FABRIC-UPHOLSTERY, RACE CARS - 54" WIDE (F07) 108446-76-000 YD FABRIC-UPHOLSTERY, RANDOM WOVEN - 54" WIDE (F14) COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 12 FROM: 07-25-94 THRU: 99-99-99 112986-04-F06 EA CURTAIN - 29.5" X 6", PLEATED TOP - POCKET BOTTOM (F06) FROM: 07-25-94 THRU: 99-99-99 112986-04-F27 EA CURTAIN - 29.5" X 6", PLEATED TOP - POCKET BOTTOM (F07) COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 13 EA PANEL-LEG, TWO SIDED 31.5" LONG - PLASTIC - BLACK 089916-01-000 EA MOUNT-WINDOW LEG, 23.75" - ALUMINUM - BLACK 096843-01-000 EA SPRING-REWIND, ROLLER SHADE 102075-03-01A EA ROD-CURTAIN, SHOWER - OFF WHITE 009112-01-000 EA FLANGE - 1" SHOWER CURTAIN ROD, PLASTIC - OFF WHITE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 14: Dinette Cushions

    EA COVER-SEAT CUSHION, 23" X 38" X 5" (F05) M88927-87-F06 EA COVER-SEAT CUSHION, 23" X 38" X 5" (F06) M88927-87-F27 EA COVER-SEAT CUSHION, 23" X 38" X 5" (F07) M88927-87-F32 EA COVER-SEAT CUSHION, 23" X 38" X 5" (F14) COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 15 EA ARMREST-RIGHT, BUCKET SEAT (F26) 007221-01-000 EA SPACER-SEAT, ADJUSTER 111320-03-F06 EA ARMREST-RIGHT, BUCKET SEAT (F27) 089323-01-000 FT STRIP-POLYENTHYLENE, J-CHANEL - FLEX-O-LATORS P11320-03-F24 EA COVER-ARMREST, RIGHT (F24) 114889-01-000 EA STOP BAR-UNIVERSAL, SHROCK P11320-03-E04 EA COVER-ARMREST, RIGHT (F25) COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 16: Dinette Group

    EA CABINET ASM-SEAT BASE LEFT M04174-43-E07 EA CABINET ASM-SEAT BACK LEFT 081518-01-E04 EA SEAT-TOP, DINETTE - PLYWOOD 058331-47-000 EA MIRROR-GLASS, SAFETY - 562 MM X 384 MM 105004-01-02A EA MOLDING-MIRROR, VINYL WRAPPED - OAK COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 17: Drivers Compartment Group

    EA TRIM - WINDSHIELD - UPPER INNER - RIGHT - OFF WHITE 079765-07-000 EA TRIM - WINDSHIELD - CENTER INNER - OFF WHITE 078579-08-000 EA TRIM - WINDSHIELD - UPPER INNER - LEFT - OFF WHITE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 18 103498-06-000 EA BOOT-STEERING COLUMN, BLACK VINYL - CHEVY 111521-01-04A EA COVER-STEERING COLUMN, BLACK PLASTIC - FORD 112634-01-01A EA TRIM-STEERING COLUMN, RH BLACK PLASTIC - FORD 112634-02-01A EA TRIM-STEERING COLUMN, LH BLACK PLASTIC - FORD COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 19 EA FILM-BLACK, 1" X 1.75" 077031-03-000 EA FILM-WHITE, .75" X 1" 077539-01-000 EA BRACKET-MOUNTING, DASH PANEL - L/SHAPED - 2.5" X 1" X 1.5" 103603-01-000 EA BULB-12V, #74 - .12A WEDGE - GE 22-25 - USED IN DASH COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 20: Exterior Lights

    EA BULB - 12V, #194 - .27 AMP - BAYONETTE 102540-01-000 EA SEAL-SCREW, ROUND - RUBBER 102541-01-000 EA GASKET-CLEARANCE LIGHT 102582-01-000 EA BRACKET-LIGHT, CLEARANCE - L-SHAPED METAL - 2.2" X 4.7" 112823-01-000 EA SPLICE-REDUCER, 16-14 T0 18-22 - ETC BA-631X 067789-02-000 EA SOCKET-LAMP COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 21 EA PLATE-SWITCH, 3 GANG - POLISH BRASS - JENSEN 112824-01-02A EA COVER-EXTERIOR DUPLEX RECEPTACLE, OFF WHITE - P&S 3780-SC-CW 098351-06-01A EA PLATE-SWITCH, 2 GANG W/LABEL - JENSEN - POLISHED BRASS 108355-01-000 EA HOUSING-SWITCH - CARLING VCH COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 22 EA WIRE ASSEMBLY-MONITOR PANEL, W/3 WIRES & ORANGE RESISTOR - LVS ORANGE RESISTOR W/3 (ORANGE-GREEN-BLUE) WIRES 108303-01-000 EA WIRE ASSEMBLY-REAR AUTO HEATER 102636-01-000 EA WIRE ASSEMBLY-CLEARANCE LAMPS 111915-01-000 EA WIRE ASSEMBLY-DAY RUN LAMPS, FUSE P03783-01-000 EA WIRE ASSEMBLY-HEADLAMP COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 23 EA HOUSING - 1 POSITION, 75 AMP - AMP 53884-1 106006-01-000 EA HOUSING - 1 POSITION, FEMALE - PACKARD 12015952 113468-01-000 EA HOUSING - 2 POSITION, FEMALE - 56-SERIES - PACKARD 02965981 USED ON WIPER/WASHER WIRE ASM COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 24: Exterior Body Group

    FT TRIM-BACKWALL, 1.4" WIDE X 8' LONG - OFF WHITE PLASTIC 069726-02-000 EA BUMPER - .88" DIAMETER X .40", BLACK P04042-01-E07 EA ROOF-W/O VENTS (F04/F05/F06/F07/F14) M07426-17-F04 EA ROOF-W/O VENTS (F04/F05/F06) - EUROPEAN OPTION P04042-02-F04 EA ROOF-W/O VENTS (F04/F05/F06) - JAPAN OPTION COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 25 EA PLATE-HEADLAMP, QUAD - DRIVER - UNPAINTED - STEEL 110691-01-01A EA BRACKET-SPRING, HEADLAMP - DRIVER OR PASSENGER SIDE - UNPAINTED 110782-01-000 EA ANGLE-SUPPORT, HEADLAMP - STEEL 110783-01-01A EA BRACKET-HEADLAMP, QUAD - PASSENGER - UNPAINTED 110783-02-01A EA BRACKET-HEADLAMP, QUAD - DRIVER - UNPAINTED COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 26 FROM: 10-11-94 THRU: 99-99-99 072878-01-000 EA INSULATION-SOUND BARRIER PAD, .058" X 33 X 58" 105077-01-000 EA FOAM-COVE, ROOF - 8' LONG - EXPANDED POLYSTYRENE 105077-03-000 EA FOAM-PLUG, SIDEWALL TUBE - 1.77" LONG - EXPANDED POLYSTYRENE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 27 EA DECAL-TURBO DIESEL, OFF WHITE 116515-01-01A EA DECAL-MOTORSPORTS, FROSTY JACK (F07) 041561-03-000 EA PAINT - 16 OZ SPRAY, OFF WHITE - ACRYLIC ENAMEL 106315-06-000 FT POLYETHYLENE FILM TAPE - 4" - SHORE PAPER 30LD23 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 28: Galley Group

    FT SEAL-T, REFRIGERATOR CABINET - .6" WIDE TOP X 2" TAIL 108464-04-E08 EA COVER ASM-SINK (F04/F07) 108464-04-E38 EA COVER ASM-SINK (F05) 108464-04-E31 EA COVER ASM-SINK (F06) 108464-04-E32 EA COVER ASM-SINK (F14) 104006-01-C05 EA LID-ENTRANCE STEP COMPARTMENT, W/O CARPET 101222-01-01A EA BRACKET-CATCH, LID - BEIGE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 29 EA BRACKET-TIEDOWN, RANGE - RIGHT - JAPAN 096983-01-707 EA FILTER-GREASE, 8" X 8" - LVS CC246 081537-04-000 EA BRACKET-TIEDOWN, RANGE - LEFT - JAPAN 092696-02-701 EA LENS-LAMP, VENTLINE CC179 100258-01-700 EA HOOD-NOSE LABEL, CC428 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 30 EA WIRE SHELF, (MIDDLE) - NORCOLD 61563822 094039-01-734 EA WIRE SHELF, (TOP) W/RISER - NORCOLD 61563722 094039-01-735 EA INSIDE DRIP TRAY, (WHITE) - NORCOLD 61572830 094039-01-736 EA SWITCH-LIGHT, BLACK - NORCOLD 615810 094039-01-739 EA SHELF, (CUTOUT) - NORCOLD 61646722 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 31: Generator Group

    EA CLAMP-MUFFLER, 1.5" DIAMETER 007125-04-000 EA CLAMP-MUFFLER, 1.1" DIAMETER 007131-01-000 EA HANGER-TAILPIPE, 6 SLOTS 079654-05-000 EA PIPE-EXHAUST, ANGLED - W/FLANGE - 2" ID - ONAN# 154-2539 082272-01-000 EA MUFFLER-GENERATOR 094059-01-000 EA SPACER-GENERATOR, ONAN 105958-03-000 EA PIPE-EXHAUST, GENERATOR COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 32 EA FITTING-PAD COMPRESSOR SUCTION HARRISON - SCS 050-00133 103930-18-701 EA HOSE - #10 - SCS 085-0114 103930-18-702 EA GASKET SEAL - HARRISON - SCS 045-0143 110279-01-708 EA HOSE-REFRIGERANT BARRIER #10 SAEJ51 - SCS 051-0008 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 33 EA GASKET OR SAE 015 #10 33-781, SCS 045-0127 103930-20-708 EA CLIP F/MOTOR SHAFT, SCS 022-0001 113245-01-707 EA GASKET #8, SCS 045-0126 103930-20-705 EA DOOR-RECIRCULATING, SCS 071-0213 103930-20-709 EA SERVICE VALVE - SCS 050-159 103930-01-711 EA THERMOSTAT, SCS 033-0003 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 34 EA CONDENSER COIL - COLEMAN 1452-1301 108889-01-713 EA SUCTION LINE, (3/8" OD X .032" WALL) - COLEMAN 6792-130 108889-01-714 EA DISCHARGE LINE ASSEMBLY - COLEMAN 6792-531 102289-01-000 EA SPRING-SCREW, ROOF A/C GASKET - COLEMAN 6757-150 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 35 EA SUCTION LINE, (3/8" OD X .032" WALL - COLEMAN 6792-130 108889-01-714 EA DISCHARGE LINE ASSEMBLEY - COLEMAN 6792-531 108889-02-702 EA CAPACITOR-START, COLEMAN 1497-0891 108889-02-703 EA RELAY-START, COLEMAN 1497-4141 102289-01-000 EA SPRING-SCREW, ROOF A/C GASKET - COLEMAN 6757-150 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 36 EA EVAPORATOR COIL - COLEMAN 1452-1331 115219-01-705 EA SUCTION LINE-LOWER, COLEMAN 7335-130 115219-01-706 EA SUCTION LINE UPPER, COLEMAN 7335-131 115219-01-707 EA DISCHARGE LINE ASM, COLEMAN 7335A132 102289-01-000 EA SPRING-SCREW, ROOF A/C GASKET - COLEMAN 6757-150 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 37: Interior Finish Group

    FT MOLDING-EDGE, SHELF - 1.3" WIDE - PLASTIC - RAMBLING OAK 105004-01-02A EA MOLDING-VINYL WRAPPED, 1" X 8' - OAK 112198-01-000 FT MOLDING-WINDOW VALANCE, J-SHAPED - BRASS 104676-01-01A FT T-MOLDING, 5/16 - RIGID - GOLD 105709-01-000 FT T-MOLDING, 1", IVORY COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 38 EA BATT STRIP-DECORATVE, 8' LONG (F07) (MAIN WALL & BATH & GALLEY) 069733-80-000 EA BATT STRIP-WOODGRAIN, 8' LONG - WINNI OAK 086229-01-000 EA RETAINER-BATTEN, CEILING - .75" WIDE - 7.6' LONG 086229-04-000 EA BATTEN-CEILING, 1" WIDE - MODERN IVORY - 7.6' LONG COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 39 EA FLANGE - 1" ROD, CLOTHES - PLASTIC - OFF WHITE 023320-01-000 EA PAD-FELT, 3/8" DIAMETER - BROWN 042438-01-000 EA DOWEL-WOOD, CLOTHES ROD - 1" DIAMETER X 4' 110643-01-000 EA ANGLE-FORMED W/HOLES, 31.7 MM X 31.7 MM X 12.7 MM - STEEL - BLACK COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 40: Labels Group

    EA LABEL-WARNING, STOVE VENT - CANADIAN 040944-01-000 EA LABEL-ENTRANCE DOOR, “OPEN” KEY PART NUMBER U/M DESCRIPTION 006062-01-000 E A TAG-ELECTRIC, 110V CONNECTION 006062-03-000 E A TAG-ELECTRIC, 100V CONNECTION - JAPAN KEY PART NUMBER U/M DESCRIPTION 099509-01-000 EA LABEL-AWNING INSTALLATION COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 41 EA LABEL-FUEL CAP REMOVAL 099689-01-000 EA LABEL-WARNING, CANCER/TOXICITY 056259-01-000 EA LABEL-SAFETY CHECK LIST KEY PART NUMBER U/M DESCRIPTION 039290-01-000 EA LABEL-WARNING, EXIT 107571-01-000 EA LABEL-ESCAPE EXIT, WINDOW KEY PART NUMBER U/M DESCRIPTION 077956-01-000 EA LABEL-WARNING, SMOKE DETECTOR COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 42 U/M DESCRIPTION 079966-01-000 EA LABEL-WARNING, STOWED, MOTION KEY PART NUMBER U/M DESCRIPTION 111104-01-000 EA LABEL-HITCH, READ MANUAL KEY PART NUMBER U/M DESCRIPTION KEY PART NUMBER U/M DESCRIPTION 091224-02-000 EA LABEL-TRAILER LIGHTING 077510-01-000 EA LABEL-GENERATOR PREP COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 43 EA LABEL-FUEL, UNLEADED 006040-02-000 EA TAG-GAS REFUEL WARNING, CANADIAN 068383-01-000 EA LABEL-DIESEL FUEL 054531-01-000 EA LABEL-LP GAS ONLY 006040-01-000 EA TAG-GAS REFUELING WARNING 023769-01-000 EA LABEL-WARNING, LPG - CANADIAN 006040-02-000 EA TAG-GAS REFUEL WARNING, CANADIAN COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 44 EA COMPARTMENT-LP REGULATOR 010323-01-000 EA ADAPTER-BRASS, 3/8" F X 1/2" MPT - US & JAPAN 010329-01-000 EA ADAPTER-BRASS, 1/2" F X 1/2" MPT - US 065318-02-000 EA ELBOW - 90 DEGREE, 3/8" MPT TO 3/8" FPT COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 45 000G67-10-12P EA SCREW, 10-12 X 3/4" PPH - DARK BROWN 000G67-10-10D EA SCREW, 10-12 X 5/8 PPH - BLACK - TYPE A 000G67-10-10B EA SCREW, 10-12 X 5/8 PPH - ZINC - TYPE A COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 46: Sealants & Fasteners Group

    EA SEALANT-URETHANE, BLACK - 1/10 - ESSEX 552.2 072889-09-000 EA SEALANT-URETHANE, TUBE - BLACK - MANUS 75AM 102352-01-000 EA SEALER-PUMPABLE, BLACK - COLORIMETRIC MS101 106206-01-000 EA SEALER-PUMPABLE - MANUS 30ABLACK 108716-01-000 EA SILICONE-TUBE, OFF WHITE - SELF LEVELING - CSL 510 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 47: Water & Sewage Group

    EA TANK-INNER, G6A-4E & 6E - FRONT MOUNT - ATWOOD# 91641 052009-06-000 EA DOOR-WATER HEATER, BRIGHT WHITE - ATWOOD 051391-01-717 EA GRILLE ONLY - ATWOOD 92640 116424-01-000 EA PROTECTOR-WATER HEATER LATCH - ATWOOD 92611 Brown (a) Brown (b) Red (a) Red (b) COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 48 Red (b) 052959-02-000 EA CONNECTOR, 1/2" F X 1/2" MPT - PLASTIC - GRAY FROM: 00-00-00 THRU: 11-06-94 101814-01-000 EA COUPLING-FEMALE, 1/2" X 1/2" FPT W/COMP. SLEEVE - GRAY 110438-01-000 EA VALVE-CHECK, BRASS - G784 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 49 EA SHOWER HEAD-W/60" HOSE - US 103092-02-000 EA SHOWER HEAD-W/60" HOSE - CANADIAN 103092-01-700 EA BRACKET ONLY-CLEAR, F/SHOWER HEAD - 2328028 108356-02-01A EA COVER-SWITCH W/DIMPLES, CARLING VVAZC00 BLA 108357-08-000 EA SWITCH-ROCKER, DPDT ON/NONE/ON - CARLING VDD1S00C-0 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 50: Drainage System

    EA SENDING UNIT-W/SCREW, WASHER, WELL NUT & TERMINAL RING 024676-01-000 EA FLANGE-CLOSET, TOILET - 4" X 3" - RED - US FROM: 00-00-00 THRU: 08-07-94 116644-01-000 EA FLANGE-CLOSET, TOILET - 4" X 3" - SEALAND 345892 - US FROM: 08-08-94 THRU: 99-99-99 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 51 113500-01-01A EA WINDOW-TIPOUT, DOUBLE - W/INSIDE FRAME - EXCEL CH04-G2W59 112795-21-01A EA WINDOW-HORIZONTAL SLIDER, W/INSIDE FRAME - EXCEL DC04-G2W66R THERMOPANE WINDOW OPTION 112795-44-01A EA WINDOW-HORIZONTAL SLIDER, W/INSIDE FRAME - EXCEL DC04-EG2W66R EUROPEAN WINDOW OPTION COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 52: Exterior Doors

    EA LOCK-MALE, FASTENER - REFRIGERATOR DOOR 084104-01-701 EA LOCK-FEMALE, FASTENER - REFRIGERATOR DOOR 111013-07-F24 EA DOOR-STORAGE, BRIGHT WHITE 111017-02-F24 EA DOOR-ACCESS, BRIGHT WHITE 081240-16-000 EA DOOR-WATER FILL, LOCKABLE W/O LOCK, 4" X 4 5/8" - BRIGHT WHITE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 53 EA CATCH-DOOR HOLDER, STRIKE - OFF WHITE 115108-05-F26 EA DOOR-ENTRY W/SCREEN DOOR & JAMB - W/O WINDOW - BRIGHT WHITE (F26) 104099-01-04A EA CATCH-DOOR HOLDER, STRIKE - BRIGHT WHITE FROM: 10-24-94 THRU: 99-99-99 009126-02-000 EA HANDLE-ASSIST, ENTRY DOOR - BLACK COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 54 EA GARNISH - DOOR - DRIVERS - U-CHANNEL - BLACK 109378-01-000 EA STRAP - CHECK - DRIVERS DOOR - BLACK 109235-01-01A FT COVER - SCREW - MAT BLACK 109235-01-03A FT COVER - SCREW - OFF WHITE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 55 FT WEATHERSTRIP-FUZZY, EXCEL 171-040630 106469-01-706 EA FASTENER-ROD END, EXCEL 130-040593 106469-02-700 EA JAMB-DRIVER DOOR, EXCEL V108-30L 106469-02-703 EA BELT-WEATHERSTRIP, EXTERIOR WINDOW - EXCELV047-57 106469-01-704 EA ROLL-UP GLASS ASM W/BRACKET, EXCEL V103-65L 106469-02-702 EA GLASS-STATIONARY, EXCEL 106-041104 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 56 CASE-LOCK, A=17MM 702379 (KEY CODE #9) 110506-53-009 CASE-LOCK, A=25MM 702389 (KEY CODE #9) 110506-40-700 HARDWARE KIT-LOCK, W/GASKET, NUT, CLIP & WASHERS 110506-59-701 KEY BLANK 110506-50-000 CASE-TWIST LOCK, A=17MM 596932 110506-51-000 CASE-TWIST LOCK, A=25MM 596669 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 57 EA GARNISH - INTERIOR - 1 7/8" - OFF WHITE - FANTASTIC 1040-80 048649-01-000 EA FAN-ROOF VENT, 6 BLADES - 6" 110051-01-700 EA GARNISH W/SCREEN & FRAME-2", JENSEN 29-800-02 110051-01-703 EA CRANK HANDLE-ROOF VENT, JENSEN RP-1031-B COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 58 113733-01-01A EA WINDOW ASM-PICTURE, W/INSIDE FRAME - EXCEL DH416-G2W66 113733-01-700 EA WINDOW-PICTURE, W/O INSIDE FRAME - EXCEL DH416-G2 113733-01-701 EA FRAME-WINDOW, INSIDE - ENTRY DOOR - EXCEL W41666 113733-01-702 EA GLASS-STATIONARY - EXCEL 390-019187 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 59 098644-01-705 GLAZING STRIP, EXCEL 132-010723 098644-01-716 PLUG-FILLER, EXCEL 132-014470 098644-01-717 SPLINE-SCREEN, EXCEL 132-004716 098647-33-702 GLASS-STATIONARY - EXCEL 106-019297 098647-33-703 GLASS-SLIDING, W/SASH & LATCH - EXCEL H425-G9 098647-33-704 SCREEN W/SPRING & WEATHERSTRIP - EXCEL 410-019134 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 60 112795-19-01A WINDOW-SLIDING, W/INSIDE FRAME - EXCEL DC29-G2W66R 098647-31-701 FRAME-INSIDE, OFF WHITE - EXCEL CW2966 112795-19-700 WINDOW-HORIZONTAL SLIDER, W/O INSIDE FRAME - EXCEL DC29-G2R 112795-01-700 LATCH ASM-BLACK - EXCEL DH287-CK 112795-01-701 SLIDE-STOP - EXCEL 132-019092 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 61: Windshield & Wiper Group

    EA ARM-DRIVE, WIPER MOTOR - 1.54" 117008-02-000 EA LINK ASM - CONNECTING - PASSENGERS SIDE 061603-01-000 EA GROMMET-SNAP, 3/16 ID - 3/8 HOLE - PLASTIC - BLACK FROM: 12-05-94 THRU: 99-99-99 067188-01-000 EA STUD-CRANK, WIPER 110742-01-000 EA GASKET-WIPER COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 62 EA HEADER WINDSHIELD - CENTER 104449-01-000 EA BRACKET - WINDSHIELD SUPPORT 077922-04-000 EA HEADER WINDSHIELD END - DRIVER SIDE 077847-02-000 EA SUPPORT - WINDSHIELD - LOWER - W/O BRACKETS 002328-02-000 EA BLOCK-WINDSHIELD, .062" X .5" X .98" COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
