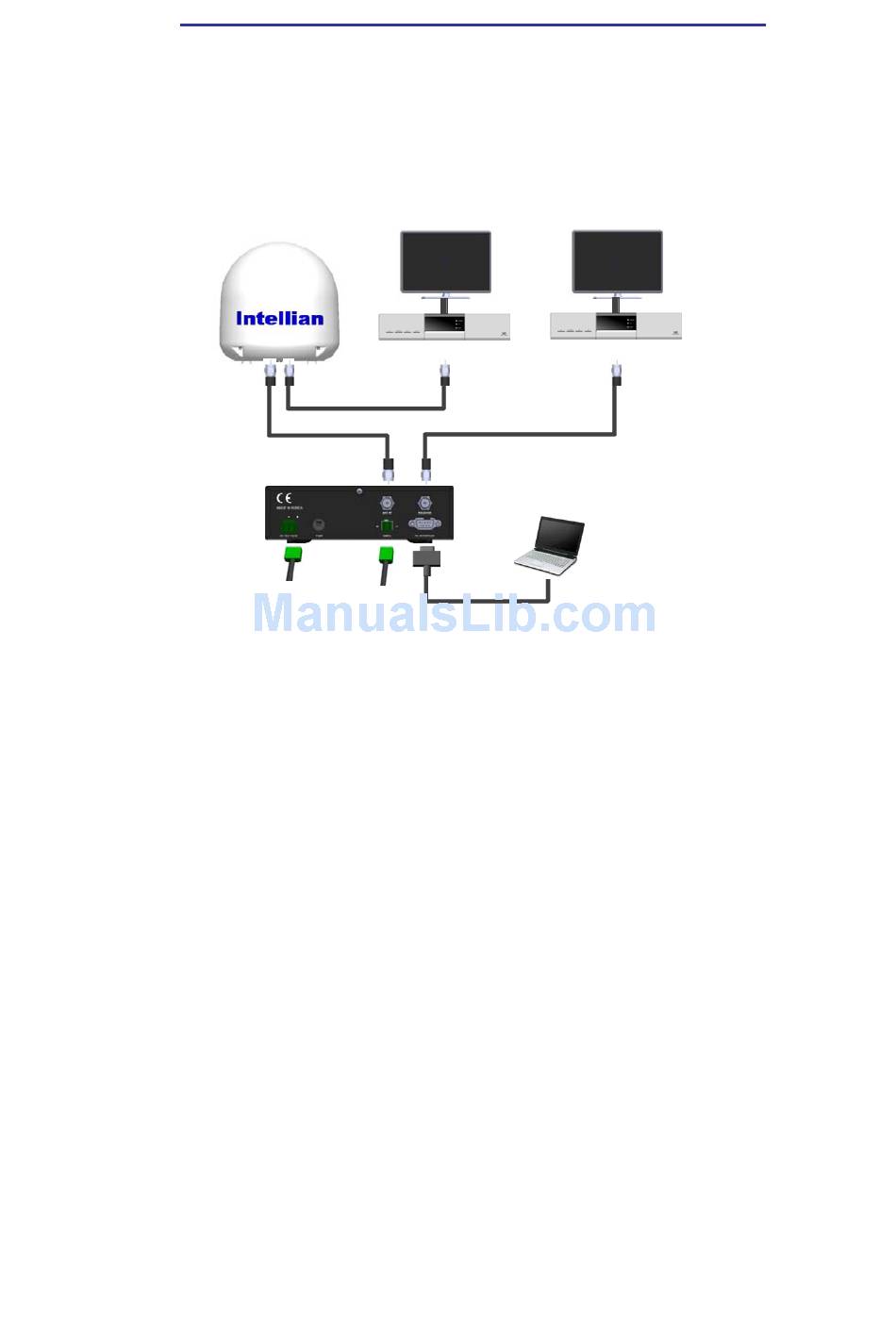

Basic System Configuration of Intellian i3/i4

In order to work your satellite TV system properly, the system will have to
connect with all of the provided components properly as shown in the figure
below (Refer to next chapter 'Installation' of this manual for the more detail
connection method). Separate purchase of a satellite receiver and a TV is
required.
TV (Not Supplied) TV (Not Supplied)
Satellite Receiver (Not Supplied) Satellite Receiver (Not Supplied)
Antenna Control Unit
PC( Not Supplied)
DC Power on Vessel
NMEA GPS
(DC-10.8-15.6V)
