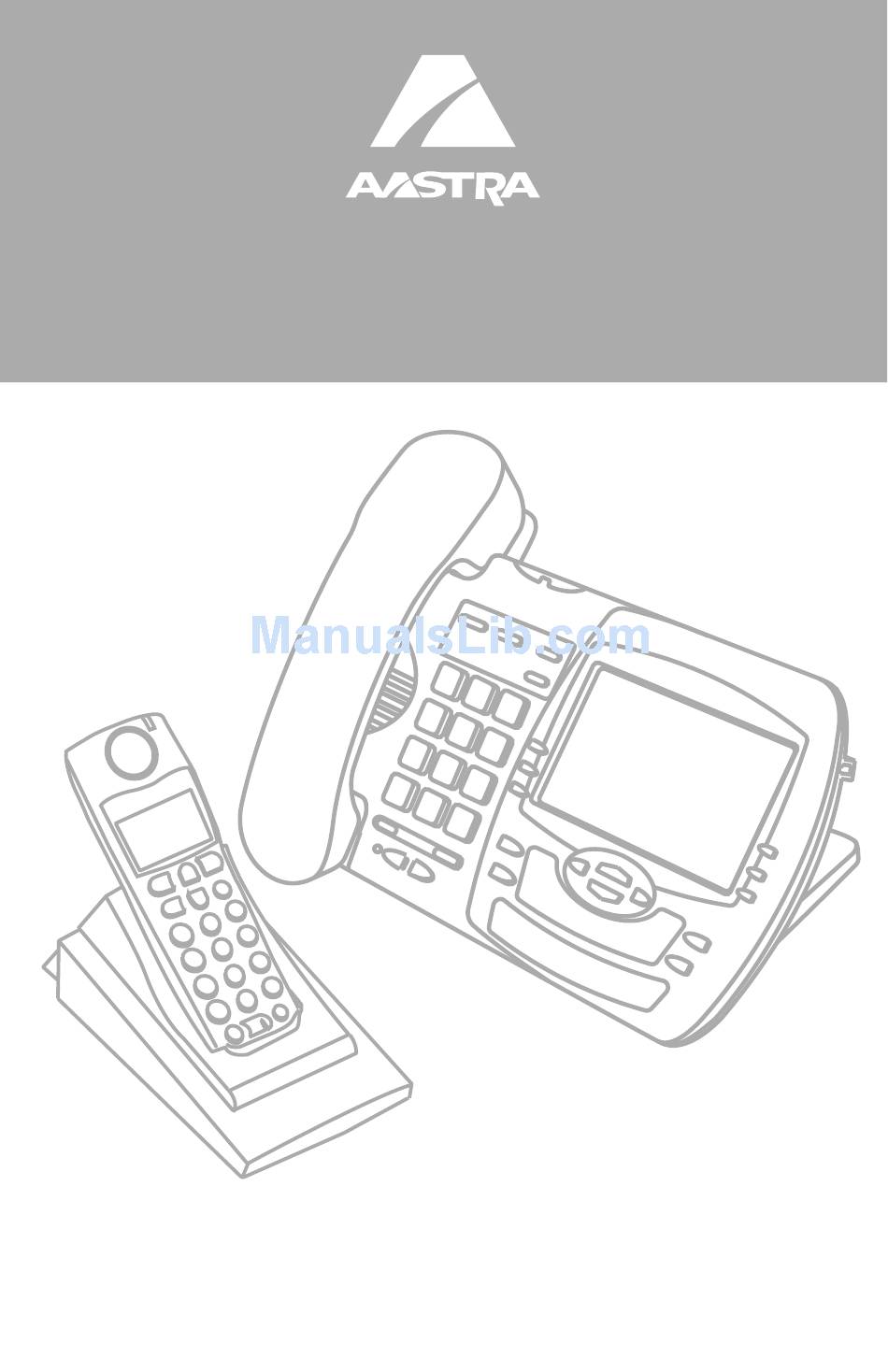

MODEL 480i CT
ADMINISTRATION GUIDE
Release # 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 480i CT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aastra 480i CT

Summary of Contents for Aastra 480i CT

  • Page 1 MODEL 480i CT ADMINISTRATION GUIDE Release # 1.0...

  • Page 2: Software License Agreement

    Software in object form solely with the Equipment for which the Software was intended. This Product may integrate programs, licensed to Aastra by third party Suppliers, for distribution under the terms of this agree- ment. These programs are confidential and proprietary, and are protected as such by copyright law as unpublished works and by international treaties to the fullest extent under the applicable law of the jurisdiction of the Customer.

  • Page 3: Table Of Contents

    How to set the 480i CT phone to factory default? ........19 How to reset a user’s password? .............. 19 Appendix A: Configuring the 480i CT at the Asterisk IP PBX ....20 Appendix B: Sample Configuration Files ..........22 Appendix C: TFTP Server Set-up .............

  • Page 4: Overview

    SIP 480i partners who need to understand how CT IP phone. It also includes details to install the 480i CT on a SIP network. on the functioning and configuration This guide contains information that is of the 480i CT phone.

  • Page 5: Methods Of Installation

    “aastra.cfg” and “<mac>.cfg”. The The DHCP server passes information settings of the 480i CT phone, as well to the 480i CT so that it can configure as the softkeys and the line keys, itself for subsequent IP PBX addresses can be configured through the and normal runtime operations.

  • Page 6: The 480I's Options List

    “22222”. For To assign your own DNS addresses, all other phone options, please refer disable DHCP. to the Aastra 480i CT Installation Guide. 6. TFTP Server The administrator level options in the This is the TFTP server’s IP address.
  • Page 7 Some IP PBX systems use this as the figuration files to the phone, OR caller’s ID and some may overwrite • If the settings for the 480i CT on this with the string that is set at the the IP PBX system had been modi- PBX system.
  • Page 8 “http://”. is left blank. The user level password can be changed using the web client. In the side menu of the Aastra 480i CT Web Client, there are three main categories: Status, User and Admin. • The STATUS category contains...

  • Page 9: 480I Ct Ip Phone Configuration

    Configuration 4. Click on the Set Values button to The Network and SIP options within save the changes that you just the 480i CT phone can be configured made. from the phone or from the Aastra Manually Configure 480i CT Web Client web interface.

  • Page 10: Tftp Server Settings

    The 480i CT uses the information in Authentication name and Password the SIP settings to register at the IP affect line 1 of the 480i CT only. Modi- PBX. To configure the SIP settings: fications to the other lines should be done through the <mac>.cfg file.

  • Page 11: Setting Parameters - Network Settings

    1 Parameter – ip Configurable through the 480i's Options List, the Aastra 480i CT web client or through the configuration files Description This parameter assigns a static IP address to the 480i CT device. Format IP address Default Value 0.0.0.0...
  • Page 12 Description Primary domain name servers’ IP address. For any of the IP address settings on the 480i CT a domain name value can be entered instead of an IP address. With the help of the domain name servers the domain names for such parameters can then be resolved to their corre- sponding IP addresses.

  • Page 13: Setting Parameters - Time Server Settings

    Range Not Applicable Example sip rtp port: 5130 Setting Parameters – Time Server Settings The following section contains the parameters to configure settings specific to the timeserver. Parameter – Configurable through the 480i's Options List or the time server disabled configuration files Description This parameter enables or disables the time server.
  • Page 14 Parameter – Configurable through the configuration files only time server3 Description The tertiary time server's IP address. If the time server is enabled, and the primary and secondary time servers are not configured or cannot be accessed the value for time server3 will be used to request the time from.

  • Page 15: Setting Parameters - Sip Authentication

    480i CT to the targeted user. This parameter’s IP address will be the address of the proxy server that the 480i CT will use to send all SIP requests to IP address or fully qualified host name...
  • Page 16 Description The time in seconds that the 480i CT should use to send re-registration requests to the registrant. The value of this parameter will be used in the expires header field value in the SIP REGISTER request.
  • Page 17 Configurable through the configuration files. sip lineN password Configurations done through the 480i's Options List or the Aastra 480i CT web client affect the first line only. The password that will be used to register at the registrar. Description Text...
  • Page 18 Default Value Not Applicable Range N in the sip lineN screen name ranges from 1 to 9 Example sip line1 screen name: Joe Smith 15 Model / Administration Guide...

  • Page 19: Setting Parameters - Softkey Settings

    Setting Parameters – Softkey Settings This section contains the softkey parameters that can be configured on the 480i CT phone. There are eighteen softkeys that can be configured. These parameters can be configured either from the Aastra.cfg or the <mac>.cfg file. Softkeys can be configured as either speed dials or as additional call/line appearances.

  • Page 20: Firmware Upgrade

    Firmware Upgrade server. The 480i CT phone uses a TFTP server 4. In the TFTP server IP field enter the to download configuration files and IP address of the computer where firmware. The TFTP server should be the TFTP server is located.

  • Page 21: Troubleshooting

    3. Enter the name of the firmware file that is on the TFTP server and ready How to set the 480i CT phone to for download. E.g. “firmware.st”. factory default? 4. Enter the IP of the TFTP server.

  • Page 22: How To Set The 480I Ct Phone To Factory Default

    6. Press the Cancel softkey to cancel the operation. How to reset a user’s password? If a 480i CT user has forgotten the password the following steps can be performed to reset the password. From the web client: 1. Click on the Password sub-category under the USER main category.

  • Page 23: Appendix A: Configuring The 480I Ct At The Asterisk Ip Pbx

    Appendix A: Configuring the 480i CT at the Asterisk IP PBX The following configuration illustrates how to create a user with an extension to make and receive calls using the Asterisk as the PBX. This configuration is defined in the “sip.conf” file present along with the other configuration files that are created when Asterisk is installed.
  • Page 24 5060 Unmonitored This completes the basic set-up for the 480i CT phone with 1234 extension at the Asterisk IP PBX system. Refer to Asterisk documentation for set-up on extended or advanced features such as voice mail and call forwarding, etc.

  • Page 25: Appendix B: Sample Configuration Files

    # from the TFTP server while restarting, the “aastra.cfg” file and # the “[mac].cfg” file. These two configuration files can be used to # configure all of the settings of the Aastra 480i CT phone with the # exception of assigning a static IP address to a phone and line # settings, which can only be set in the “<mac>.cfg”...
  • Page 26 DHCP Setting ============ dhcp: 1 # DHCP enabled. # DHCP: 0 = false, means DHCP is disabled. 1 = true, means DHCP is enabled. # Notes: If DHCP is disabled, the following network settings will # have to be configured manually either through the configuration # files, the Options List in the phone, or the Web Client: IP # Address (of the phone), Subnet Mask, Gateway, DNS, and TFTP # Server.
  • Page 27 SIP registrar and Proxy Server Settings ======================================= #sip proxy ip: # IP of proxy server. #sip proxy port: 5060 # 5060 is set by default. #sip registrar ip: # IP of registrar. #sip registrar port: 5060 # 5060 is set by default. sip digit time out: 4 # dialing behaviour #----------------------------------------------------------------------...
  • Page 28 # Notes: There are a maximum of 18 softkeys that can be configured # on the 480i CT phone. These can be set up through either of the 2 # configuration files, depending on whether this is to be server # wide (“aastra.cfg”) or phone specific (“[mac].cfg”).
  • Page 29 “<mac>.cfg” file. #---------------------------------------------------------------------- # For more information on parameters that can be set in the # configuration files, please refer to your administration guide # for the 480i CT IP phone. #---------------------------------------------------------------------- Model / Administration Guide 26...
  • Page 30 # Comments: # This file contains sample configurations for the “<mac>.cfg” file. Please rename # this file with the MAC address (with the dashes removed) of the specific 480i CT # device that you want to configure, for example "00085d03059f.cfg”.
  • Page 31 The maximum number of line/call appearances that can be configured on the 480i CT is 8 or 9, depending on how the lines have been configured. If all line/call appearances have been set up for the same number, a total of 9 lines can be configured.
  • Page 32 #sip line1 password: # SIP Registrar request passcode. #sip line1 user name: # This parameter value is used by the 480i CT # in the From header field of the outgoing # SIP packet. It may be replaced by your # registrar.
  • Page 33 # Notes: There are a maximum of 18 softkeys that can be configured # on the 480i CT phone. These can be set up through either of the 2 # configuration files, depending on whether this is to be server # wide (“aastra.cfg”) or phone specific (“[mac].cfg”).
  • Page 34 #softkey5 label: “Line 9” #softkey5 value: 9 #---------------------------------------------------------------------- # For more information on parameters that can be set in the # configuration files, please refer to your administration guide # for the 480i CT IP phone. #---------------------------------------------------------------------- 31 Model / Administration Guide...

  • Page 35: Appendix C: Tftp Server Set-Up

    Appendix C: TFTP Server Set-up There are a number of TFTP servers available. PumpKIN is one of such TFTP servers. Use the keywords “pumpkin TFTP server” on Google and you should get the web site where you can download the software from. Installing PumpKIN is straightforward.

  • Page 36: Limited Warranty

    Repairs to this product may be made only by the manufacturer and its authorized your possession. agents, or by others who are legally Aastra Telecom shall not be liable for authorized. This restriction applies during any incidental or consequential and after the warranty period. Unautho- rized repair will void the warranty.
