Operation
Read the following section carefully before building
a fire in your fireplace insert..
Fuel
This stove is designed to burn natural wood ONLY.
Wood that has been air-dried for a period of 6 to 14
months will provide the cleanest, most efficient heat.
Frequent use of green or inadequately seasoned
wood is conducive to creosote accumulation and
generally poor performance.
DO NOT BURN...
•Coal
•Treated or painted wood
•Garbage
•Chemical Chimney cleaners
•Cardboard
•Colored paper
•Solvents
•Any synthetic fuel or logs
The burning of any of these materials can result in
the release of toxic fumes. NEVER USE GASOLINE,
GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHAR-
COAL LIGHTER FLUID, OR SIMILAR LIQUIDS TO START
OR "FRESHEN-UP" THE FIRE. Always keep such liq-
uids away from the heater at all times.
WARNING
NEVER ALLOW THE FIRE TO REST
DIRECTLY ON THE GLASS. THE
LOGS SHOULD ALWAYS BE SPACED
AT LEAST ONE INCH FROM THE
GLASS TO ALLOW FOR PROPER AIR
FLOW WITHIN THE STOVE.
OPERATE THIS FIREPLACE INSERT
ONLY WITH THE FRONT DOOR FULLY
CLOSED. OPERATION WITH A PAR-
TIALLY OPENED DOOR MAY RESULT
IN OVER-FIRING. ALSO, IF THE
DOOR IS LEFT PARTLY OPEN, GAS
AND FLAME MAY BE DRAWN OUT
OF THE STOVE OPENING, CREAT-
ING RISKS FROM BOTH FIRE AND
SMOKE.
Jøtul C 550 CB Rockland 139656_02
Air Control Settings
A single lever regulates the Primary Air flow that
controls the intensity of the fire and consequent heat
output and burn time. This lever is located within the
slot on the upper right front of the fireplace insert.
When first starting or reviving the fire, the
control lever should be set at the far right position
to allow the maximum amount of air into the stove.
See fig.15. After the fire is well-established, the lever
should be set at position to moderate incoming air to
maintain the desired long term heat output and/or
burn time.
In general, the more air made available to the
fuel will result in the hottest fire intensity and the
fastest fuel consumption. Alternatively, the less air
made available to the firebox will result in low heat
output and slow fuel consumption.
Blower Settings / Air Control
Use the following guide for best performance.
Burn Rate
Air Control Setting
Low
5/32" Open
Med. Low
3/16"-5/16"Open Low / On at 30 min.
Med. High
5/16"-1/2"Open
High
Max. Open
Control Lever
FULLY
CLOSED
5/32”

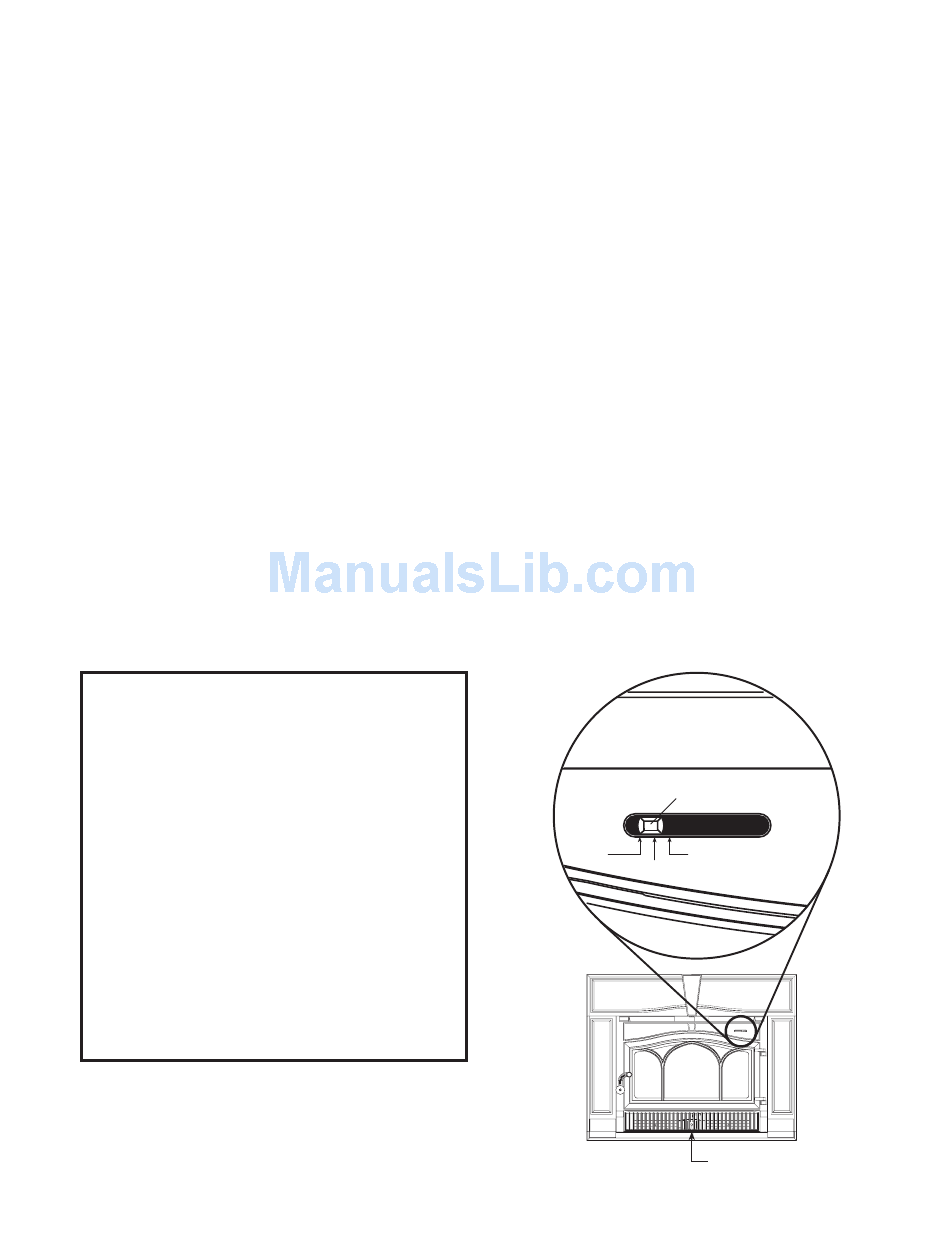

Figure 15. Air Control Setting
10/2/14
Blower Speed
Low / On at 30 min.
Low / On at 30 min.
High / On
FULLY
OPEN
5/16”
Blower Speed Control
15
