Jøtul C 550 CB Rockland 139656_02

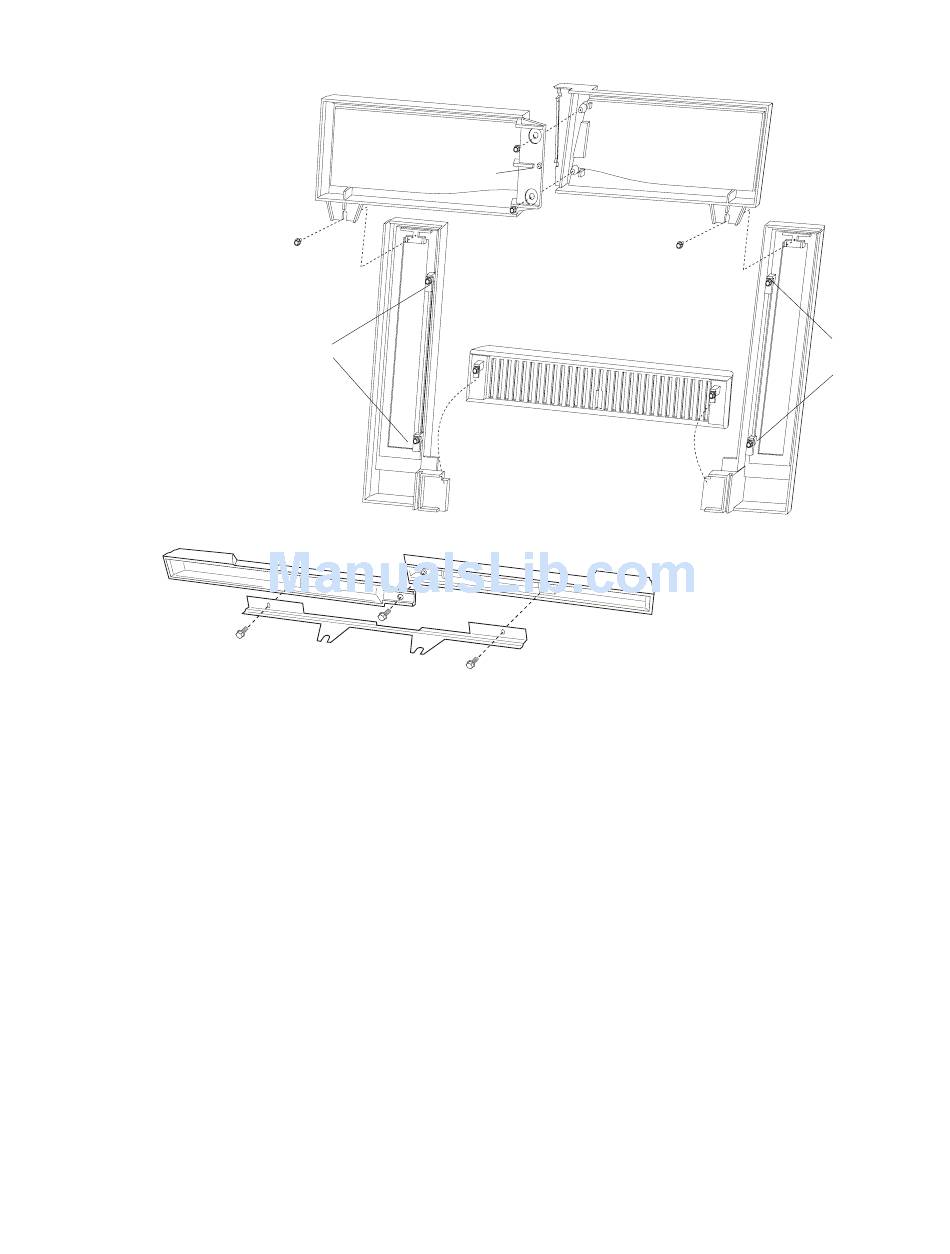

Figure 13.
Surround Panel assembly
viewed from backside.
Tools Required:
• 10 mm socket or wrench
Trim Mounting
Bracket
Figure 14. Bottom Surround Trim assembly.
Surround Assembly
All fasteners have already been installed in the ap-
propriate locations at the factory. You will need to
remove them, attach the parts together as described
below and reinstall the fasteners at those locations.
1. Layout the parts. Place the castings face down on
a protective surface such as carpeting, blankets or
a sheet of cardboard. See fig. 13.
2. Attach the Breastplates to each other.
Use a 10 mm socket or wrench with two M6 x 10
hex head flange bolts. Adjust the set screw to
obtain parallel alignment of the two plates.
3. Attach the Leg plates. The Legs must be oriented
with the Hang Tabs on the inside edges as shown
in fig. 12. Use the two remaining M6 x 12 hex head
flange bolts to attach the Legs to the Breastplate
assembly.
4. Attach the two Bottom Surround Trim panels to-
gether with the single M6 x 10 hex bolt. Attach the
Trim Mounting Bracket to the back of the Bottom
Trim assembly using the other two M6 x 10 bolts
and washers. Orient the bracket as shown in fig. 14.
14
10/2/14
Alignment Set Screw
Right Leg
Hang Tabs
Right Bottom Trim
Right Breastplate
All fasteners are M6 x 10 mm hex
head bolts, pre-installed.
Front Grille
5. If appropriate, attach the Extended Surround Pan-
el to the firebox. See illustration on page 6. With
the painted side facing out, engage the hooked
tabs on panel with the slots in the backside of
the Surround Brackets on the firebox. Extend the
blower power cord out beyond the front of sur-
round panel.
6. Attach the Bottom Trim assembly to the two studs
located in the firebox floor between the blowers
using the M6 nuts already in place.
7. Attach the Surround assembly to the Firebox.
Lift the entire assembly upright and position it in
front of the insert firebox. The four Hang Tabs on
the surround legs must engage with the adjacent
cutouts in the two brackets on the sides of the
firebox opening. The surround will easily engage
with these brackets if the firebox is slightly proud
of the fireplace opening.
8. Check the alignment of the breastplates for "bow-
ing" and adjust the set screw as necessary.
9. Push the entire unit into position so that the
surround is flush against the fireplace face. The
insulation should not be visible when the unit is
fully installed.
Left Breastplate
Left Leg
Hang
Tabs
Left Bottom Trim
