Installing the Fireplace Insert
Power Cord Orientation
1. Determine to which side the blower power cord
will be routed. DO NOT ROUTE THE POWER CORD
ACROSS THE FRONT OF THE FIREPLACE.
2. Insert the AC power receptacle lead through the ap-
propriate inlet in the side of the firebox. See fig. 10.
Remove the #8 x 5/8" phillips screw already in place
and engage the receptacle bracket with the tab in
the inlet opening. Reinstall the screw.
3. Route the AC power wire harness through the hole
in the Inner Shroud and around the front of the
blower. Plug the male quick-connector into the cor-
responding female connector on the blower wire
harness, located between the two blowers. Loosen
the Control Switchplate wingnut to swing the
switch assembly out for better access to the female
connector.
After connection, relocate the whole wire harness
behind the blower and resecure the switchplate.
4. Plug the power cord into the receptacle, but do not
plug it into the wall outlet until the installation is
complete.
Install the Draw-Down Adaptor
1. Insert the end of the chimney flue flex pipe as far as
it will go into the non-crimped end of the adaptor or,
if appropriate, the adaptor that may be supplied by
the flex liner manufacturer.
Orient the draw-down adaptor so that the retainer
pin will be parallel with the front of the fireplace.
This will ease locating the cotter pin hole. Fig. 11.
2. Drill holes through the flex pipe at the three pilot
hole locations in the adaptor and secure with sheet
metal screws.
Install the Firebox
The cast iron baffles must be removed to secure the
draw-down adaptor to the firebox. The Left Baffle has
three bosses cast into the underside that engage with
corresponding locator holes in the air tubes to lock each
tube in correct position. Use a flashlight to locate the
bosses by lifting up on the Left Baffle. See fig. 12.
1. Lift up the Left Cast Iron Baffle to disengage it from
the air tubes, and remove each air tube.
2. Push up on the Right Baffle and remove the Left
Baffle, dropping it down and out.
3. Lift and remove the Right Baffle.
4. Locate the fireplace insert in its final position. From
within the firebox, reach up and pull the Draw-down
Adaptor into the insert flue collar.
Jøtul C 550 CB Rockland 139656_02
Inner Shroud
Phillips
screw
Receptacle
Wire Harness Lead
Bracket

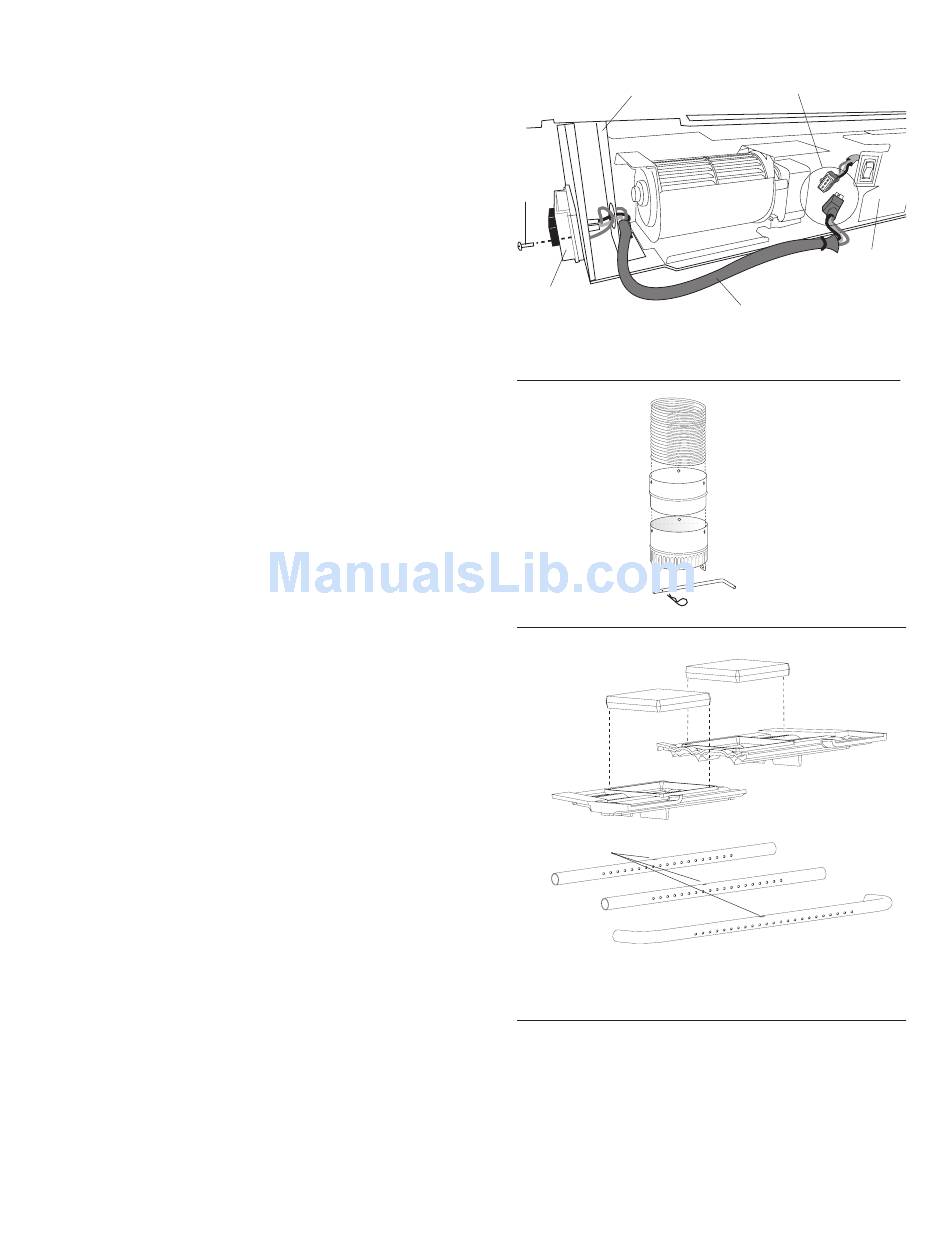

Figure 10.
Routing the AC wire harness leads.
Figure 11.
Install
Draw-Down
Adaptor
Skamol Panels
Left Baffle
Locator Holes
Middle
Secondary Air Tube
Figure 12.
Remove Baffles and Front Secondary Air Tube.
5. Insert the retainer pin through the appropriate holes
in the adaptor ears, and lock the retainer pin in place
using the cotter pin.
6. Replace first the right baffle, then the left baffle,
followed by the air tubes. ADJUST THE AIR TUBES AS
NECESSARY TO BE SURE EACH IS PROPERLY ENGAGED
WITH THE ADJACENT LOCATOR BOSSES ON THE LEFT
BAFFLE.
10/2/14
Quik-connectors
Control
Switchplate
Flexible Flue
Liner
Flex Liner
Adaptor
(if appropriate)
Draw-down
Adaptor
Retainer Pin
Cotter Pin
Right Baffle
Rear Secondary
Air Tube
Front Secondary Air Tube
