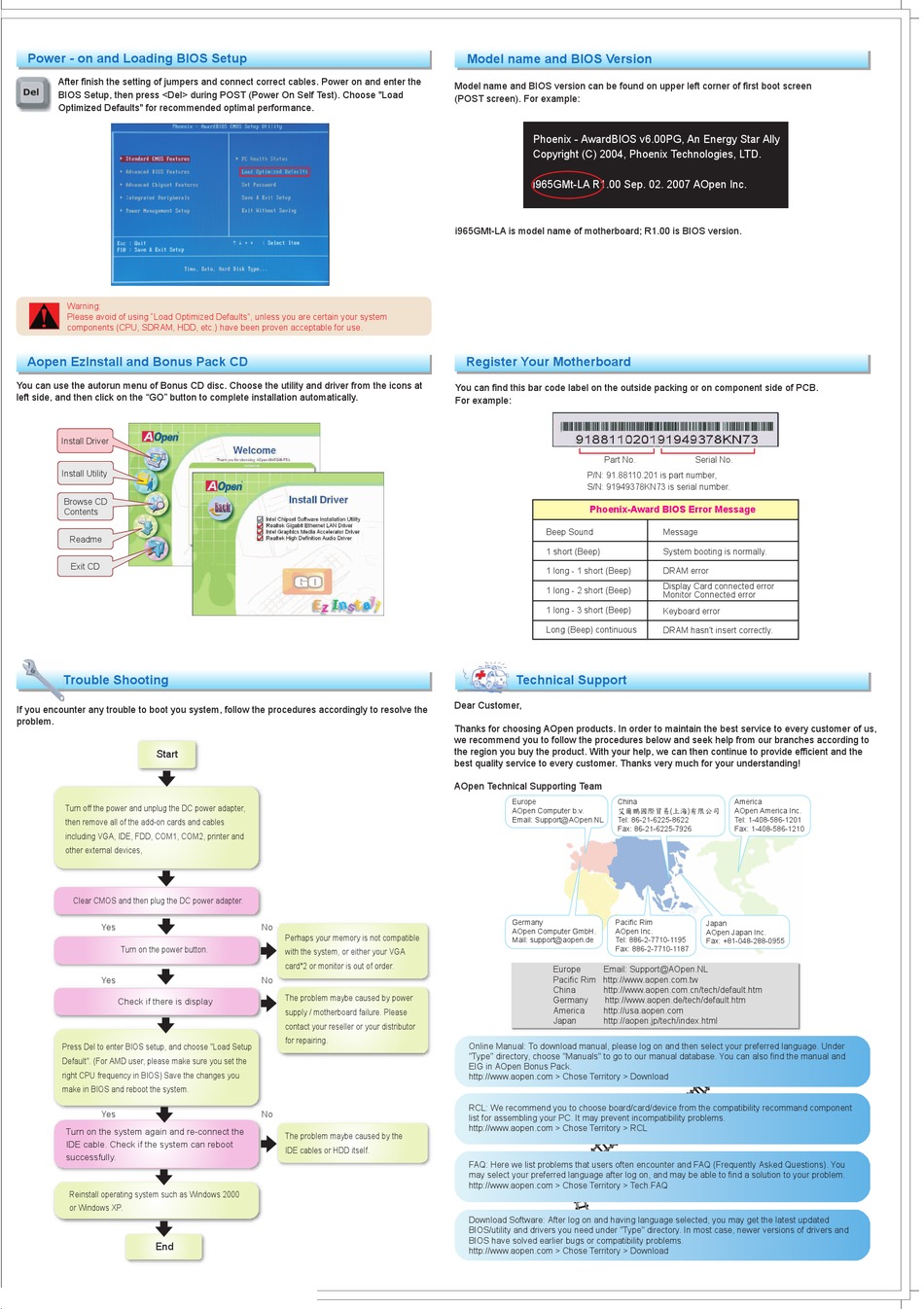

Power - on and Loading BIOS Setup
After finish the setting of jumpers and connect correct cables. Power on and enter the
BIOS Setup, then press <Del> during POST (Power On Self Test). Choose "Load
Optimized Defaults" for recommended optimal performance.
Warning:
Please avoid of using "Load Optimized Defaults", unless you are certain your system
components (CPU, SDRAM, HDD, etc.) have been proven acceptable for use.
Aopen EzInstall and Bonus Pack CD
You can use the autorun menu of Bonus CD disc. Choose the utility and driver from the icons at
left side, and then click on the "GO" button to complete installation automatically.
Install Driver
Install Utility
Browse CD
Contents
Readme
Exit CD
Trouble Shooting Trouble Shooting
If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the
problem.
Start
Turn off the power and unplug the DC power adapter,
then remove all of the add-on cards and cables
including VGA, IDE, FDD, COM1, COM2, printer and
other external devices,
Clear CMOS and then plug the DC power adapter.
Yes
Turn on the power button.
Yes
Check if there is display
Press Del to enter BIOS setup, and choose "Load Setup
Default". (For AMD user, please make sure you set the
right CPU frequency in BIOS) Save the changes you
make in BIOS and reboot the system.
Yes
Turn on the system again and re-connect the
IDE cable. Check if the system can reboot
successfully.
Reinstall operating system such as Windows 2000
or Windows XP.
End
No
Perhaps your memory is not compatible
with the system, or either your VGA
card*2 or monitor is out of order.
No
The problem maybe caused by power
supply / motherboard failure. Please
contact your reseller or your distributor
for repairing.
No
The problem maybe caused by the
IDE cables or HDD itself.

Model name and BIOS Version

Model name and BIOS version can be found on upper left corner of first boot screen
(POST screen). For example:
Phoenix - AwardBIOS v6.00PG, An Energy Star Ally
Copyright (C) 2004, Phoenix Technologies, LTD.
i965GMt-LA R1.00 Sep. 02. 2007 AOpen Inc.
i965GMt-LA is model name of motherboard; R1.00 is BIOS version.

Register Your Motherboard

You can find this bar code label on the outside packing or on component side of PCB.
For example:
Part No.
P/N: 91.88110.201 is part number,
S/N: 91949378KN73 is serial number.
Phoenix-Award BIOS Error Message
Beep Sound
1 short (Beep)
1 long - 1 short (Beep)
1 long - 2 short (Beep)
1 long - 3 short (Beep)
Long (Beep) continuous

Technical Support

Dear Customer,
Thanks for choosing AOpen products. In order to maintain the best service to every customer of us,
we recommend you to follow the procedures below and seek help from our branches according to
the region you buy the product. With your help, we can then continue to provide efficient and the
best quality service to every customer. Thanks very much for your understanding!
AOpen Technical Supporting Team
Europe China
AOpen Computer b.v.
艾爾鵬國際貿易(上海)有限公司
Email: Support@AOpen.NL Tel: 86-21-6225-8622
Fax: 86-21-6225-7926
Germany Pacific Rim
AOpen Computer GmbH. AOpen Inc.
Mail: support@aopen.de Tel: 886-2-7710-1195
Fax: 886-2-7710-1187
Europe Email: Support@AOpen.NL
Pacific Rim http://www.aopen.com.tw
China http://www.aopen.com.cn/tech/default.htm
Germany http://www.aopen.de/tech/default.htm
America http://usa.aopen.com
Japan http://aopen.jp/tech/index.html
Online Manual: To download manual, please log on and then select your preferred language. Under
"Type" directory, choose "Manuals" to go to our manual database. You can also find the manual and
EIG in AOpen Bonus Pack.
http://www.aopen.com > Chose Territory > Download
RCL: We recommend you to choose board/card/device from the compatibility recommand component
list for assembling your PC. It may prevent incompatibility problems.
http://www.aopen.com > Chose Territory > RCL
FAQ: Here we list problems that users often encounter and FAQ (Frequently Asked Questions). You
may select your preferred language after log on, and may be able to find a solution to your problem.
http://www.aopen.com > Chose Territory > Tech.FAQ
Download Software: After log on and having language selected, you may get the latest updated
BIOS/utility and drivers you need under "Type" directory. In most case, newer versions of drivers and
BIOS have solved earlier bugs or compatibility problems.
http://www.aopen.com > Chose Territory > Download
Serial No.
Message
System booting is normally.
DRAM error
Display Card connected error
Monitor Connected error
Keyboard error
DRAM hasn't insert correctly.
America
AOpen America Inc.
Tel: 1-408-586-1201
Fax: 1-408-586-1210
Japan
AOpen Japan Inc.
Fax: +81-048-288-0955
