AOpen MoDT mini ITX 965 Quick User Manual

Cool Stuff is Hot Stuff, MoDT is the Right Stuff
mini ITX 965
Enable the Power of mini ITX Form Factor

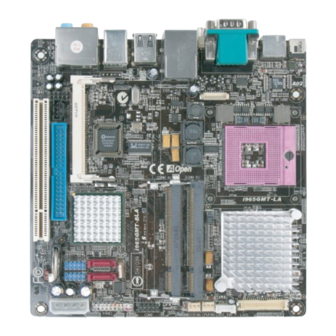

i965GMt-LA
Energy
Silent AV
Saving
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
Accessories List
DC Adaptor CPU Fansink
CPU Fansink Glue IDE Cable
DVI to D-Sub
AOpen Bonus CD
Converter
S-VIDEO to S-VIDEO to
MoDT Flex 965 EIG
YPbPr cable YPbPr cable
Part No.: 49.8ET08.0010 Doc. No.: I965GMT-EG-E0709A
19V DC Adaptor
Front audio Connector
CD audio in Connector
32-bit PCI Expansion slot x1
IDE Connector
S-ATA II Connector
USB2.0 Connectors
JP14 CMOS clear Jumper
Thermal
Front Panel Connector
4 pin DC Power output Connector
Com2 Connector
Installing By Yourself
IO Bracket
2. Installing CPU Fan
& System Fan
S-ATA Cable &
S-ATA power Cable
3. Installing Memory
Module
Power Cord
(Optional)
4. Installing HD,
CD-ROM and
SATA Disk, etc
4-pins Power Cable
(1 to 2ML)
5. Connecting Front
Panel Cable
S/PDIF in Connector
MoDT is initiated by AOpen since 2004
COM1 port
Connector
S-Video-out DVI port
Mini PCI slot
BIOS
Intel ICH8M
Battery
1. Installing CPU
6. Installing PCI Card
RJ45
LAN Jack PS/2 Mouse
USB 2.0 ports PS/2 Keyboard
connector
12. Installing Drivers & Utilities
11. Installing Operating System
(such as, Windows Vista)
8. Connecting Power Adaptor
7. Installing Other Devices
(USB, Front Audio, etc)
Line In (S/PDIF In)
Rear SUR (S/PDIF Out)
Speaker Out
Center/Subwoofer
MIC-In
Side SUR
VGA 2 Connector (Option)
Chrontel 7307C DVI DEC
(i965GMt-LA), Chrontel 7307B
DVI + LVDS DEC (Option)
Standby LED
Socket P Support Intel Core 2
Duo (Merom) and Celeron CPU
200-pin SODIMM x 2
Support DDRII 533/667MHz,
Maximum to 4GB
Intel GM965
CPUFAN Connector
LVDS_INV Connector (Option)
24 bits LVDS Connector (Option)
SYSFAN Connector
10. Loading Default
BIOS, Setting CPU
Frequency
9. Connecting Back Panel
Ports (Keyboard,
Mouse, etc)
