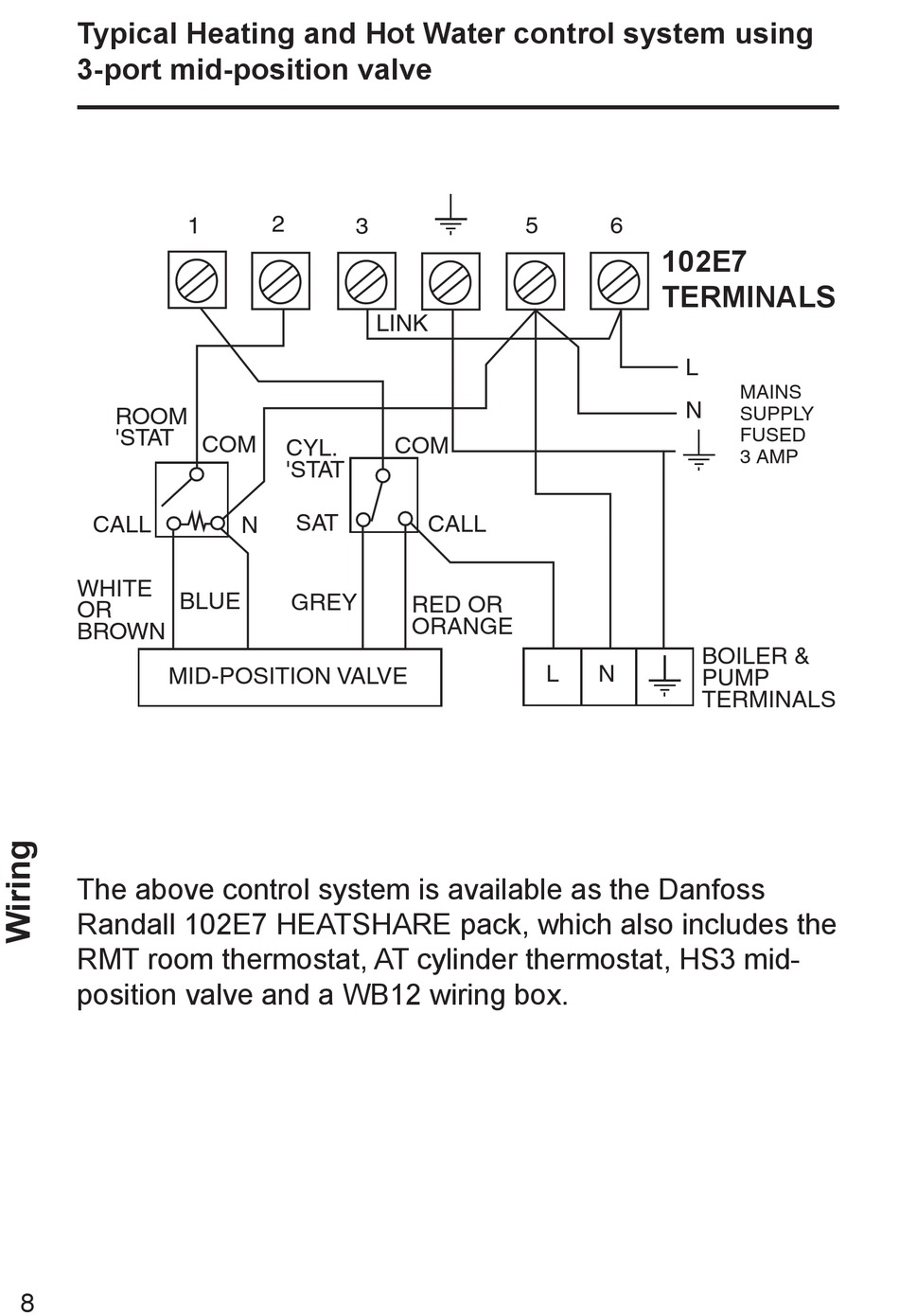

Typical Heating and Hot Water control system using
3-port mid-position valve
1
ROOM
'STAT
CALL
WHITE
BLUE
OR
BROWN
MID-POSITION VALVE
The above control system is available as the Danfoss
Randall 102E7 HEATSHARE pack, which also includes the
RMT room thermostat, AT cylinder thermostat, HS3 mid-
position valve and a WB12 wiring box.
8
2
3
COM
CYL.
'STAT
SAT
N
GREY
5
LINK
COM
CALL
RED OR
ORANGE
6
102E7
102E5
TERMINALS
TERMINALS
L
N
BOILER &
L
N
PUMP
TERMINALS
MAINS
SUPPLY
FUSED
3 AMP
