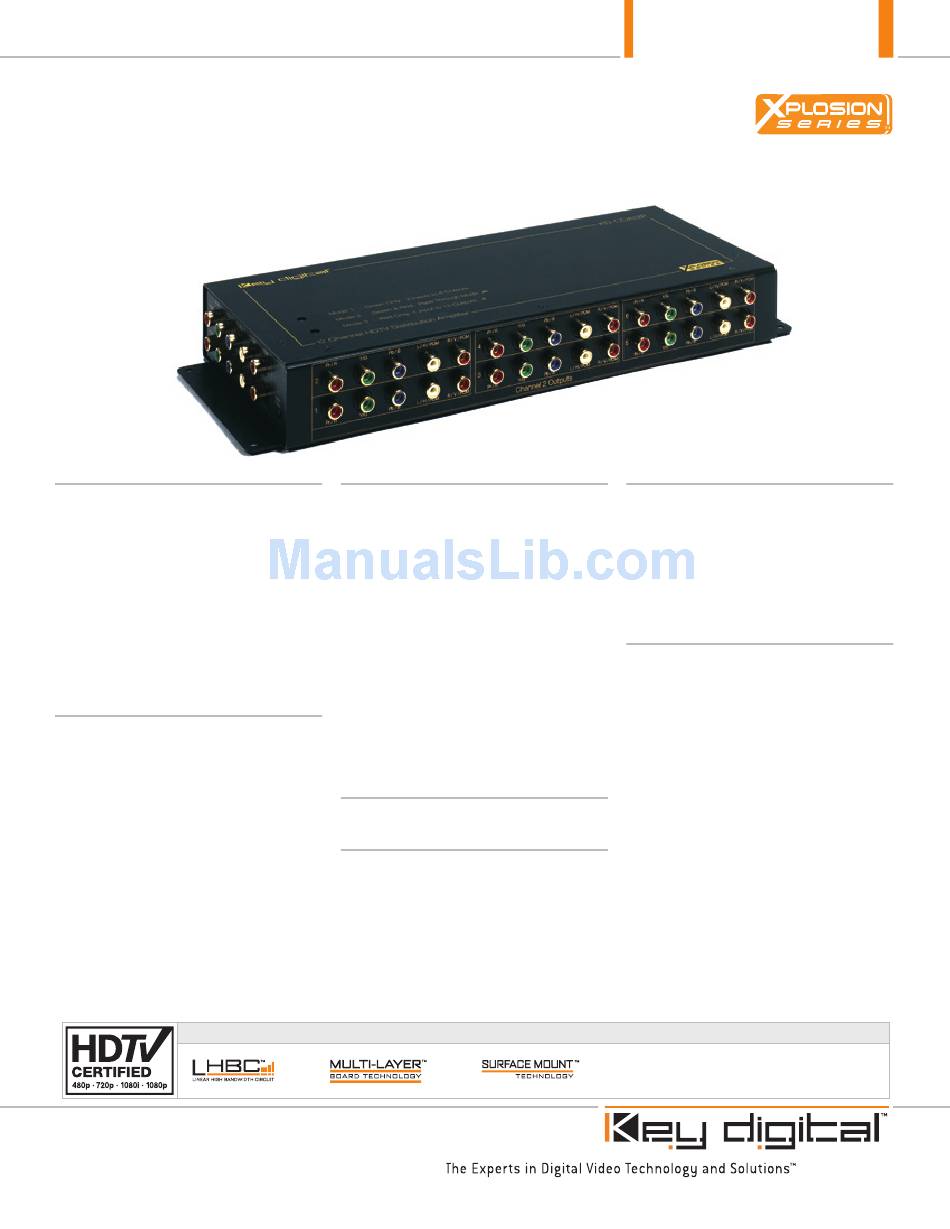

Key Digital Xplosion Series KD-CDA12P Specification Sheet

KD-CDA12P
KD-CDA12 is a 12 Channel Component/RGBHV Video/Audio Distribution Amplifier
General:
12-channel component video distribution with simple
›
plug-and-play operation, can drive up to 12 monitors or two
independent sets of 6 monitors
Crystal-clear video, with cable runs up to 300 feet long
›
Supports all HD and SD video formats, 60 Hz and 50 Hz
›
Supports Left and Right analog stereo, or digital PCM audio
›
distribution
Cascadeable, so you can easily expand and future-proof your
›
system
Added feature: distribute only composite video to as many as
›
34 composite video displays
Inputs:
One (1) Input group, each consisting of five (5) RCA connectors
consisting of independent HDTV/SDTV Component Video
(YPrPb) plus two channels of audio L&R:
Video:
›
Standard YPrPb (YCrCb) 1 volt p-p 75 Ohm terminated
➔
Component Video
Analog Audio:
›
Standard "line" type high impedance two-channel, Left
➔
& Right
Digital Audio:
›
o Each L or R could be used for PCM digital audio
➔
Key Digital
521 East 3rd Street, Mount Vernon, NY 10553
:: ::
Phone 914.667.9700 Fax 914.668.8666
::
Web www.keydigital.com
Outputs:
Twelve (12) Output groups, each consisting of five (5) RCA
connectors consisting of independent HDTV/SDTV Component
Video (YPrPb) plus two channels of audio L&R:
Video:
›
Standard YPrPb (YCrCb) 1 volt p-p 75 Ohm terminated
➔
Component Video
Analog Audio:
›
Standard "line" type high impedance two-channel, Left
➔
& Right
Digital Audio:
›
Each L or R could be used for PCM digital audio
➔
Can be configured for 3 modes:
›
1x12 terminated
➔
2x6 terminated
➔
1x12 loop through
➔
Bandwidth:
Video bandwidth: - 3 dB @ 300 MHz
➔
Cable Recommendation:
Each run of YPrPb cable MUST be the same length
➔
(300' max.)
Exclusive Technologies
®
Specification Sheet
Orientation/Mounting Information:
Cables attach to all 4 sides of the unit
›
The unit may be oriented horizontally, or mounted vertically
›
on a wall
Use 2 #8 or M4 screws to hang the unit (keyhole slots are
➔
provided on the base of the unit)
If installing into sheet-rock or hollow walls, provide proper
➔
screw support with bolts or sheet-rock anchors
Mechanical:
Size: 12-3/16" x 5-1/8" x 1-13/16"
›
Weight: 3.5 lbs.
›
Enclosure Type: Metal, and the top and bottom of the unit
›
have no vents
Power: +/- 5V DC, 110-120 VAC, 60Hz (7 watts)
›
No other power adapter can be used with this unit
➔
