- Page 1 EXZ330e IP66 IR Mini Bullet Camera 700TVL 3-Axis High Resolution User’s Manual V2.0 Copyright © EverFocus Electronics Corp, Release Date: November, 2012...
- Page 2 Cautions 1. Do not install the camera near electric or magnetic fields. 2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. 3. Try to avoid facing the camera toward the sun. 4.
-
Page 3: Package Contents

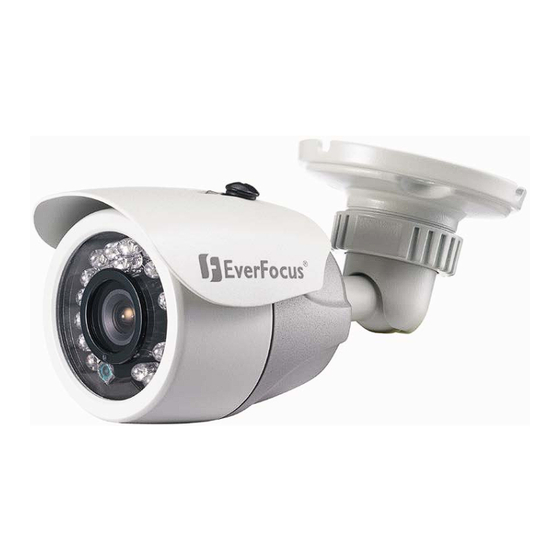

EXZ330e 1. INTRODUCTION Benefitted from Sony Effio-E platform, the EXZ330e delivers 700 TVL video by using 1/3” Sony Exview HAD CCD II 960H sensor. Featured with a stylish design and low profile luxury color, the camera provides extraordinary video performance. The embedded 24 IR LEDs provide up to 20m (~65ft.) viewing range in low light or complete no light environment. -
Page 4: Cable Definitions
EXZ330e OVERVIEW No Name Description Sunshield Protect the camera from the direct rays of the sun. Bracket Lock Loosen / tighten the bracket lock knob for adjusting Knob camera angles. 3-Axis Bracket For adjusting the camera angles. CABLE DEFINITIONS 12V DC+ (Black / White) -
Page 5: Specifications
EXZ330e DIMENSIONS 56mm / 2.2" 131mm / 5.16" 62mm / 2.44" 142mm / 5.59" 2. SPECIFICATIONS Pickup Device 1/3" SONY Exview HAD CCD II (960H) Video Format NTSC or PAL (depends on model selected) Picture Elements 1020 x 508 (NTSC), 1020 x 596 (PAL) -
Page 6: Installation
EXZ330e 3. INSTALLATION 1. Paste the supplied mounting template onto a desired location on the wall and then drill the three cross marks. For ceiling-mount installation, you can ignore this step. 2. Drill a hole on the wall / ceiling if you want to wire the cables through the wall. - Page 7 EXZ330e 4. Connect the camera to the 12V DC power source using the supplied Power Adapter Pigtail or a power adapter. 5. Connect the camera to a DVR or a portable monitor using the Video-Out cable. 6. Access the camera live view to adjust the camera angles.
-
