LAN interface, 2-port

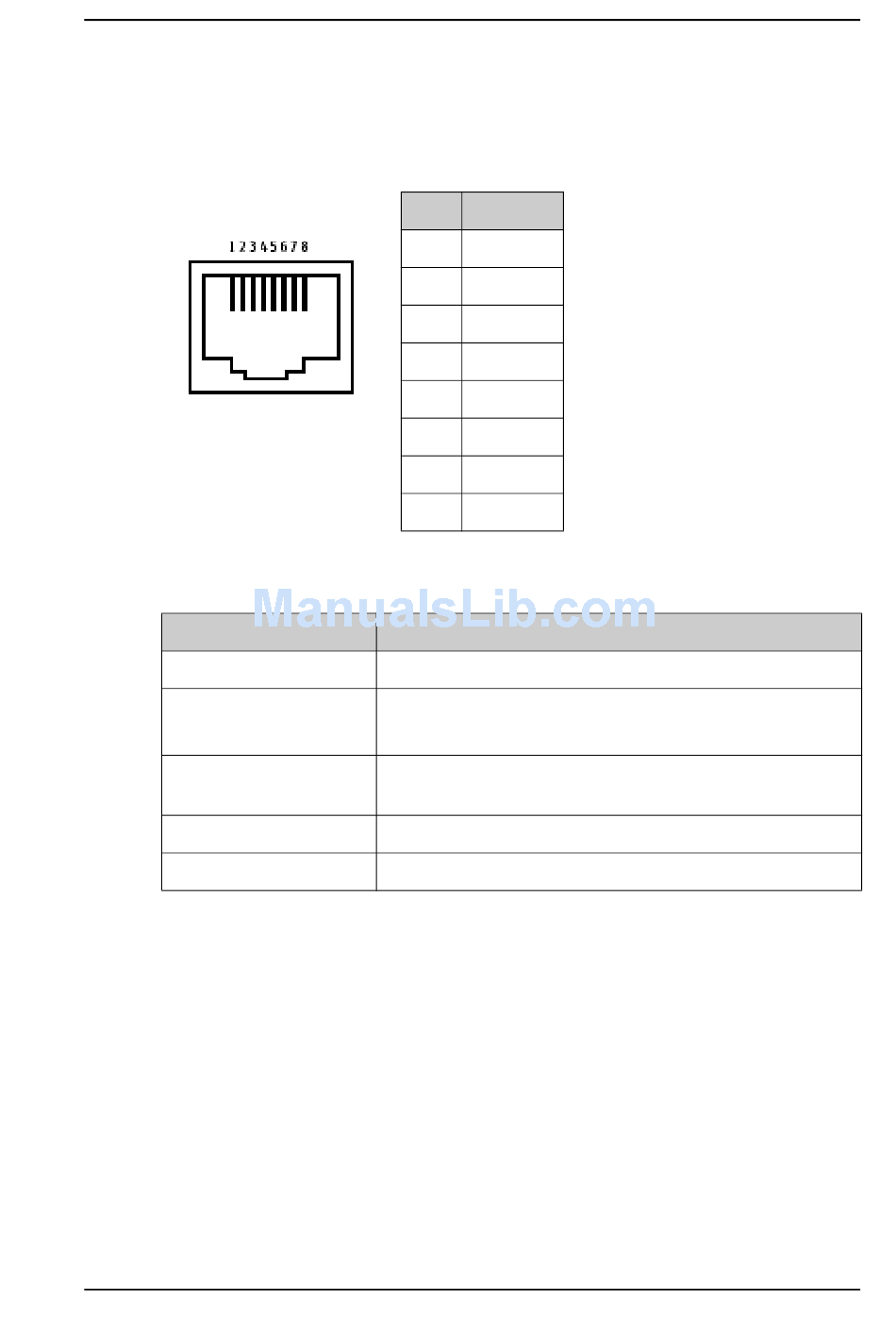

Connector pin-out
RJ-45 Connector
Female (Receptacle)
Specifications
Item
Number of connectors
Connector type
Standard
Max. data rate
Max. cable length
98-140012-B
Pin Function
1 Rx+
2 Rx-
3 Tx+
4 NC
5 NC
6 Tx-
7 NC
8 NC
Specification
2
RJ-45, female, Auto cross-over MDI/MDI-X
(IEEE 802.3 10/100BaseT)
ISO/IEC 8877:1992 and
IEEE 802.3 1998 Edition
10/100 Mbps
100 m / 328 ft with Cat5 UTP
Interfaces specifications
Appendix A: Technical specifications
