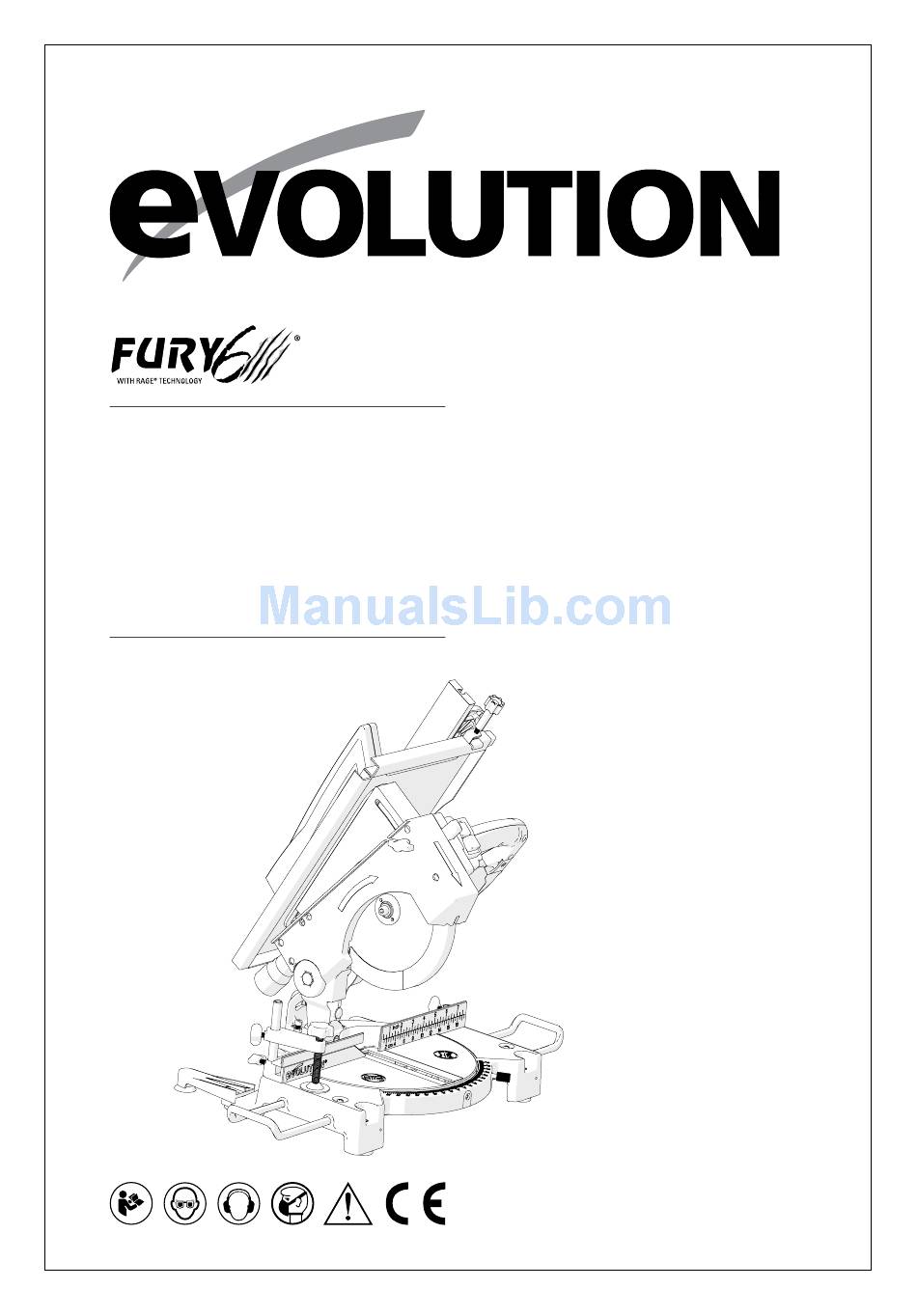

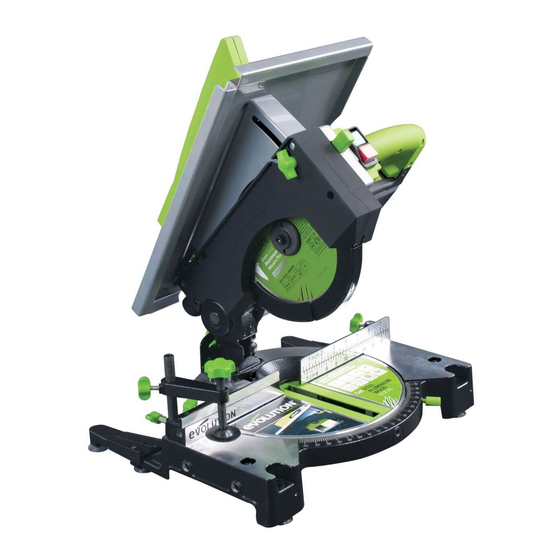

- Page 1 ® 210mm TCT Multipurpose Mitre / Table Saw Original Instructions Read instructions before operating this tool. 16.04.12_V9 www.evolutionfury.com...
- Page 2 www.evolutionfury.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS EC - Declaration of Conformity Important Information 12 Month Limited Warranty Instruction Manual Read instructions before operating this tool. General Safety Rules Additional Specific Safety Rules Safety Labels and Symbols Machine Overview 12-13 Operation Mitre Saw Operation Table Saw Maintenance Environmental Protection Service Parts Diagram... -
Page 4: Ec - Declaration Of Conformity
EC - DECLARATION OF CONFORMITY We, manufacturer and importer Evolution Power Tools Ltd. Venture One Sheffield S20 3FR Declare that the product Part numbers: EVOLUTION FURY 6 Evolution: TABLE MITRE SAW Complies with the essential requirements of the following European Directives: 2006/42/EC –... -
Page 5: Important Information
IMPORTANT In no event shall Evolution Power Tools be liable for loss or damage resulting directly or Please read these operating and safety indirectly from the use of our merchandise instructions carefully and completely. or from any other cause. Evolution Power... - Page 6 not use tools for purposes not intended; for 19. Stay alert. Watch what you are doing, example do not use circular saws to cut tree use common sense and do not operate the limbs or logs. tool when you are tired. 8.
-
Page 7: Additional Specific Safety Rules
16. Select saw blades in relation to the or other part that is damaged should be material to be cut. Use only genuine carefully checked to determine if it will Evolution or Evolution recommended operate properly and perform its intended accessories. function. Check for misalignment or binding 17. - Page 8 22. Never stand on this tool. Serious ADDITIONAL SAFETY ADVICE injuries could occur if this tool tips over and CARRYING YOUR TABLE MITRE SAW you come into contact with the saw blade. 23. Reduce the risk of unintentional Safety Advice starting.
-
Page 9: Safety Labels And Symbols
SAFETY LABELS & SYMBOLS WARNING: Do not operate machine if warning and/or instruction labels are missing or damaged. Contact Evolution Power Tools for replacement labels. Symbol Description Volts Amperes Hertz Speed Alternating Current No Load Speed Wear Safety Goggles Wear Ear Protection... - Page 10 FURY 6 TABLE MITRE SAW SPECIFICATION Designed to cut: Mild Steel Wood Aluminium Plastic Technical Data Motor (230V ~ 50 Hz) (Watts) 1200 RPM No Load (min 3500 Recommended Maximum Duty Cycle (Minutes): Weight (kg): 9.45 Blade Dimensions - Multipurpose TCT...
- Page 11 Assembly Your Evolution Power Tools saw is shipped complete. Remove all contents from the box and inspect to ensure no damage was incurred during shipping, and that the items listed below are included. Items Supplied DESCRIPTION QUANTITY Instruction Manual Hold Down Clamp...
-
Page 12: Machine Overview
LH VIEW OF FURY 6 MITRE SAW CONFIGURATION 1. CUTTING HANDLE 8. FENCE 2. ROTARY TABLE 9. HOLD DOWN CLAMP 3. RETRACTABLE LOWER BLADE GUARD 10. STABILISING ARMS (X2 Back of machine) 4. BLADE 11. CUTTING HEAD RELEASE LEVER 5. BEVEL LOCKING LEVER 12. - Page 13 LH VIEW OF FURY 6 TABLE SAW CONFIGURATION 1. ON/OFF TRIGGER SWITCH 8. PUSH STICK (Inside handle) 2. ON/OFF LATCHING SWITCHES 9. MOUNTING HOLE (2 at the front and 2 under the stabilising arms) 3. CUTTING HANDLE 10. CUTTING HEAD LATCHING PIN 4.
- Page 14 GETTING STARTED M8 x 75 WARNING: ALWAYS DISCONNECT THE SAW FROM THE POWER SOURCE BEFORE MAKING ANY ADJUSTMENTS. Refer to the “Service Parts Diagram”. Install a blade as detailed in the “Installing or Removing the Blade” section. NOTE: We recommend that the operator reads the ‘Important Information’...
- Page 15 NOTE: When the machine is re-positioned the operator should ensure that none of the rubber feet become detached from the machine. The rubber feet can, in some circumstances, stick to some surfaces due to vacuum suction. If any of the rubber feet become detached or damaged they must be replaced.
-
Page 16: Operation Mitre Saw
TO CONFIGURE THE FURY6 FOR USE AS A MITRE SAW WARNING: Only carry out this procedure with the machine disconnected from the power source. Caution: The Fury6 has many built in safety features and safety interlocks. It is important Fig. 4 that the following instructions, and those found on the label attached to the machine table are read, understood and acted... - Page 17 Workpiece Supports can be very useful in providing extra support for long workpieces when using the Fury6 in Mitre Saw configuration. HOLD DOWN CLAMP (Fig. 9) A Hold Down clamp is supplied with the Fury6. Two sockets (one on either side) are incorporated into the rear of the machines fence.
- Page 18 2. Preparing to make a cut • Avoid awkward operations and hand positions where a sudden slip could cause fingers or hands to move into the blade. • Cut only one workpiece at a time. • Clear everything except the workpiece and related support devices away from the blade before commencing operations.
- Page 19 6. Mitre Cutting Any angle from 45 left to 45 right is available, and a protractor scale can be found to the front of the Rotary Table. Positive stops are provided for every 5 angular movement. NOTE: The rotary table must always be locked Fig.
- Page 20 To adjust the fence: • Loosen the thumbscrew. (Fig 14) • Slide the upper portion of the fence to the required position and tighten the thumbscrew. • Lower the Cutting Head to check the path of the blade. Ensure there is no interference with any other parts of the machine.
-
Page 21: Operation Table Saw
TO CONFIGURE THE FURY6 FOR USE AS A TABLE SAW WARNING: Do not cut metal or metallic materials when the machine is configured as a Table Saw. WARNING: Only carry out this procedure with the machine disconnected from the power supply. Fig. - Page 22 FENCE ASSEMBLY (Fig. 19) The Fence Assembly consists of two (2) main parts: • The Angle Gauge. • The Rip Fence Face Plate. height NOTE: The ‘T’ slot in the Rip Fence Face Plate is not centrally located. • Slide the Rip Fence Face Plate onto the Fig.
- Page 23 • Tighten the Angle Clamping Screw. • Adjust the Angle Gauge Pointer if necessary to point exactly to the 90 index mark. • Use a #2 Phillips Head screwdriver to loosen the Angle Pointer fixing screw. (Fig. 22) Adjust the pointer to suit and then retighten the fixing screw.
-
Page 24: Maintenance
NOTE: Check that the Rip Fence is locked in position and is parallel to the saw blade. Check that the riving knife is properly aligned with the saw blade. When ripping small section material a Push Stick should be used to feed/guide the final 300mm of the material past the blade. - Page 25 (Fig. 27) slightly using an allen key. When correct alignment is achieved tighten the fixing screws. NOTE: Use only a genuine Evolution Riving Knife, as this is a dedicated component for this machine. Non genuine parts could be dangerous. If in any doubt, Fig.
- Page 26 NOTE: The 5mm blade slot at the lower front of the Cutting Head (Fig. 30) provides extra clearance when manoeuvring the blade into or out of the machine. To refit: • Ensure that the blade is suitable for this machine. •...
- Page 27 If adjustment is required: NOTE: The Cutting Head will need to be tilted to gain access to the 0 Bevel Stop Adjustment Screw. • Loosen slightly the 0 Bevel Stop Adjustment Screw locknut. (Fig. 31) • Use an Allen Key to turn the Bevel Stop Screw clockwise or counterclockwise as required.
-
Page 28: Environmental Protection
FUSE AND PLUG REPLACEMENT Should the fuse in the main plug of your machine need replacing it should always be replaced with one of identical rating. Check the voltage given on your machine matches the supply voltage. This machine is supplied with a fitted moulded plug. - Page 29 www.evolutionfury.com...
-
Page 30: Service Parts Diagram
www.evolutionfury.com... - Page 31 www.evolutionfury.com...
- Page 32 ® UK ADDRESS: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR TEL: +44 (0) 114 251 1022 FAX: +44 (0) 114 247 3339...
