www.evolutionpowertools.com TABLE OF CONTENTS English Page 2 Deutsch Seite 30 Français Page 60 日本語 ページ 90 Neatherlands Pagina 124 Türk Sayfa 156 INTRODUCTION Guarantee Page 5 Machine Specification Page 6 Labels and Symbols Page 7 Vibration Page 7 Intended use of this Power Tool Page 8 Prohibited use of this Power Tool Page 8...
In no event shall you to validate your machine’s guarantee period via Evolution’s website by entering your Evolution Power Tools be liable for loss or details and thus ensure prompt service if ever damage resulting directly or indirectly from the use of our merchandise or from any other needed.
WARNING: Do not operate this machine • The measurement and assessment of if warning and/or instruction labels are human exposure to hand-transmitted missing or damaged. Contact Evolution vibration in the workplace is given in: Power Tools for replacement labels. BS EN ISO 5349-1:2001 and Note: All or some of the following symbols BS EN ISO 5349-2:2002.
Symbol Description WARNING: This product is a Table Saw and has been designed to be used with special Volts Evolution blades. Only use accessories designed for use in this machine and/or those recommended specifically by Evolution Power Amperes Tools Ltd.
www.evolutionpowertools.com (1.14) ELECTRICAL SAFETY (2.2) 1) General Power Tool Safety Warnings [Work area safety] This machine is fitted with the correct moulded plug and mains lead for the designated market. If the supply cord is a) Keep work area clean and well lit. damaged, it must be replaced by a special Cluttered or dark areas invite accidents.
Page 10
www.evolutionpowertools.com (2.4) 3) General Power Tool Safety (2.5) 4) General Power Tool Safety Warnings [Personal Safety]. Warnings [Power tool use and care]. a) Do not force the power tool. Use the a) Stay alert, watch what you are doing and use common sense when operating a power correct power tool for your application.
www.evolutionpowertools.com (2.6) 5) General Power Tool (2.8) WARNING: the operation of any power Safety Warnings [Service] tool can result in foreign objects being thrown towards your eyes, which could result in a) Have your power tool serviced by a severe eye damage. Before beginning power qualified repair person using only identical tool operation, always wear safety goggles replacement parts.
Page 12
Use p) Check for damaged parts. Before only a genuine Evolution riving knife as this is a dedicated component for this machine. further use of the tool, a guard or other part e) Remove adjusting keys and wrenches.
Page 13
In addition to the standard items supplied the accessories are complete. with this machine the following accessories are also available from the Evolution online If any parts are found to be missing, the shop at www.evolutionpowertools.com machine and its accessories should be or from your local retailer.
Page 15

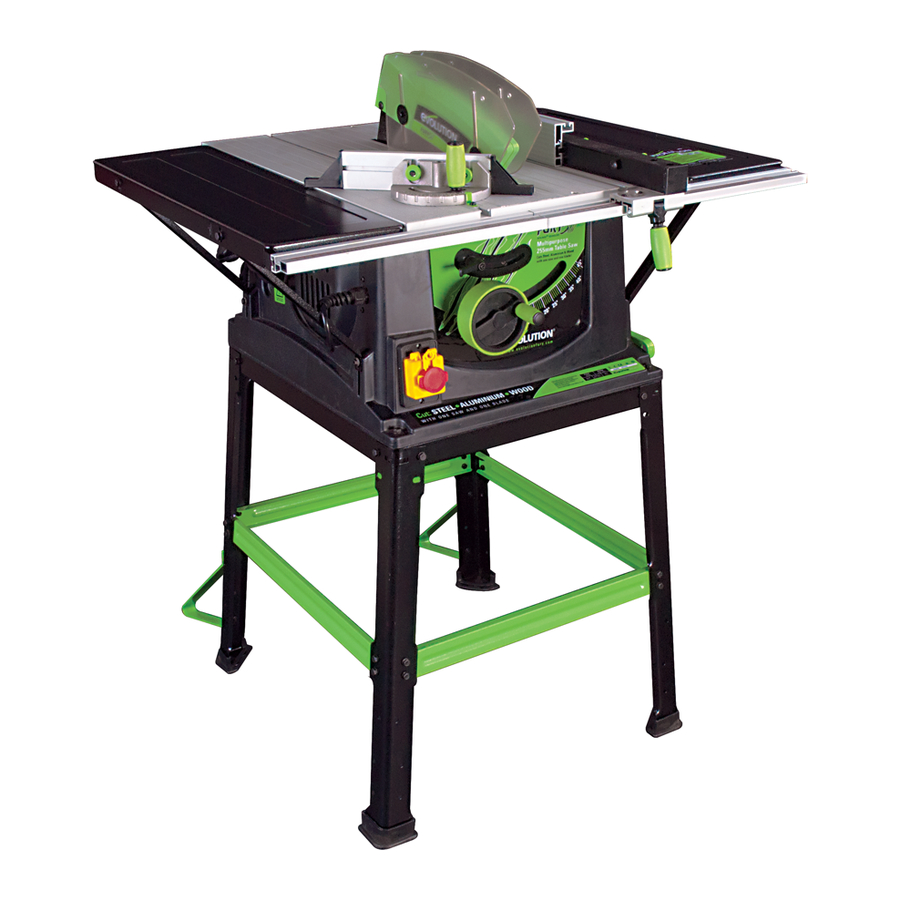

www.evolutionpowertools.com MACHINE OVERVIEW 1. FIXINGS GROUPED IN SETS 2.THE STAND COMPONENTS A: 4 X BLACK CORNER LEGS B: 4 X RUBBER FEET C: 2 X BLACK TOP CROSSPIECES (LONG) D: 2 X BLACK TOP CROSSPIECES (SHORT) E: 2 X GREEN CROSSPIECES (LONG) F: 2 X GREEN CROSSPIECES (SHORT) G: 2 X REAR CANTILEVER BRACES 3.
www.evolutionpowertools.com 1. ASSEMBLY OF THE TABLE STAND Note: This process can be considerably aided by studying the images of an assembled machine as found on the original box packaging. Eight cross-pieces are supplied (See Fig 1). The black cross- pieces are for the top of the stand, the green ones are for mid way fixing.
Page 17
www.evolutionpowertools.com 2. ATTACHING THE MAIN BODY TO THE STAND WARNING: This machine is heavy, enlist competent help when fastening this machine to its base. The main body of the saw can now be attached to the stand using the four bolts, washers and nuts provided. Ensure that the saw is attached to the stand the correct way round.
Page 18
www.evolutionpowertools.com 4. ASSEMBLING THE RIP FENCE The rip fence guide has an adjustable aluminium faceplate. For normal use this should be attached to the steel carrier of the rip fence with the deep (60mm) side in the vertical position and on the LH side of the carrier. See Fig 9. 1.
Page 19
www.evolutionpowertools.com 1. Locate the Rip Fence in the Fence Rail to the RH side of the Blade. 2. Raise the saw blade (see Operation Controls 2) 3. Slide the Rip Fence along the Fence Rail until it rests against the raised saw blade. 4.
Page 20
www.evolutionpowertools.com Note: It is recommended that the anti-bounce device is fitted only when needed (e.g. when cutting thin sheet material or thin walled metal tube etc). At other times store away off the machine for future use. The pillar of the anti-bounce device fits into the socket in the mitre gauge base, and is held in place by a set screw.
www.evolutionpowertools.com The guard should be secured to the riving knife by tightening the locating pin wingnut. The guard should be positioned so that the workpiece just slides under it, with the maximum number of teeth possible shielded by the guard. Return the guard to the original configuration when bevel, mitre or compound cutting is completed.
Page 22
www.evolutionpowertools.com Forwards and backwards adjustment of the rip fence is possible. Loosen the two finger nuts and slide the aluminium extrusion to the desired position. Tighten the finger nuts securely. Note: We recommend that normally the rip fence be adjusted so that the rear of the guide is level with the rear of the blade where it emerges from the table.
Page 23
www.evolutionpowertools.com BASIC TABLE SAW OPERATIONS WARNING: Never attempt freehand cuts on this machine. Always use the appropriate guide or fence to minimise the possibility of the blade binding and kickback. We recommend that the saw blade protrudes through the material to be cut by approximately 3mm.
Page 24
www.evolutionpowertools.com 5. Repetitive crosscutting Repetitive cutting is cutting a number of pieces to the same length without having to mark out each piece. Note: We recommend that repetitive cross-cutting is carried out with the mitre gauge positioned on the LH side of the machine, with the rip fence on the RH side of the machine.
www.evolutionpowertools.com When the ripping width is greater than 300mm, and with care, both hands can be used to guide/feed the material through the saw. The operators left hand will be to the LH side of the saw blade. The operators right hand will be close to the rip fence on the RH side of the saw blade.
Inspect the riving knife at regular intervals and replace it if it is worn or damaged. Note: Use only a genuine Evolution Riving Knife, as this is a dedicated component for this machine. Non genuine parts could be dangerous. If in any doubt, please contact the Helpline.
In accordance with EN ISO 17050-1:2004 The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR. The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
