PAR Z300 6K
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR Z300 6K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ PAR Z300 6K

Summary of Contents for ADJ PAR Z300 6K

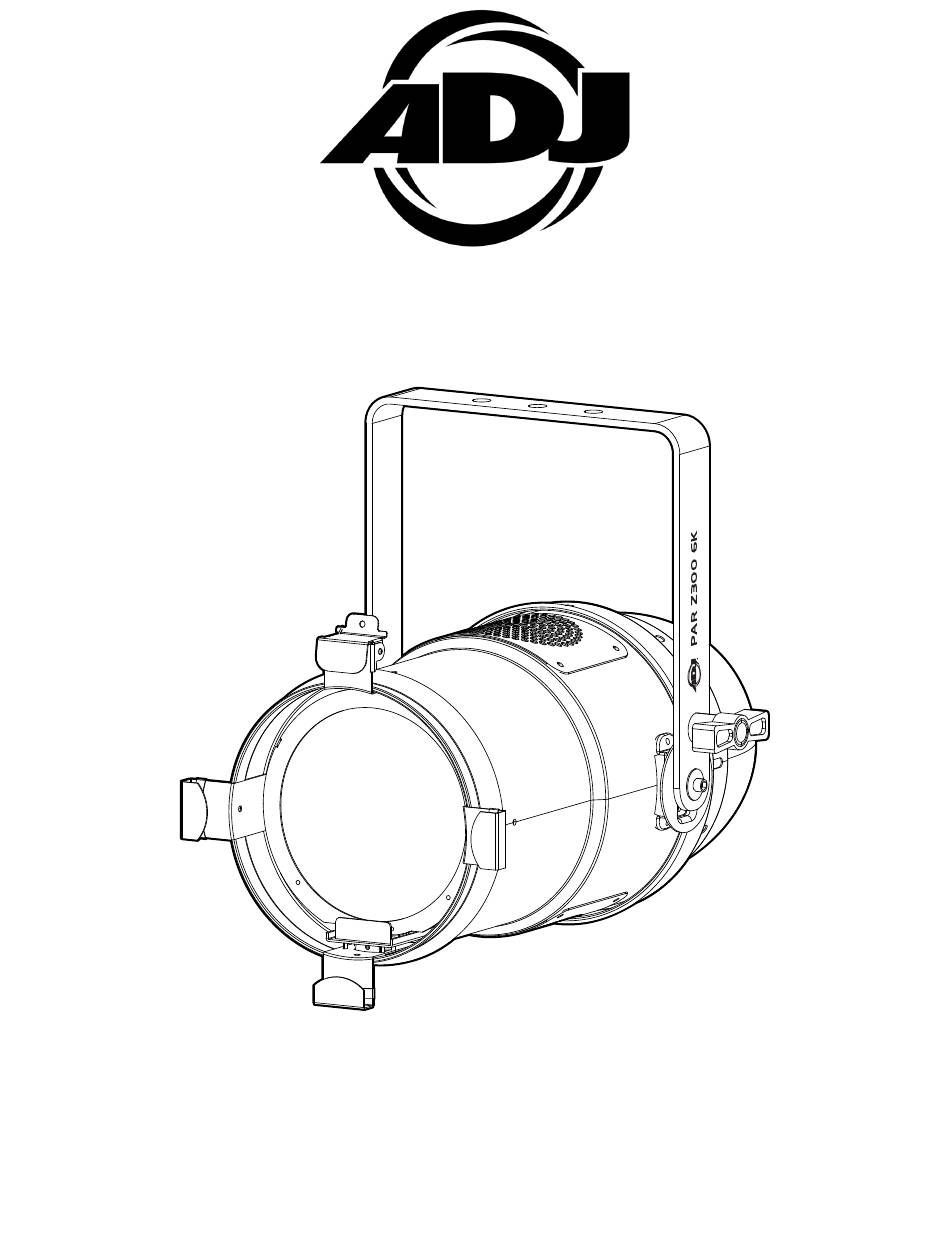

  • Page 1 PAR Z300 6K User Manual...
  • Page 2 ©2025 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3 C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Overview Installation Guidelines Accessory Installation: Gel Frame System Menu Dimmer Modes and Curves DMX Setup DMX Traits Remote Device Management (RDM) Maintenance Guidelines Specifications Dimensional Drawings Ordering Information...

  • Page 4: Box Contents

    BOX CONTENTS • Gel Frame (filter not included) • Power Cord CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | support@adj.com...

  • Page 5: L I M I T E D Wa R R A N T Y ( U S A O N Ly )

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Safety Guidelines

    This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS, LLC. is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
  • Page 8 O V E R V I E W Truss Clamp Mounting Hole Adjustable Mounting Bracket (Yoke) Gel Frame Latch Bracket Adjustment Knob Gel Frame Bracket OLED Menu Display Safety Cable Anchor Point...

  • Page 9: Electrical Connections

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 3.3 feet (1m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. WHEN POWER LINKING, ONLY CONNECT THIS FIXTURE TO OTHER FIXTURES OF THE SAME MAKE AND MODEL.
  • Page 10 I N S TA L L AT I O N G U I D E L I N E S When mounting fixture to truss, be sure to secure an appropriately rated professional grade rigging clamp to the Adjustable using an M10 screw fitted through the center hole of the Adjustable Mounting Bracket.
  • Page 11 I N S TA L L AT I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including among others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 12: Stand Mounting

    I N S TA L L AT I O N G U I D E L I N E S STAND MOUNTING This fixture can also be installed atop a tripod stand. Simply insert the threaded bolt on the top of the tripod stand through the hole in the mounting yoke.
  • Page 13 LEDs. This issue is not specific only to ADJ lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of potential damage.
  • Page 14 A C C E S S O R Y I N S TA L L AT I O N : G E L F R A M E 1. Flip open the retaining clip. 2. Slide the Gel Frame into place. 3.

  • Page 15: System Menu

    S Y S T E M M E N U The PAR Z300 6K features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. • The MODE button cycles through main menu options, or returns to the previous menu without making changes.
  • Page 16 S Y S T E M M E N U OPTIONS / VALUES (Default Settings in BOLD) MAIN MENU DMX Address 001 - 512 Channel Mode 1CH, 4CH, 5CH DMX Settings No DMX Black Out, Hold, Pri / Sec Pri / Sec Mode Primary / Secondary DMX or Aria Signal...
  • Page 17 D I M M E R M O D E S A N D C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default)

  • Page 18: D M X S E T U P

    D M X S E T U P Power Supply: The ADJ PAR Z300 6K incorporates an electronic ballast, which automatically senses the voltage when it is plugged into the power source. With the electronic ballast, this unit can be plugged in anywhere.
  • Page 19 2 and 3 of a male XLR connector (DATA + and DATA -). Insert this unit into the female XLR connector of the last unit in one’s daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
  • Page 20 D M X T R A I T S CHANNEL FUNCTION VALUE Shutter 0-31 LED off 32-63 LED on 64-95 Strobe Slow > Fast 96-127 LED on 128-159 Strobe Pulse Slow > Fast 160-191 LED on 192-223 Random Strobe Slow > Fast 224-255 LED on 0-255...

  • Page 21: R E M O T E D E V I C E M A N A G E M E N T ( R D M )

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 22: Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
  • Page 23 S P E C I F I C AT I O N S Optical: • 300-Watt, 6000K Cool White C.O.B. LED (Chip On Board) • Life expectancy: rated at 50,000 hrs. • Manual Zoom: 9°, 15°, 20°, 25°, 30°, 35° and 40° •...

  • Page 24: Dimension Drawings

    D I M E N S I O N D R AW I N G S Drawings not to scale 18.09in. [460mm] Ø8.84in. [Ø225mm] 12.92in. [328mm] 18.15in. [461mm] 20.62in. [524mm] Ø0.51in. [Ø13mm] 17.15in. [436mm] Ø7.56in. [Ø192mm] 9.76in. [248mm] 8.47in. [215mm] 5in.

  • Page 25: Ordering Information

    O R D E R I N G I N F O R M AT I O N ORDER CODE ITEM PAR869 PAR Z300 6K TRIGGER CLAMP N/A Heavy Duty Wrap Around Hook Style Clamp TOU027 5 ft. (1.5m) 5pin PRO DMX Cable...
