Summary of Contents for B&B Electronics Elinx EIR408-T

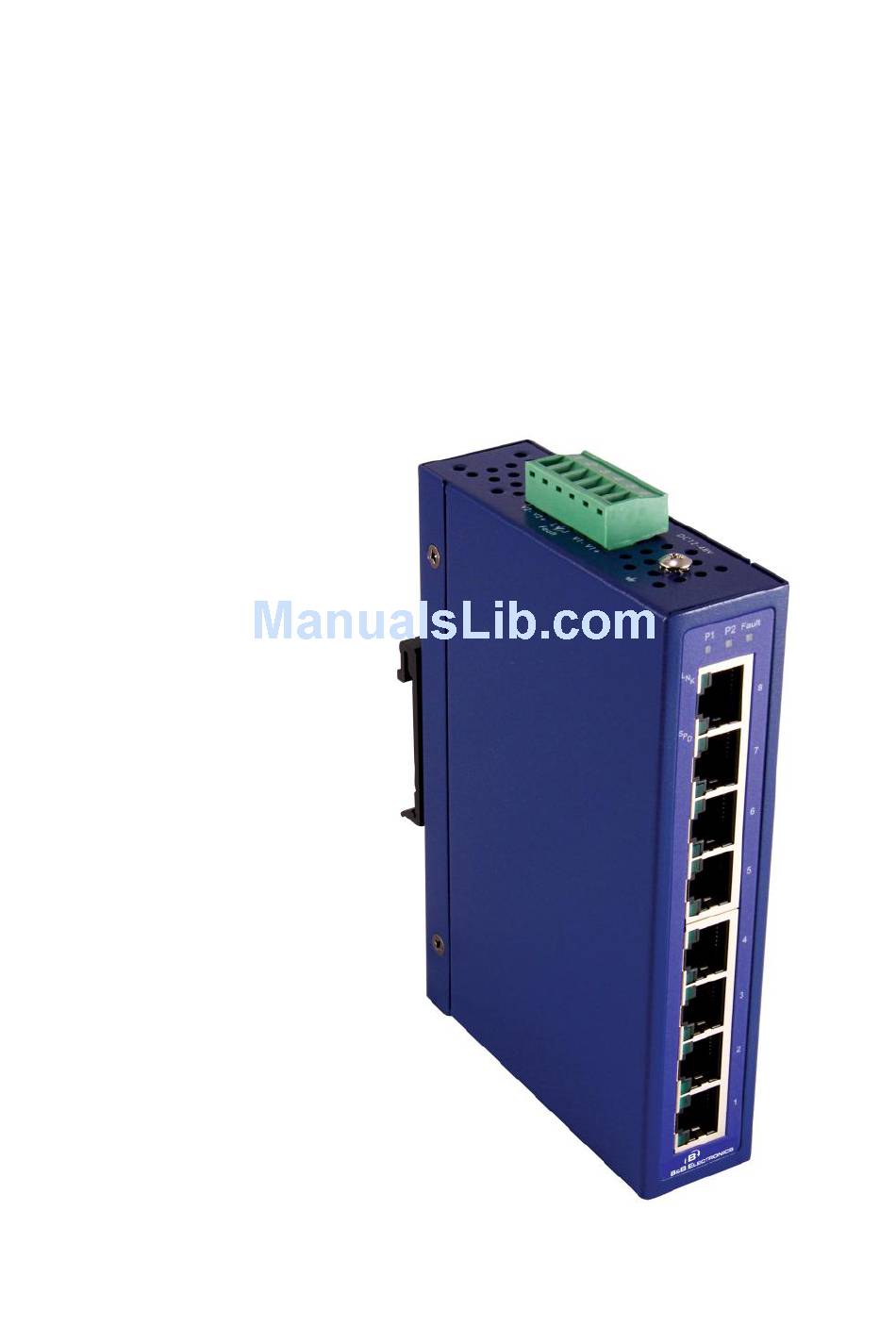

  • Page 1 Manual Elinx EIR408-T 8 Port-10/100/1000 Unmanaged Din Rail Ethernet Switch...
  • Page 2 EIR408-T Documentation Number: EIR408-T-4712m International Headquarters: 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 Website: www.bb-elec.com Sales e-mail: orders@bb-elec.com Technical Support: support@bb.elec.com – European Headquarters B&B Electronics Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 Website: www.bb-europe.com Sales e-mail: sales@bb-europe.com Technical Support: support@bb-europe.com Original –...
  • Page 3: Table Of Contents

    Table of Contents OVERVIEW ..............1 Features ....................... 2 Package Check List ..................2 HARDWARE DESCRIPTION ......... 3 Dimensions ....................3 WIRING THE POWER INPUTS ........4 LED Indicators ................... 4 RJ45 ......................5 RJ45 10/100/1000Base-T Pinouts .............. 7 10/100/1000Base-T ..................8 Cabling ......................
  • Page 5: Overview

    Overview B&B Electronics Elinx family of Gigabit Industrial Din Rail mount Ethernet switches have been designed to meet light and heavy Industrial communication requirements. High-Speed Transmissions The Industrial switch includes a controller that can automatically sense transmission speeds (10/100/1000 Mbps). The RJ45 copper ports support auto MDI/MDIX operation.
  • Page 6: Features

    Features  Provides 8 x 10/100/1000Base-T Mbps Ethernet ports.  Store-and-Forward switching architecture  Back-plane (switching fabric): 16Gbps  Provides 176Kbits memory buffer  8K-entry MAC address table  9.6K bytes jumbo frame  Supports full/half duplex flow control  Supports broadcast storm protection ...
  • Page 7: Hardware Description

    Hardware Description The following information is an introduction to the Gigabit Industrial Ethernet Switch dimensions, ports, cabling information, and wiring installation. Dimensions The dimensions of the industrial switch are 30 x 140 x 95 mm (W x H x D). The figure below gives the dimensions and views of each side of the 8-port 10/100/1000Base-T Industrial Ethernet switch.
  • Page 8: Wiring The Power Inputs

    Wiring the Power Inputs V- V+ V- V+ Note: Terminal blocks are rated for 12-24 AWG wire LED Indicators The LED indicators located on the front panel display the power and network status of the Industrial switch. Refer to the chart below for LED description and operation.
  • Page 9: Rj45

    RJ45 The RJ45 copper ports support auto MDI/MDIX operation. This feature allows network connections to computers, servers, or other switches using straight-through or crossover cables (See Figure below). Straight-through cable connections: pins 1, 2, 3 and 6, at one end of the cable, are connected straight-through to pins 1, 2, 3 and 6 at the other end of the cable.
  • Page 10 EIR408-T-4712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
  • Page 11: Rj45 10/100/1000Base-T Pinouts

    RJ45 10/100/1000Base-T Pinouts The table below describes gigabit Ethernet RJ-45 pinouts. Signal name Description BI_DA+ Bi-directional pair A+ BI_DA- Bi-directional pair A- BI_DB+ Bi-directional pair B+ BI_DC+ Bi-directional pair C+ BI_DC- Bi-directional pair C- BI_DB- Bi-directional pair B- BI_DD+ Bi-directional pair D+ BI_DD- Bi-directional pair D- EIR408-T-4712m...
  • Page 12: 10/100/1000Base-T

    10/100/1000Base-T The following two figures illustrate the 10/100/1000Base-T cable schema. Straight Through Cable Schema Crossover Cable Schema Cabling Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100Ω Category 3, 4 or 5 cable for 10Mbps connections, 100Ω Category 5 cable for 100Mbps, or 100Ω Category 5e/above cable for 1000Mbps connections.
  • Page 13: Mounting Installation

    Mounting Installation DIN-Rail Mounting The din-rail clip is factory installed with removable screws. Rear Panel of the switch DIN-rail clip EIR408-T-4712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 14: Hanging The Industrial Switch

    Hanging the Industrial Switch First, position the din-rail clip of the switch directly in front of the DIN rail. Make sure the top of the clip hooks over the top of the DIN rail. Push the unit downward. Check to see that the DIN-Rail clip is tightly fixed on the DIN rail. To remove the industrial switch from the track, reverse the steps above.
  • Page 15: Wall-Mount Plate Mounting

    Wall-Mount Plate Mounting When using the wall mount plates the din-rail clip can be removed. Place the wall-mount plates on the rear panel of the industrial switch and fasten the screws. EIR408-T-4712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics –...
  • Page 16: Hardware Installation Diagram

    Hardware Installation Diagram EIR408-T-4712m Manual Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
  • Page 17: Troubleshooting

    Troubleshooting  Do not use the power adapter with DC output higher than the power rating of the device.  Select the proper UTP/STP cable to construct your network. Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100Ω Category 3, 4 or 5 cable for 10Mbps connections, 100Ω...
  • Page 18: Technical Specifications

    Technical Specifications Communications Compatibility IEEE 802.3, 802.3u, 802.3ab IEEE 802.3x 10/100/1000Base-T Back-plane (Switching 16 Gbps Fabric) 23.8Mpps @ 64bytes Packet Throughput (Full- duplex) Transmission Distance Up to 100 m Transmission Speed Up to 1000 Mbps Broadcast Storm Rate 7,926pps (default) Limit Interface 8 x RJ-45 (8-port 10/100/1000TX)
  • Page 19 Operating Temperature -10 ~ 60 C (standard model) -40 ~ 75 C (wide operating temperature model) 5% ~ 95% (non-condensing) Operating Humidity -40 ~ 85 Storage Temperature Certifications CE EN60950-1 Safety UL/cUL Class I, Division 2, Groups A, B, C and D Hazardous Location FCC Class A, CE EN61000-4-2 (ESD)
