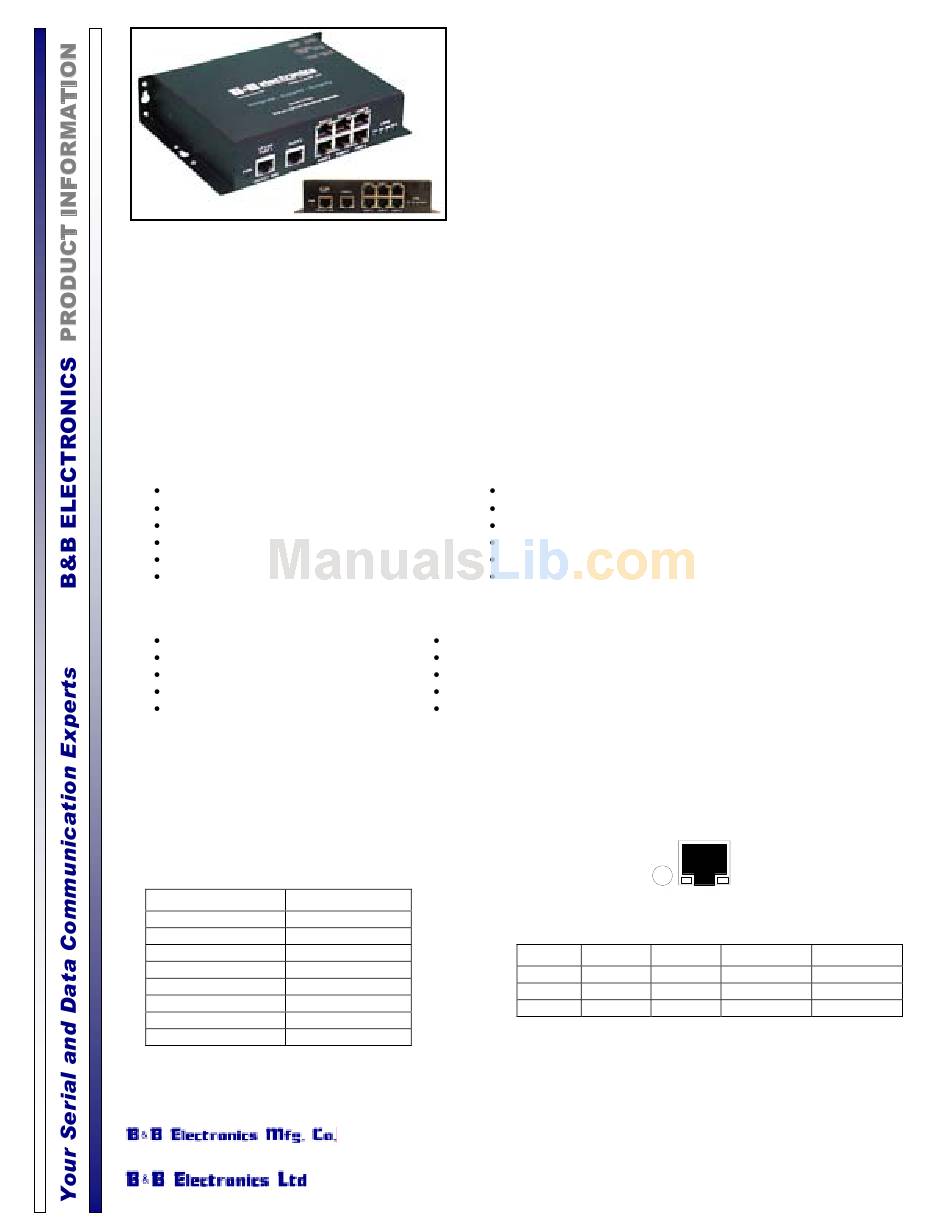

B&B Electronics EIP308 Product Information

Description
ModeI EIP308 is an 8-port 10/100 switch designed for the not-so-friendly industrial environment. The unit is housed in a
rugged metal enclosure ready to be mounted on a DIN rail or panel. The switch is an unmanaged Layer 2 switch that
provides auto MDI/MDIX crossover for easy plug-and-play applications.
LEDs indicate power, speed and link/activity for easy visual diagnostics. External power supply is connected to three 2-
position pluggable terminal blocks. A 9-30 VDC is the main power supply input. It also has a redundant 9-30 VDC for
secondary DC source. If that is not enough, 24 VAC yields the third option for power supply. B&B Electronics' power supply
model 12DC1AST (9-30 VDC @ 1000mA) is required, not included.
Features
Fully IEEE 802.3 and 802.3u compliant
8-port unmanaged Layer 2 switch
Auto detecting 10BaseT/100BaseTX
Auto MDI/MDIX crossover for plug and play
Ruggedized metallic enclosure
DIN rail mount with #DRAD35 adapters
Applications
Building automation
Ethernet I/O
Remote data acquisition
Communications gateway
PLC and operator interface
Connections
Standard RJ45 female connectors are provided. Standard RJ45 plug cables are all that is necessary to connect your
devices since the switch supports auto crossover. External power supply is connected using one of the three 2-position
pluggable terminal blocks for convenience. Table 1 shows the RJ45 pinouts and Table 2 shows the LED indicators.
Table 1
Pin Number
1
2
3
4
5
6
7
8
International Headquarters:
815-433-5100 Fax 433-5104
+353 91 792444 Fax +353 91 792445
Process control
Motion control
Environmental control
Machine monitoring
Factory floor Ethernet networks
Signal
TX+
TX-
RX+
not used
not used
RX-
not used
not used
707 Dayton Road P.O. Box 1040 Ottawa, IL 61350 USA
www.bb-elec.com orders@bb-elec.com
Westlink Commercial Park Oranmore Co. Galway Ireland
www.bb-europe.com
Model EIP308
8-Port 10/100

Ethernet Switch

Vertical or flat panel mountable
Wide power input 9-30 VDC
Redundant wide power input 9-30 VDC
24 VAC power input
Speed and link/activity diagnostic LEDs
Unique load LED's for quick network status
PWR
LNK/ACT SPD
LED Color On
SPD yellow 100
LNK green link
PWR red power
support@bb-elec.com
orders@bb-elec.com support@bb-europe.com
EIP308-1904ds - 1/2
Table 2
Off Blinking
10 reset/error
no link data
no power NA
